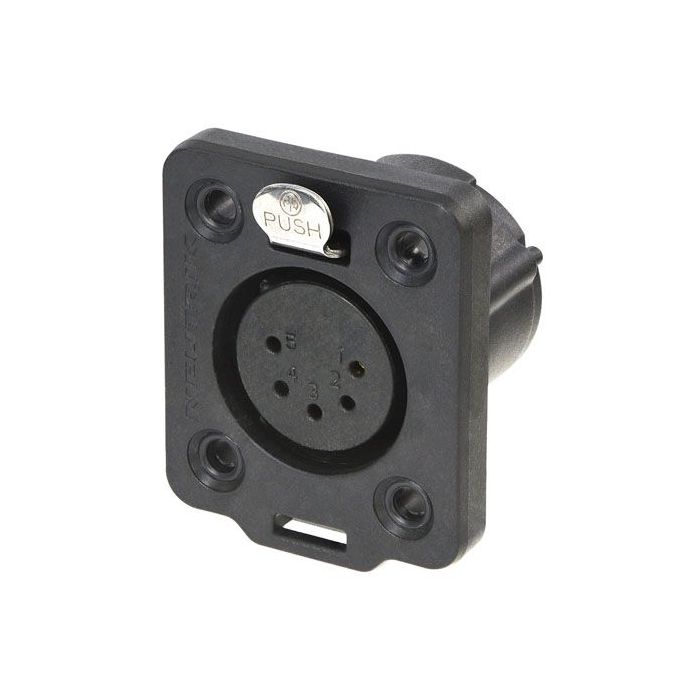

XLR 5p. Chassis Female TOP Gold contacts, Black Housing

Schrijf uw review over dit product

€ 9,89 € 8,17

SKU

NC5FDXTOP

Details

Reviews

XLR 5p. Chassis Female TOP Gold contacts, Black Housing

Nieuwe lijn True Outdoor Protection (TOP) -aansluitingen voor veeleisende buitentoepassingen. Deze nieuwe reeks omvat de populaire PowerCON TRUE1, etherCON en XLR-serie. Deze robuuste afgedichte connectoren zijn niet alleen IP-bescherming maar ook UV-bestendigheid goedgekeurd volgens UL50E.

Heavy-duty verzegelde XLR-connector voor een zware hand veeleisende omgeving
Buitenbescherming conform IP65 en UL50E Behuizingstype 3
Verzorg de verzegeling tijdens gebruik en ontkoppeld
Gebruikt high-impact UV-bestendige materialen

Specificaties

Elektrisch:
Capaciteit tussen contacten ≤ 4 pF
Contactweerstand ≤ 5 mΩ
Diëlektrische sterkte 1,5 kVdc
Isolatieweerstand> 10 GΩ
Nominale stroom per contact 16 A
Nominale spanning 50 V
mechanisch:
Bedrading Soldeercontacten
Vergrendeling Vergrendeling vergrendeling
Chassisvorm D
Materiaal:
Contacten Messing
Contact plating Goud
Insert polyamide
Shell Polyamide
Pakking TPE
Milieu:
Ontvlambaarheid UL 94 V-0
Standaard compliantie IEC 61076-2-103
Beschermingsklasse IP65, UL50E
Soldeerbaarheid Voldoet aan IEC 68-2-20
Temperatuurbereik -30 ° C tot +80 ° C
