Showtec Spectral M800 Q4 IP65 14x 5 W RGBW LED Spot - IP65

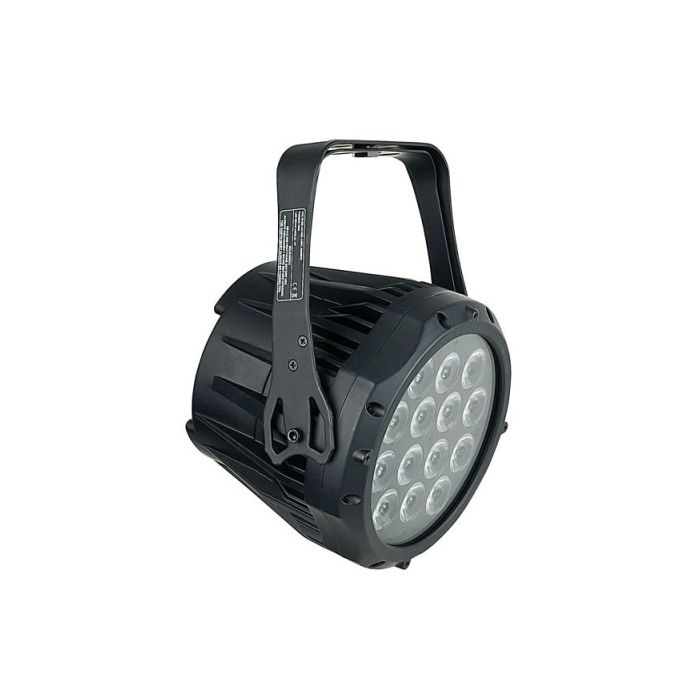

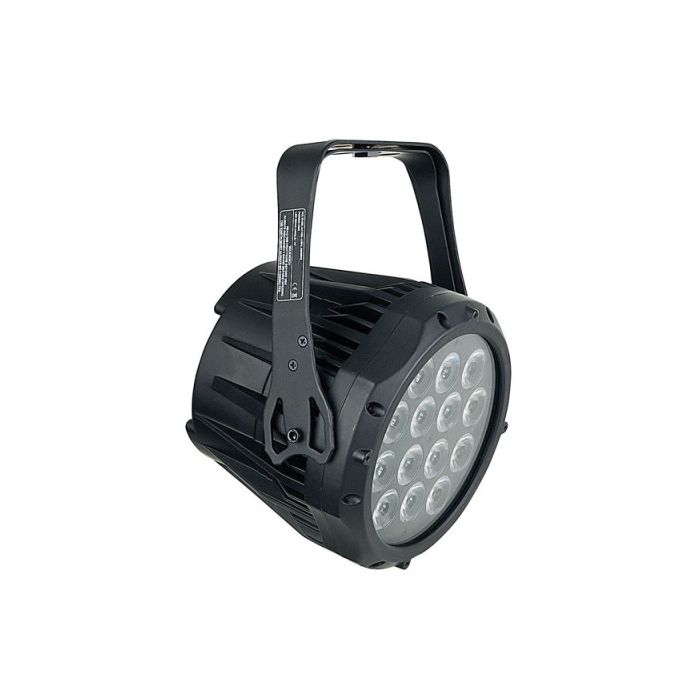

Showtec Spectral M800 Q4 IP65

• 16 bit dimming
• Roadproof Housing
• No fans, low noise
• RDM
• RGBW colourmixing

After 8 years and more than 30.000 sold fixtures the Spectral M800 has been upgraded into a true RGBW fixture. It not only helps to enrich the color spectrum but also the overall light output has been increased by 30%. With this new generation the industry standard has RDM as standard. The Spectral M800 Q4 is available in both Tour version and an IP rated version. Where the Tour version is equipped with Powercon in and output as well 3 pole DMX connectors. The IP65 version is standard equipped with Seetronic IP rated Power connectors and IP65 rated XLR connectors to ensure perfect performance in both indoor and outdoor applications.
A virtual color wheel with the most popular colors is built in and also accessible by manual control or standalone use
With the new Spectral M800 Q4 the Spectral serie is set back again as one of the most popular and reliable industry standard for professional entertainment lighting.
Specifications

Output:
Max. Flux: 1452lm
Peak Intensity: 15294cd

Light Source:
LED Qty.: 14 x RGBW
Drive Current: 350mA
Color Range: 16.7 million additive RGBW colors
with full saturation control

Electrical:
Input Voltage: AC100V~240V, 50/60Hz
Max. Power: 65W

Control:
On-board: Display for Auto and Custom control
Control Protocol: DMX512
Control Personality: Tour, TR16, ARC1, AR1.d, AR1.S, HSV
Optical System: Dimmer: 0-100%
Strobe: 0-20Hz
Optics: 16°

Physical:
Dimensions: 250 x 200 x 296 mm
Weight: 4.8kg (indoor)/ 5.2 kg (outdoor)
Housing: Die-casting aluminum
Color: Black
Fixture Connection: XLR (3-pin & 5-pin) DMX in/out,
Powercon power in/out
Cooling: Forced Convection
Operation Temperature: -40°C ~45°C (operating) / -20°C ~45°C (startup)
