Showtec Phantom 130 Spot

Showtec Phantom 130 Spot

• 7 fixed gobo's and 7 rotating gobo's
• 7 colours + white
• 8-facet circular & 5- facet linear prism
• Motorized zoom and focus

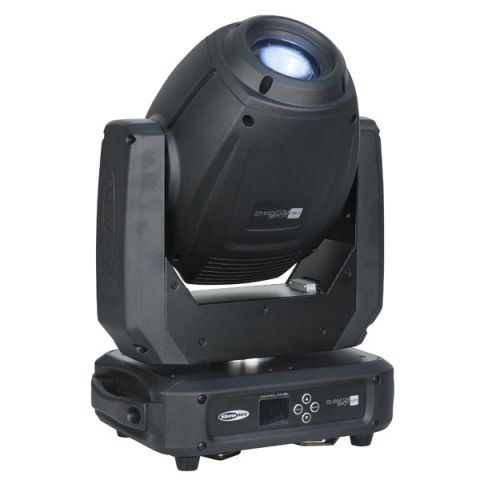

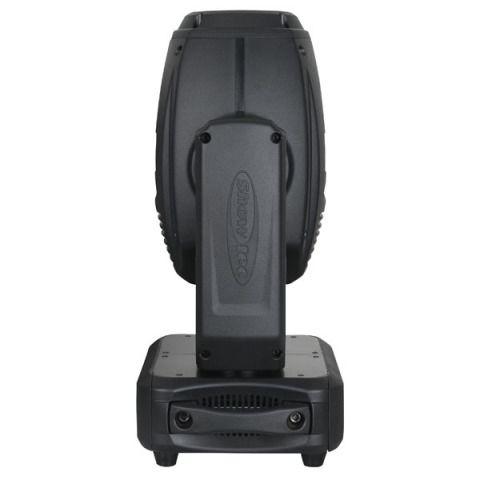

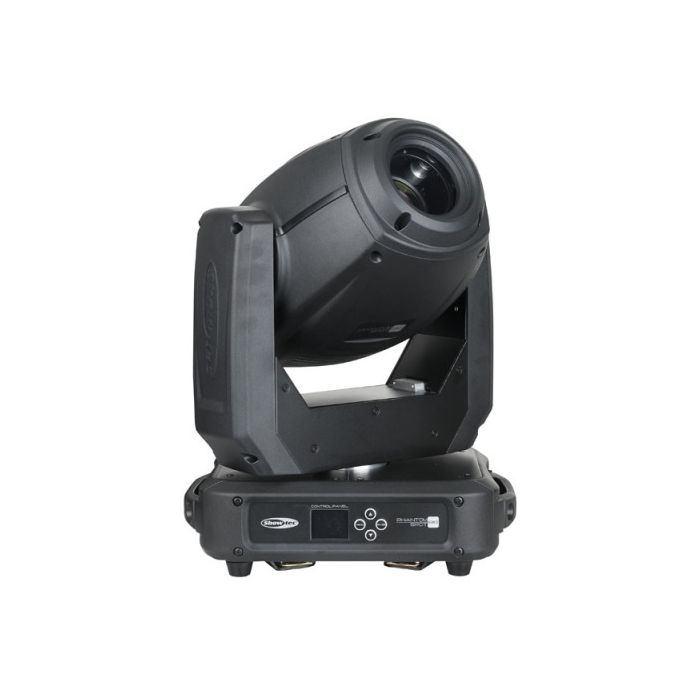

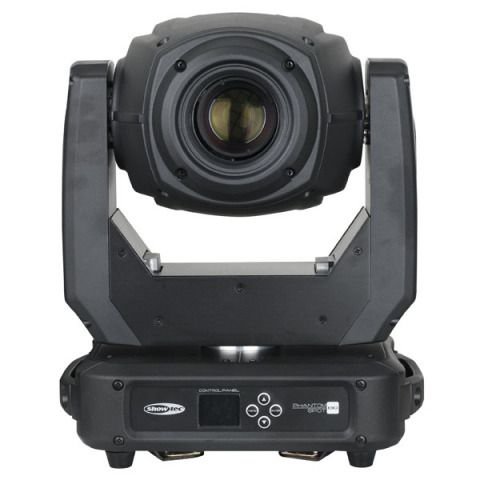

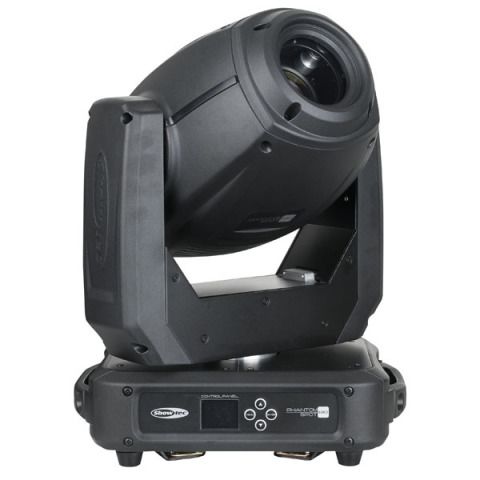

The Phantom 130 LED spot is a medium size powerful moving head with a 130 watt white LED light-source. It is equipped with a fixed gobo wheel, rotating gobo wheel, colour wheel and prism. Because of the LED source the shutter is electronic not mechanical. Focus is motorized and it has a mechanical zoom. The stylish design and lightweight housing make this moving head very attractive and ergonomic.
The Phantom series are very reliable and sustainable lighting fixtures with low power consumption and high output. The Phantom Series are going perfectly hand in hand with the lighting demands these days, and give you a total package of modern lighting fixtures such as Spot, wash, beam, matrix FX, and Hybrid. This gives you the opportunity to fill the needs of the most extensive lighting designs.

Specifications

Output
Lux @ 5m: 5200 (12°)
Beam Angle: 12° - 21°
Light Source: 130W White LED

Electrical
Input voltage: 100~240VAC, 50/60Hz (auto ranging)
Power consumption: 300W max.

Control
On-Board: Full colour display
Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave
Control Personality: Advanced 15ch /Basic 9ch

Optical system
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Zoom: Motorized
Prism: 8-facet circular & 5- facet linear prism rotating prism

Movement
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement

Gobos & Colours

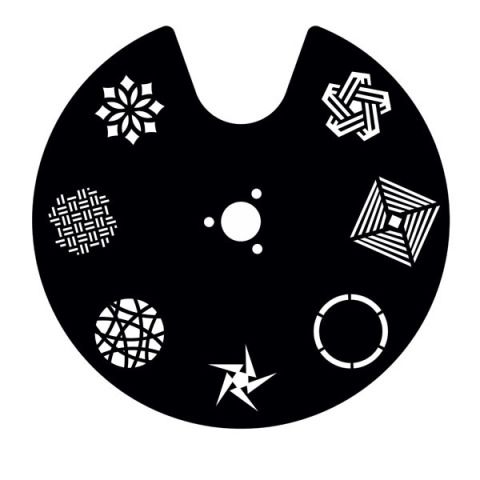

Fixed Gobowheel: 7 gobos

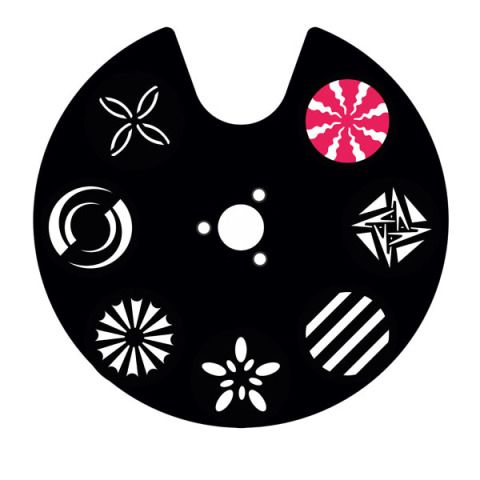

Rotating Gobowheel: 7 gobos
Gobo functions: Gobo-flow effect,Gobo shake
Rotation: Bi-directional
Colorwheel: 7 dichroic-filters + white
Colour functions: Split colours, Rainbow-flow effect

Physical
Colour: Black
Housing: Metal & Flame-retardant plastic

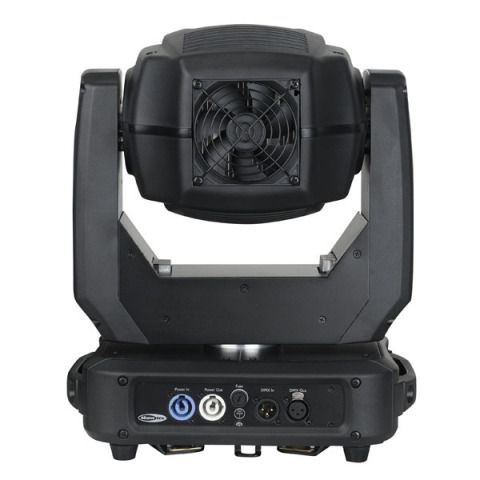

Data Connection: XLR 3&5p in- & output
Power connection: Pro Power in- & output
Dimensions (WxDxH): 321 x 211 x 462 mm
Weight: 13Kg

Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C
