Neutrik PowerCon True1 in/oulet connector locking 16A mains connector

Neutrik PowerCon True1 in/oulet connector locking 16A mains connector

• Lockable 16 A single phase connector
• Extremely robust and reliable
• Easy and reliable twist lock system

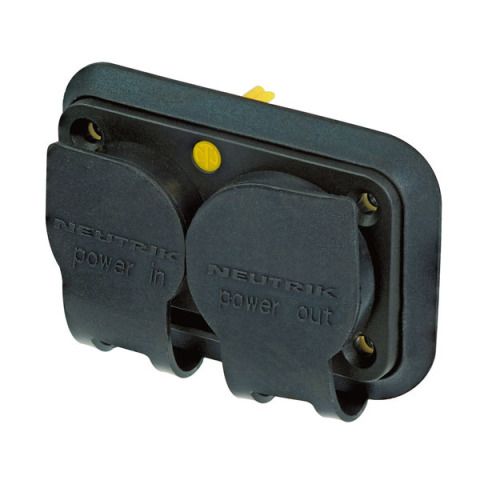

• IP65 – water resistant when sealing cover is mounted and mated with ready-made cord sets

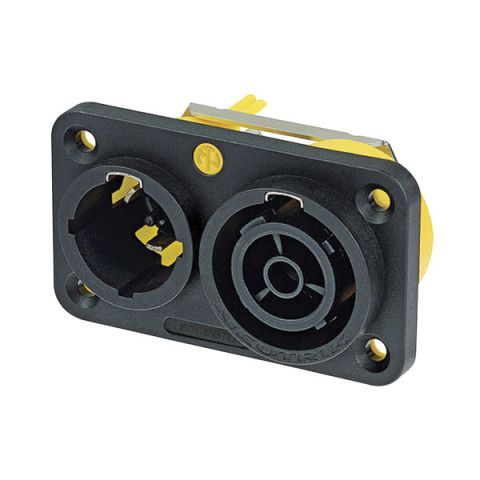

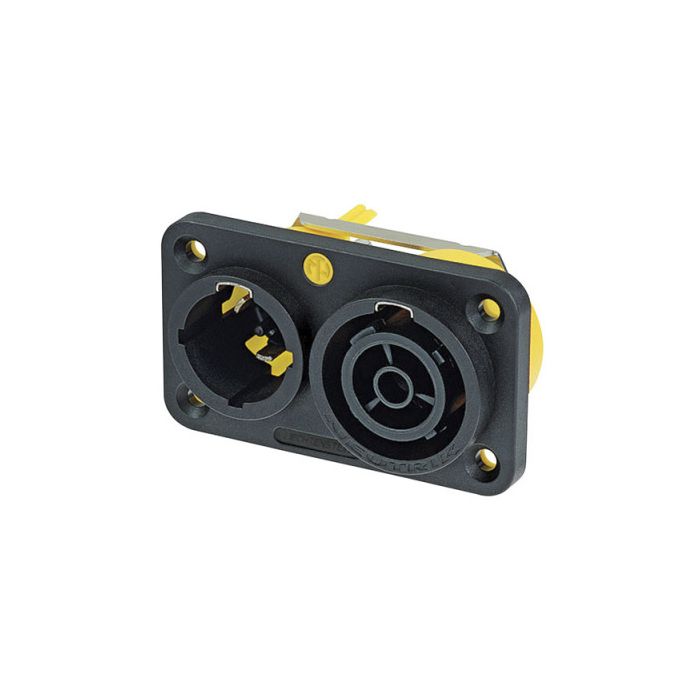

The PowerCon True1 is a locking true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCon True1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Specifications
Title: NAC3PX
Gender: male/female
Contact resistance: ≤ 3 mΩ (inner)
Number of electronical contacts: 2 + PE
Rated current per contact: 16A max
Rated maximum voltage: 250 V ac
Wiresize: 2,5 mm²
Temperature range: -30 °C to +80 °C
Optional Accessories: Sealing Cover SCNAC-PX
