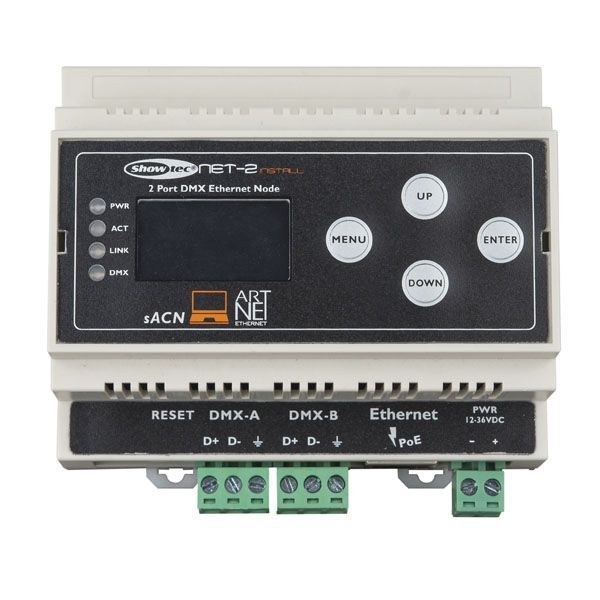

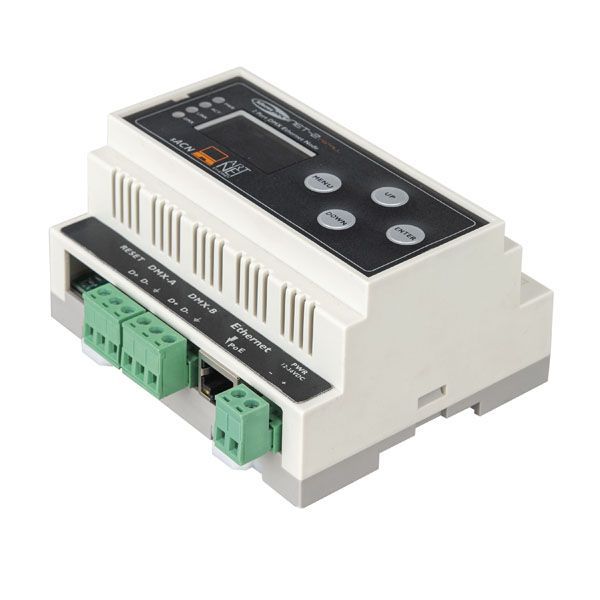

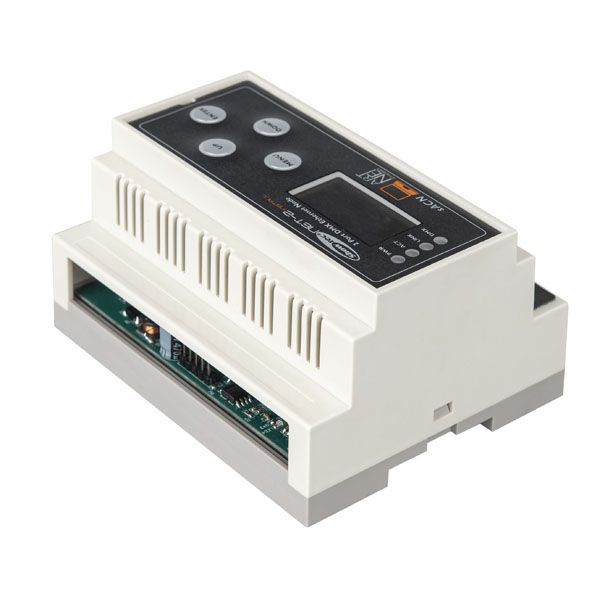

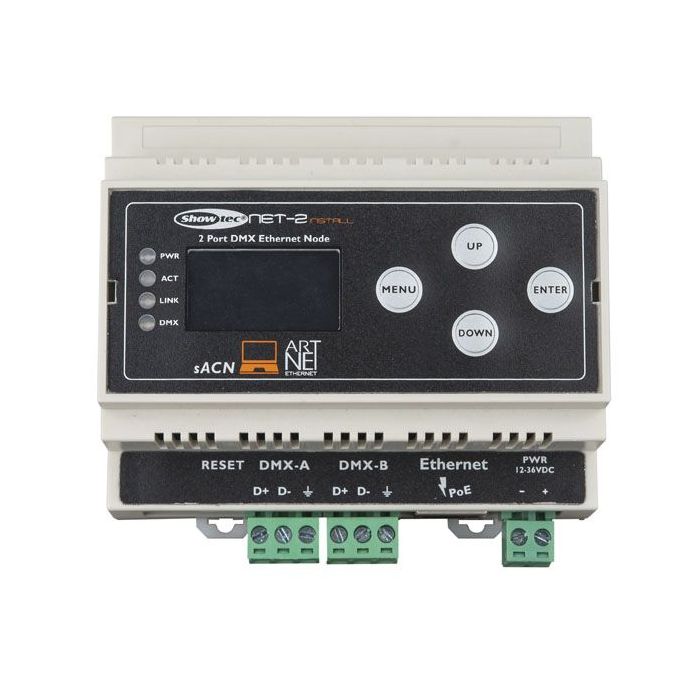

Showtec NET-2 Install Din-rail

Showtec NET-2 Install Din-rail

The Showtec NET-2 Install is the ideal compact fixed-installation node for you. All connections are easy connectable with the plug-in Phoenix terminals, and both bi-directional DMX ports are optically isolated to prevent any interference from getting hold of your signal. Power can be supplied via PoE or on the wide range DC power input. A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front or via the remote web interface which can be accessed within the network. Default login account: Admin, password: Admin. The din-rail mounted NET-2 converts ArtNET or sACN to DMX512 and back, and is ideal for network system integration projects.

Configuration examples:
- ArtNet to 2x DMX output
- 2x DMX input to ArtNet
- Clone 1 DMX inputs to 1x DMX output and Artnet
- HTP/LTP Merge 2x ArtNet to DMX output
- HTP/LTP Merge DMX input and ArtNet to DMX output
