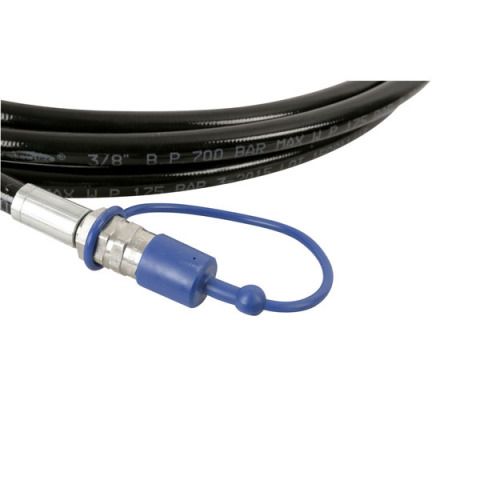

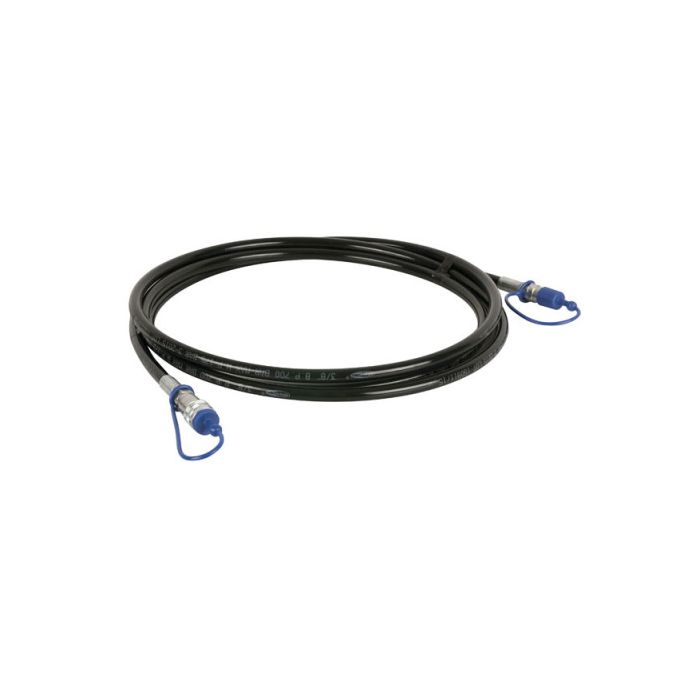

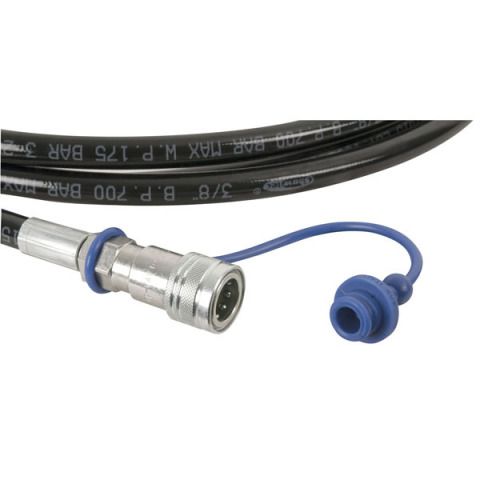

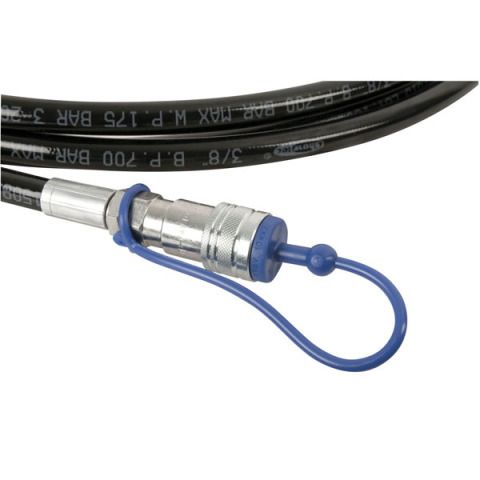

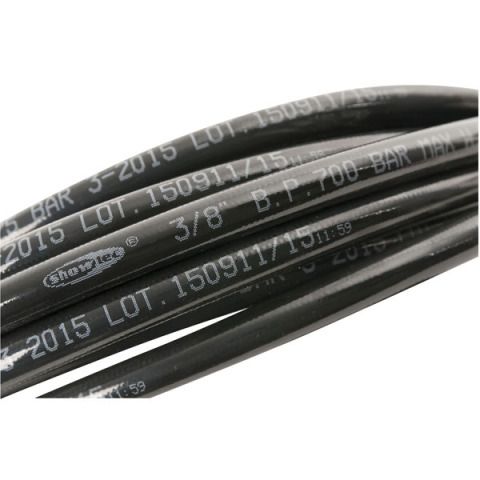

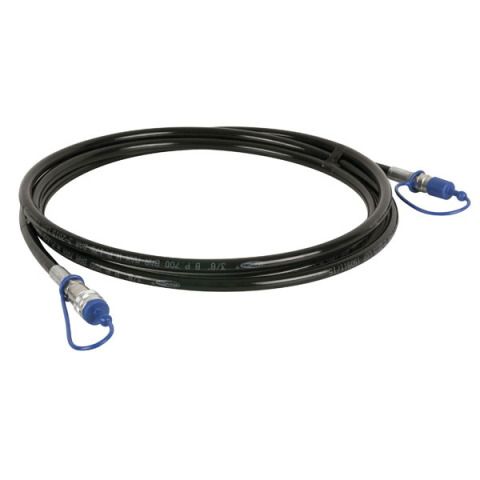

Showtec CO2 3/8 Q-Lock Hose 5m
Showtec CO2 3/8 Q-Lock Hose 5m
• Save connection
• Increases setup time
• Closed system
• Saves CO2 Gas
• Combine multiple bottles and hoses in one closed setup
The Showtec CO2 Q-Lock system is a complete range of products to create a fast and safe way to build all kinds of CO2 setups. It can be applied for both rental and fixed installations. The Q-Lock products are all are equipped with male and female quick lock couplers. They all haQ-Lockve back pressure valves to guarantee a closed and save system at all times . The Co2 Q-Lock range consist of hoses, splitters combiners a distributor and adapters. With the splitters combiners it is possible to integrate multiple shooters, FX Ice Jets or multiple bottles in one system. The adapters are used to upgrade the Showtec CO2 Ice Gun, FX Ice Jets or hoses with thread for the Q-Lock hoses.
Note: If you use Q-Lock products always make sure that your Ice Gun's and Ice Jets are prepared with CO2 3/8 Q-Lock female adapters.
Specifications
Max pressure: 175 bar / 2537 psi
Safety ratio: 1:4
Internal diameter: 9,7mm
External diameter: 16,0mm
Min. Bend radius: 60mm
Input: male QLock
Output: female QLock
Length: 5m
Weight G/m: 155gr
These hoses meet/exceed standard SAEJ517 sec. SAE100R7 - EN 855 - ISO 3949
