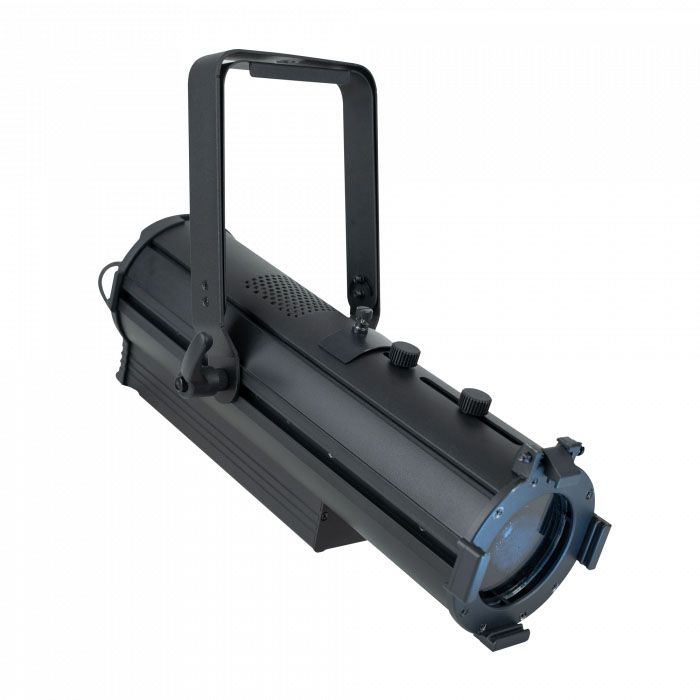

Showtec ACT Image Spot 50 CW Compacte 50W Koudwitte Projectiespot

Schrijf uw review over dit product

Aanbiedings prijs € 248,05 € 205,00 normale prijs € 423,66 € 350,13

SKU

34060

Details

Reviews

50 W koudwitte LED-goboprojector

Geschikt voor commerciële toepassingen

6000 K CCT

DMX, IR-afstandsbediening (optioneel) en handmatige bediening

4 Dimmercurves
De Showtec ACT Image Spot 50 CW is een 50-watt koudwitte LED-spot met een CCT van 6000 K en een stille werking, geschikt voor commerciële toepassingen. Hij projecteert een helder, scherp lichtveld met een instelbaar zoombereik van 16°-28° dat handmatig, via DMX of met de optioneel verkrijgbare IR-afstandsbediening kan worden ingesteld. Het is mogelijk uw eigen gobo toe te voegen aan de ingebouwde gobo-houder en deze bijvoorbeeld op een muur te projecteren. De ACT Image Spot 50 CW is uitgerust met een 0-100 % dimmer met 4 curves, regelbaar via DMX, via de optioneel verkrijgbare IR-afstandsbediening, of handmatig. Hij beschikt ook over een stroboscoopfunctie van 0-20 Hz. Een stevige beugel maakt eenvoudige montage mogelijk. Een Power Pro kabel is inbegrepen.
Source
Type lichtbron
LED
Aantal lichtbronnen
1
Vermogen lichtbron
50 W
Kleur type LED
White
Refresh rate
1100 Hz
Lux @ 2m
6672 lx
Lux @ 3m
2965 lx
Lux @ 5m
1068 lx
Lumen totaal
1743 lm
CRI
96
CCT
6500 K

Optical
Beam angle circular minimaal
152°
Beam angle circular maximaal
275°

Control and Programming
Control mode
DMX, IR, Manual
DMX kanalen
2, 3
Protocollen
DMX
Scherm
OLED
Dim curve
Linear, Square, I-Square, S-Curve
Dimmer resolutie
8 bit

Dynamic Effects
Dimmer
0-100 %
Strobe
0-20 Hz
Gobowiel index & rotatie
Yes
Gobo wiel 1
1 + Open

Electrical Specifications and Connections
Ingangssvoltage
100-240 VAC 50-60 Hz
Vermogensverbruik
57 W
Power connector in
Power Pro Blue
Power connector uit
Power Pro Grey
DMX connector
XLR 3P In/Out
DMX connector in
XLR 3P
DMX connector uit
XLR 3P

Mechanical Specifications
Hoogte (mm)
145 mm
Breedte (mm)
165 mm
Diepte (mm)
425.2 mm
Gewicht
2.8 kg
IP waarde
IP20 (indoor use only)
Behuizing
Aluminium, Aluminium die-cast
Kleur
Black

Product Properties
Koeling
Convection/Axial fan

Rigging
Montage opties
Bracket
Bevestigingspunt safety kabel
Yes

Thermal Specifications
Maximale omgevingstemperatuur
45 °C
