Showtec ACT Fresnel 50 RGBAL Compacte 50 W RGBAL Theater-LED Fresnel

Schrijf uw review over dit product

€ 399,98 € 330,56

SKU

34014

Details

Reviews

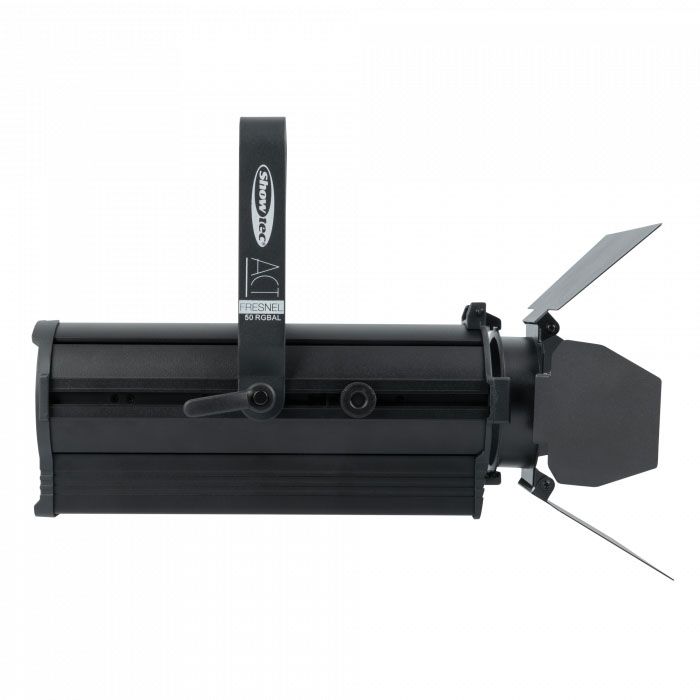

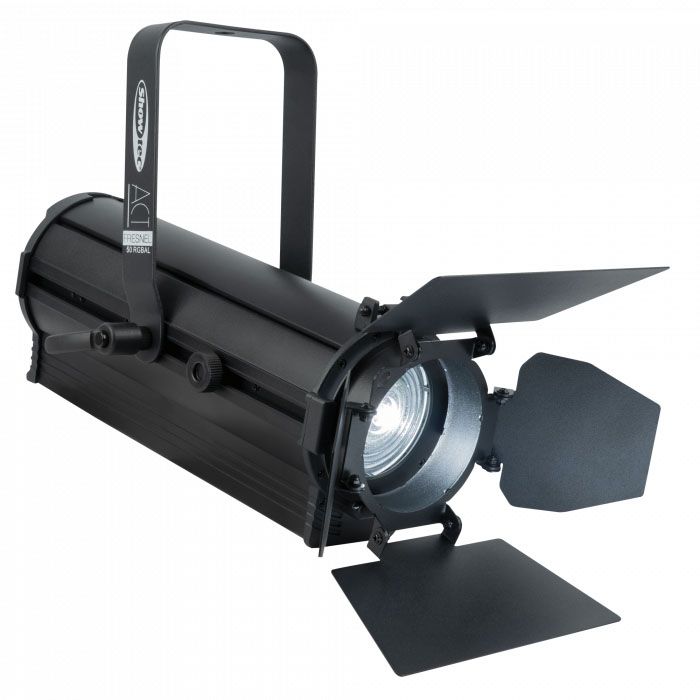

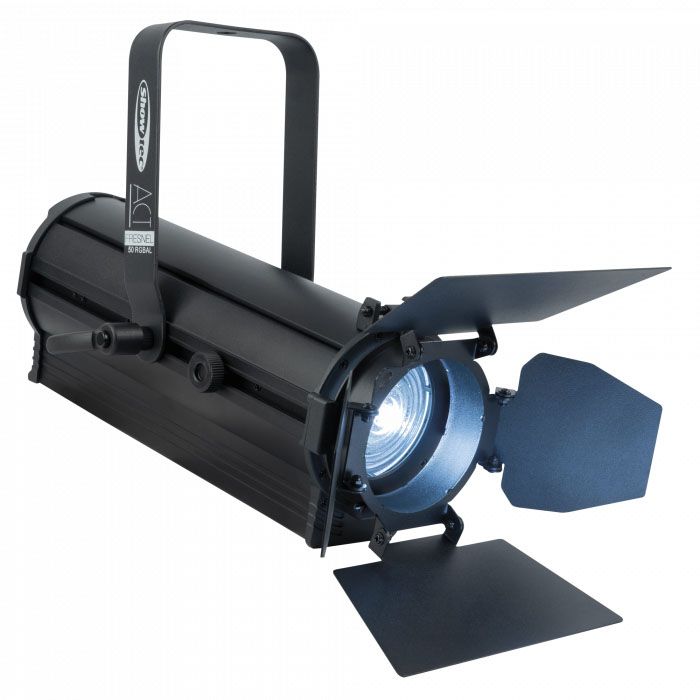

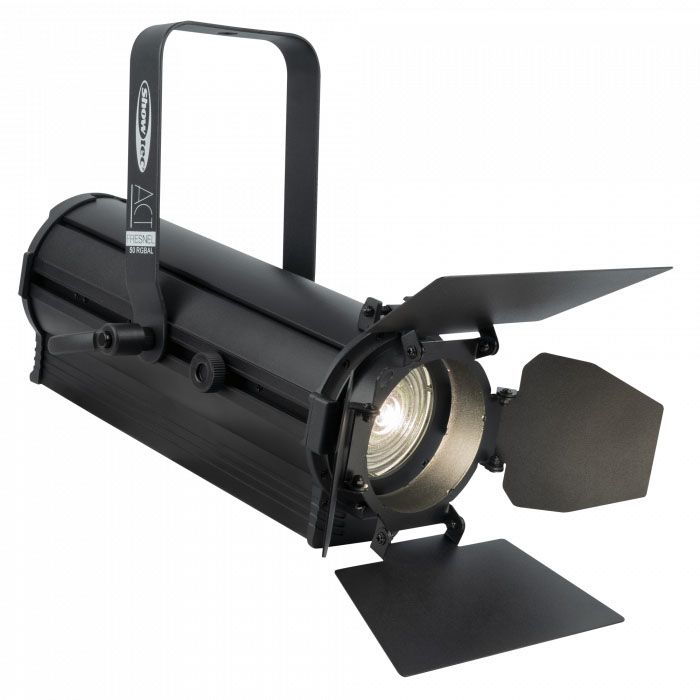

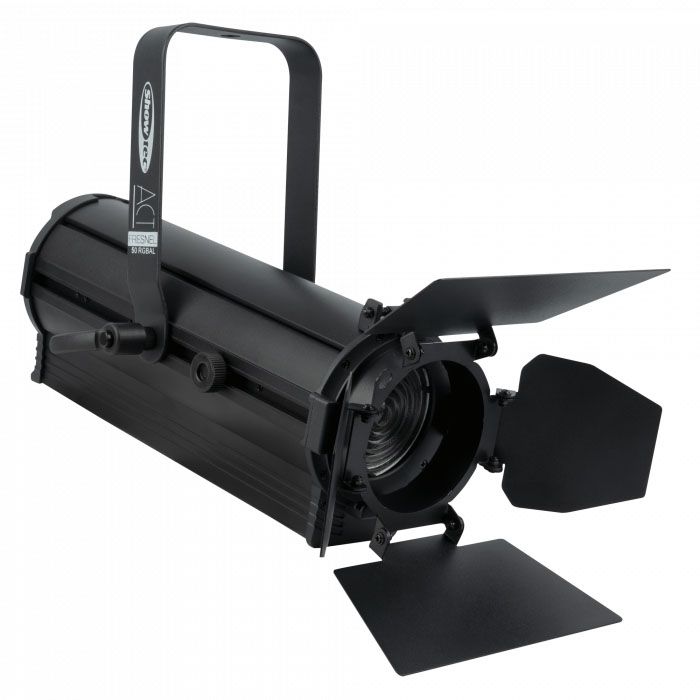

Showtec ACT Fresnel 50 RGBAL Compacte 50 W RGBAL Theater-LED Fresnel

150 W RGBAL LED voor nauwkeurige kleurweergave
Geschikt voor theatertoepassingen, musea en tentoonstellingen
Handmatige bediening van zoom, kleur en dimmer
RDM, DMX en handmatige bediening
Barndoor en filterframe inbegrepen
De Showtec ACT Fresnel 50 RGBAL is een compacte 50-watt RGBAL COB LED-spot met een hoge CRI (>93) en fluisterstille werking, geschikt voor theatertoepassingen, musea en tentoonstellingen. Hij gebruikt een RGBAL-lichtbron van 150 W om de kleuruitvoer te optimaliseren, zodat hij een breed kleurengamma kan creëren met behoud van een hoge CRI. Hij projecteert een heldere, zachte lichtbundel binnen een breed, handmatig instelbaar zoombereik van 15°-35°. De ACT Fresnel 50 RGBAL kan worden bestuurd via DMX, RDM en is uitgerust met een knop voor handmatige kleur- en dimmerregeling. Hij wordt geleverd met een barndoor en filterframe, zodat je de output zelf vorm kunt geven.
Bron
Type Lichtbron
LED
Aantal Lichtbronnen
1
Vermogen Lichtbron
150 W
LED-kleuren
RGBAL
Type Diode
5in1
Verversingsfrequentie
1200 Hz
Verlichtingssterkte op 2 m
1410 lx
Verlichtingssterkte op 3 m
627 lx
Verlichtingssterkte op 5 m
226 lx
Lichtstroom (Totaal)
952 lm
Lichtstroom (Rood)
504 lm
Lichtstroom (Groen)
958 lm
Lichtstroom (Blauw)
313 lm
Lichtstroom (Amber)
320 lm
Lichtstroom (Lime)
1024 lm
CRI
92
CCT Minimaal
2800 K
CCT Maximaal
10000 K
Optisch
Minimale Circulaire Stralingshoek
15 °
Maximale Circulaire Stralingshoek
35 °
Minimale Circulaire Strooilichthoek
30 °
Maximale Circulaire Strooilichthoek
50 °
Zoomtype
Manual
Zoomverhouding
1:2
Minimale Zoom
15 °
Maximale Zoom
35 °
Aansturing en Programmering
Aansturing
DMX, Manual
DMX-kanalen
5, 8, 12
Protocollen
DMX, RDM
Scherm
OLED
Dimcurve
Linear, Square, I-Square, S-Curve
Dimmerresolutie
16 bit
Dynamische Effecten
Dimmer
0-100 %
Strobe
0-20 Hz
Elektrische Specificaties en Aansluitingen
Ingangsspanning
100-240 V AC 50-60 Hz
Vermogensverbruik
52.5 W
Power Connector In
Power Pro Blue
Power Connector Uit
Power Pro Grey

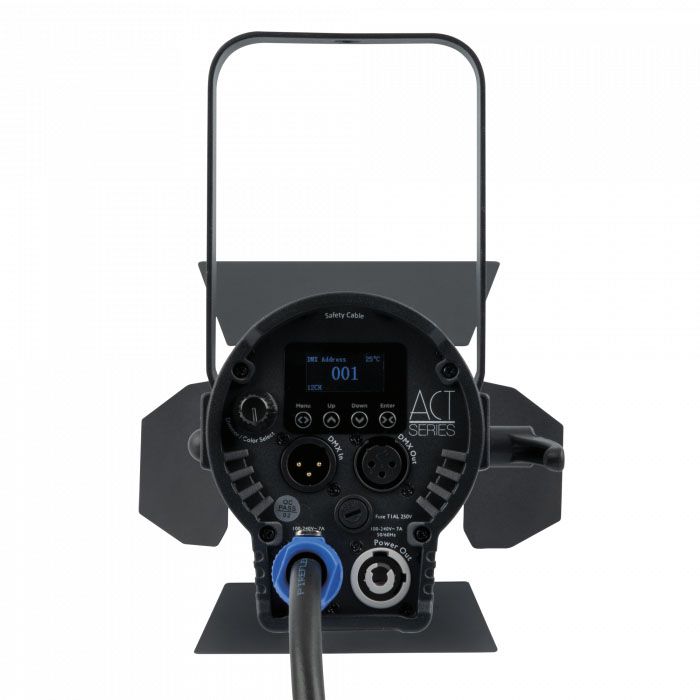

DMX-connector
XLR 3P In/Out
DMX-connector In
XLR 3P
DMX-connector Uit
XLR 3P
Mechanische Specificaties
Lengte (mm)
317 mm
Breedte (mm)
168 mm
Hoogte (mm)
263 mm
Gewicht
2.9 kg
Maximaal Geluidsniveau
36 dB
IP-waarde
IP20 (indoor use only)
Materiaal
ABS, Aluminium
Behuizing
Aluminium
Kleur
Black
Producteigenschappen
Koeling
Forced Convection
Rigging
Montageopties
Bracket
Bevestigingspunt Veiligheidskabel
Yes
Veiligheidsogen
1
Thermische Specificaties
Maximale Omgevingstemperatuur
45 °C
Inbegrepen Items
Meegeleverde Kabels
Power Pro Cable
Meegeleverde Accessoires
Barndoor, Filterframe
