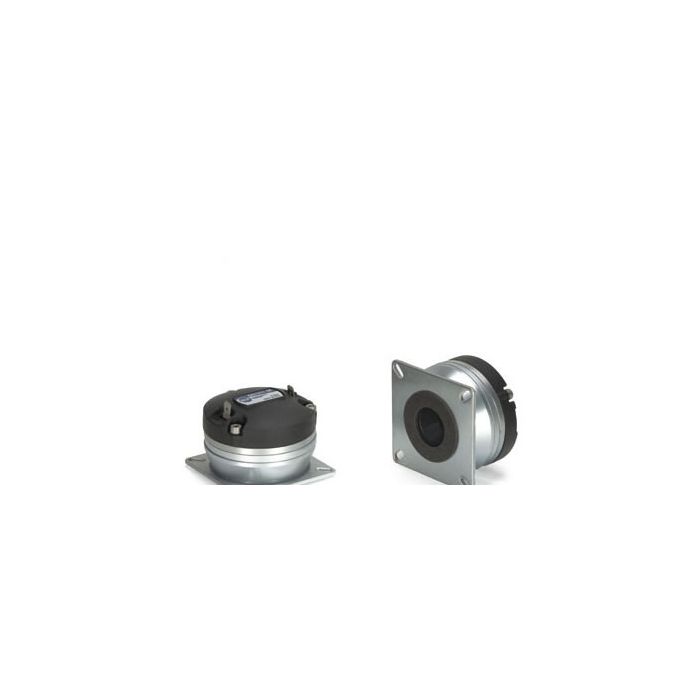

RCF Compressie driver ND1411-M, 8 ohm, 1 inch 8 ohm
RCF Compressie driver ND1411-M, 8 ohm, 1 inch 8 ohm
RCF Compressie driver ND1411-M, 8 ohm, 1 inch 8 ohm
The ND1411-M is a high performance 1.5-inch diaphragm compression driver with a 1-inch exit throat featuring a single pieces, low compression, radial phase plug.
The diaphragm and suspension are precision formed from 0.1mm thick Mylar.
The ND1411-M is a very compact size, versatile driver for professional applications.
Applications :
Compact 2 way systems
Multiple way medium throw systems
Comapct and medium size high quality line array
Very good linearity in combination with RCF HF94, HF64 and HF101 horns
1.5-inch Diaphragm, 1-inch Exit Throat
50W continuous program power handling
Frequency range: 1500Hz - 20kHz
Optimized geometry radial phase plug
Very compact size for array applications
Product type Compression driver
Brand RCF
Reference ND1411
Product code 15129019
Informations
Nominal impedance 8 ohm
Dimensional category 2.5 inch
Manufacturer sensitivity 109 dB
Nominal power handling 25 W
Bandwidth 1500÷20000 Hz
Exit dimension 1.0 inch
Datas
Flux density 1 T
Zmin 7 ohm
Dimensions
Voice coil diameter 1 inch
Outside diameter 69 mm
Depth 51 mm
Shape & Materials
Front chape Cylindrical
Magnet type Neodymium
Winding material Aluminium
Diaphragm former material Nomex
Diaphragm material Mylar
Surround material Mylar
