PSSO Set WISE TWO + 2x BP + 2x Lavalier 638-668MHz

PSSO Set WISE TWO + 2x BP + 2x Lavalier 638-668MHz
Features

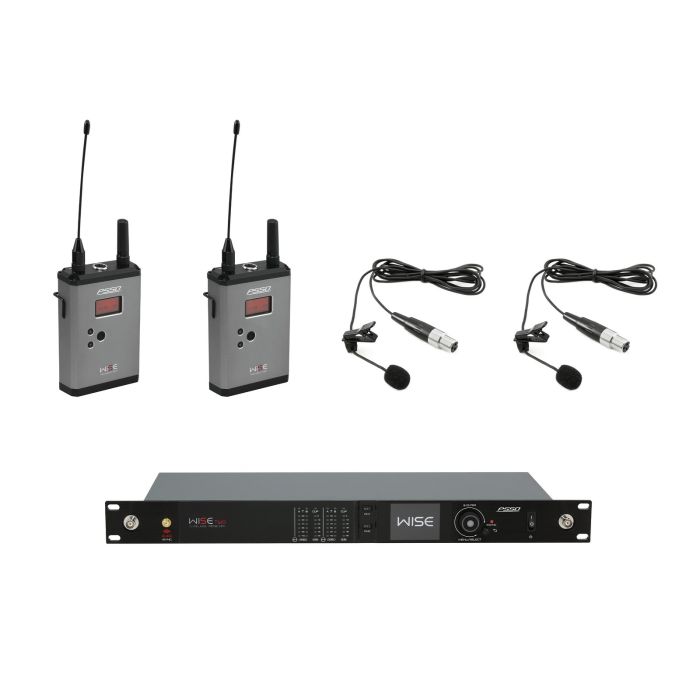

True diversity wireless receiver with 2x pocket transmitter and 2x lavalier microphone

PSSO WISE TWO 2-Channel True Diversity Receiver 638-668MHz

License-free true diversity wireless receiver with 2.4GHz iSync control management

Professional multifrequency wireless receiver with true diversity reception for stage use
High-grade components and intelligent features ensure best performance and high reliability
Ideal for large multi-channel systems (parallel operation possible up to 26 systems)
100 preset channels in 10 channel groups
2.4 GHz iSync - real-time transmitter synchronization and monitoring
Automatic frequency setup
Pilot tone technology (PLL) and noise squelch for interference-free operation
High-definition LCD color display
Multifunctional jogdial for menu settings
Lock function avoids accidental changing of settings
XLR and 6.3 mm jack output
Mic/line selector switch
Ground lift switch
2 detachable BNC antennas allow for use with external antenna divider
USB port for software updates
2 receivers can share a single power adapter
Delivery includes practical transport bag with jack cable and power adapter
Matching transmitters optionally available
483 mm rack installation possible with supplied mounting brackets
License-free and approved in large parts of the EU (please check on a country-by-country basis)
Available frequency ranges: 518-548 MHz, 638-668 MHz, 823-832 MHz and 863-865 MHz
Use a operating range up to 60m with line of sight
(19") 48.3 cm rack installation 1 U

PSSO WISE Bodypack 638-668MHz

Bodypack transmitter with PLL multifrequency transmitter

Matches receivers WISE ONE and WISE TWO
2.4 GHz iSync - real-time synchronization and monitoring through receiver
Editable user name and user color
High-definition LCD screen
RF output switchable
Gain level adjustable
Lock function avoids accidental changing of settings
License-free and approved in large parts of the EU (please check on a country-by-country basis)
Available frequency ranges: 518-548 MHz, 638-668 MHz, 823-832 MHz and 863-865 MHz
Use a operating range up to 60m with line of sight

PSSO WISE Lavalier Microphone for Bodypack

Lavalier microphone for WISE bodypack transmitter

Polar pattern: Omnidirectional

Technical specifications
Weight: 3,21 kg
PSSO WISE TWO 2-Channel True Diversity Receiver 638-668MHz
Type: Receiver
Power supply: 100-240 V AC, 50/60 Hz
12-15 V DC 1500 mA
Power consumption: 8 W
Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Number of channels: 2
Frequency range: 50 - 20000 Hz
S/N ratio: >96 dB
THD: <0,1 % at 1 kHz
Gain: Microphone -32 dB to +4 dB
Output: -32 dB to +4 dB
Display type: Multicolor LCD display
Control elements: Power switch, groundlift selector, menu, encoder
Connections: 2 x antenna via BNC (F) 12-15 V
1 x antenna via SMA (F) mounting version
Output: 2 x mic/line via 3-pin XLR
Output: 2 x mic/line via 6.3 mm jack socket (stereo) mounting version
Output: 2 x for audio/data link via BNC (F)
Chanals: Microphon chanal: 2 x mono with Mic-line switch via XLR or jack
Frequency band: UHF 638 - 668 MHz
Frequency selection: 100 Switchable frequencys
In 10 groups
Frequencies automatically scannable
Modulation: FM
Range: 60 m with line of sight
Switch: Low cut switch
Diversity: True diversity
Material: Metal
Color: Black
Housing design: (19") 48.3 cm rack installation 1 U
Dimensions: Width: 48 cm
Depth: 27 cm
Height: 4,3 cm
Weight: 2,80 kg
PSSO WISE Bodypack 638-668MHz
Type: Pocket transmitter
Power supply: 3 V DC
Battery: 2 x Mignon (AA) (not included)
Frequency range: 50 - 18000 Hz
Gain: -32 dB to +4 dB
Display type: Multicolor LCD display
Connections: 1 x Microphone via Mini XLR (F) 3-pin 5 V
Frequency band: UHF 638 - 668 MHz
Modulation: FM
RF power output: 50 mW; 30 mW; 10 mW
Range: 60 m with line of sight
Color code: Color indicator and name adjustable
Switch: On/off switch; Mute control
Material: Metal
Color: Grey
Dimensions: Width: 7 cm
Depth: 3 cm
Height: 13 cm
Weight: 190 g
PSSO WISE Lavalier Microphone for Bodypack
Type: Lavalier microphone
Power supply: 3-10 V DC
Cable length: 1,2 m
Capsule type: Electret
Polar pattern: Omnidirectional
Frequency range: 80 - 20000 Hz
S/N ratio: >58 dB
Sensitivity: -40 dB
Impedance: 1 kOhm
Connections: Via Mini XLR (F) 3-pin
Color: Black
Dimensions: Diameter: Ø 3,5 mm
Weight: 10 g
