OMNITRONIC VHF-101 Wireless Mic System 215.85MHz
€ 37,87
€ 31,30
?
SKU
st13073020
OMNITRONIC VHF-101 Wireless Mic System 215.85MHz
OMNITRONIC VHF-101 Wireless Mic System 215.85MHz
Features

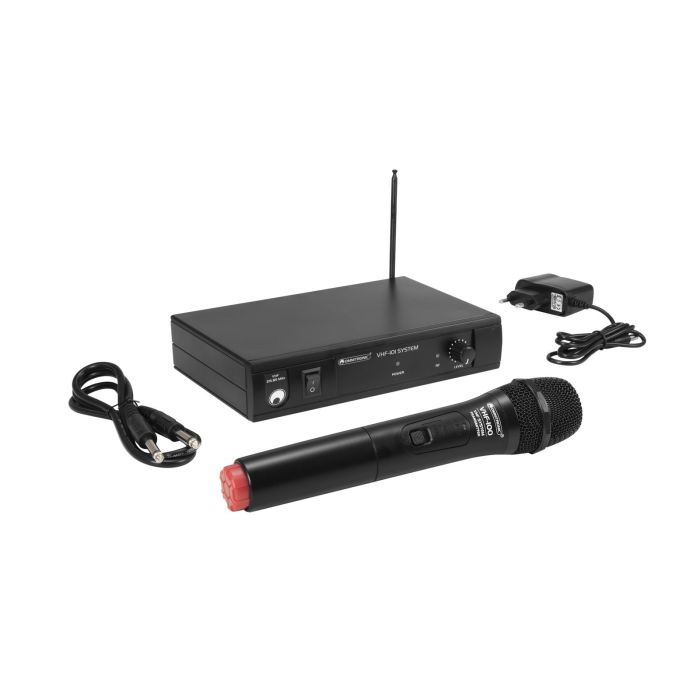

- Receiver unit and hand-held microphone with PLL technology
- Operation with fixed VHF frequency
- Volume control
- XLR and 6.3 mm output
- LEDs for power and carrier signal
- Operation of the receiver unit via supplied power unit
- Microphone with mute function and color indication
- Operation of the microphone via 2 x 1.5 V battery (type AA), not included
- Operation range approx. 30 meters
- License-free and approved in Germany and other EU countries
- On/off/mute-switch: Yes
- Polar pattern: Unidirectional
Technical specifications
| System: | Non-diversity |
| Carrier frequency: | 215.850 MHz |
| Coverage: | 30 m (with line-of-sight) |
| RF power output: | 10 mW |
| Audio outputs: | XLR, unbal. and 6.3 mm jack, unbal. |
| Power supply: | |
| Receiver: | 100-240 V AC, 50/60 Hz via supplied power unit |
| Power consumption: | <5 W |
| Microphone: | 2 x 1.5 V battery, type AA |
| Current consumption: | approx. 115 mA |
| Dimensions, weight: | |
| Receiver: | 212 x 155 x 47 mm (W x D x H), 300 g |
| Microphone: | 50 x 240 mm (D x L), 170 g |
| Frequency band: | VHF |
| Polar pattern: | Unidirectional |
| Material: | Plastic |
| Frequency range: | 80 - 12000 Hz |
| Weight: | 0,60 kg |
