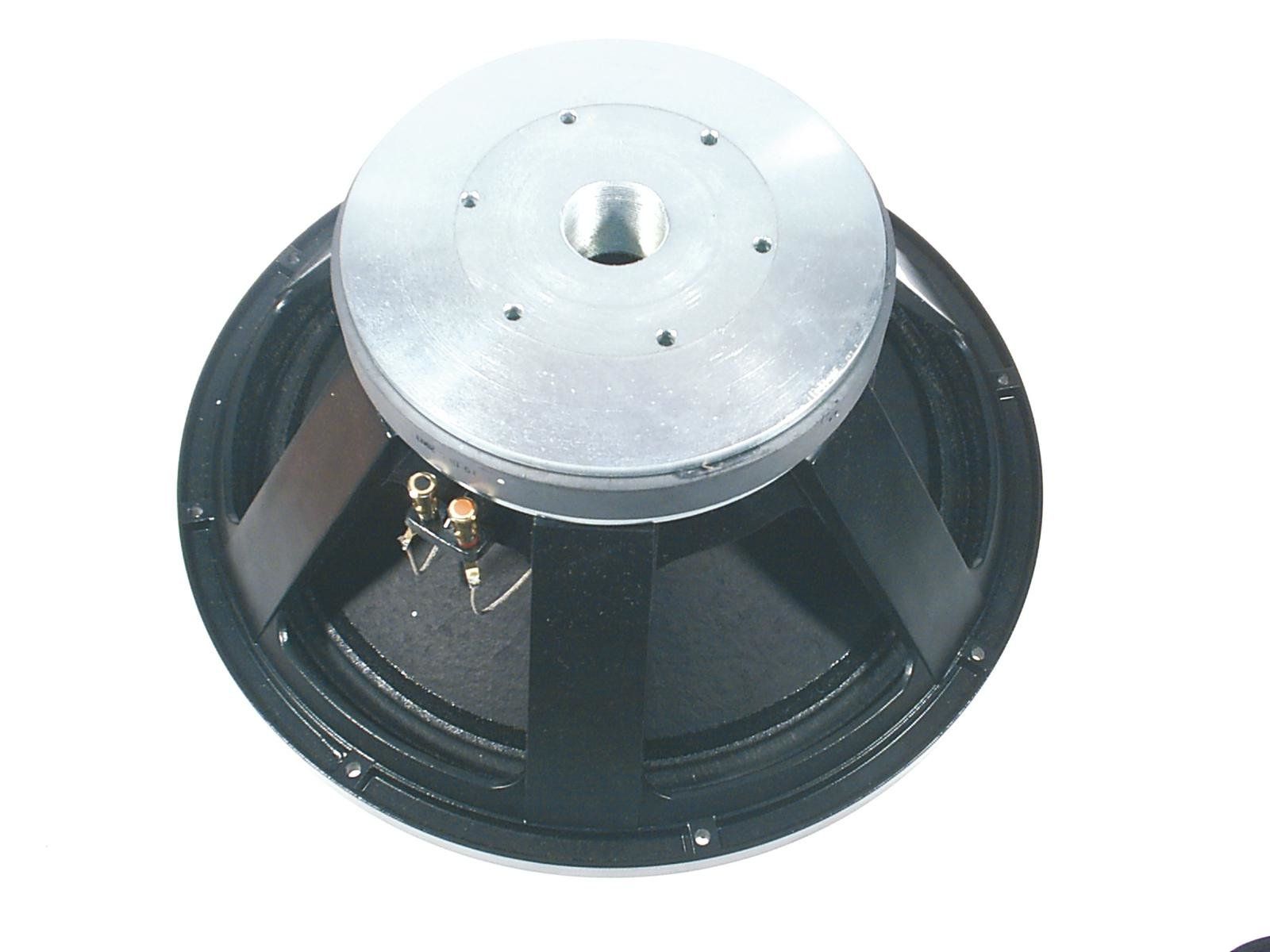

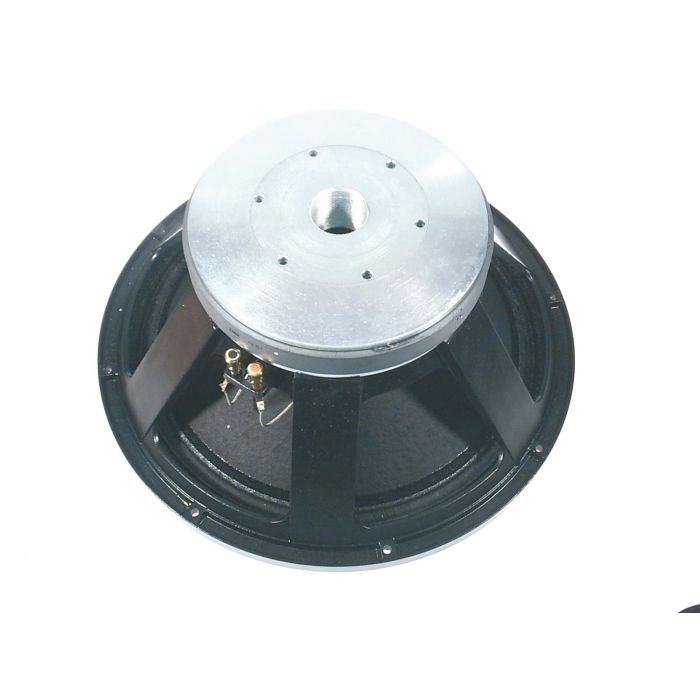

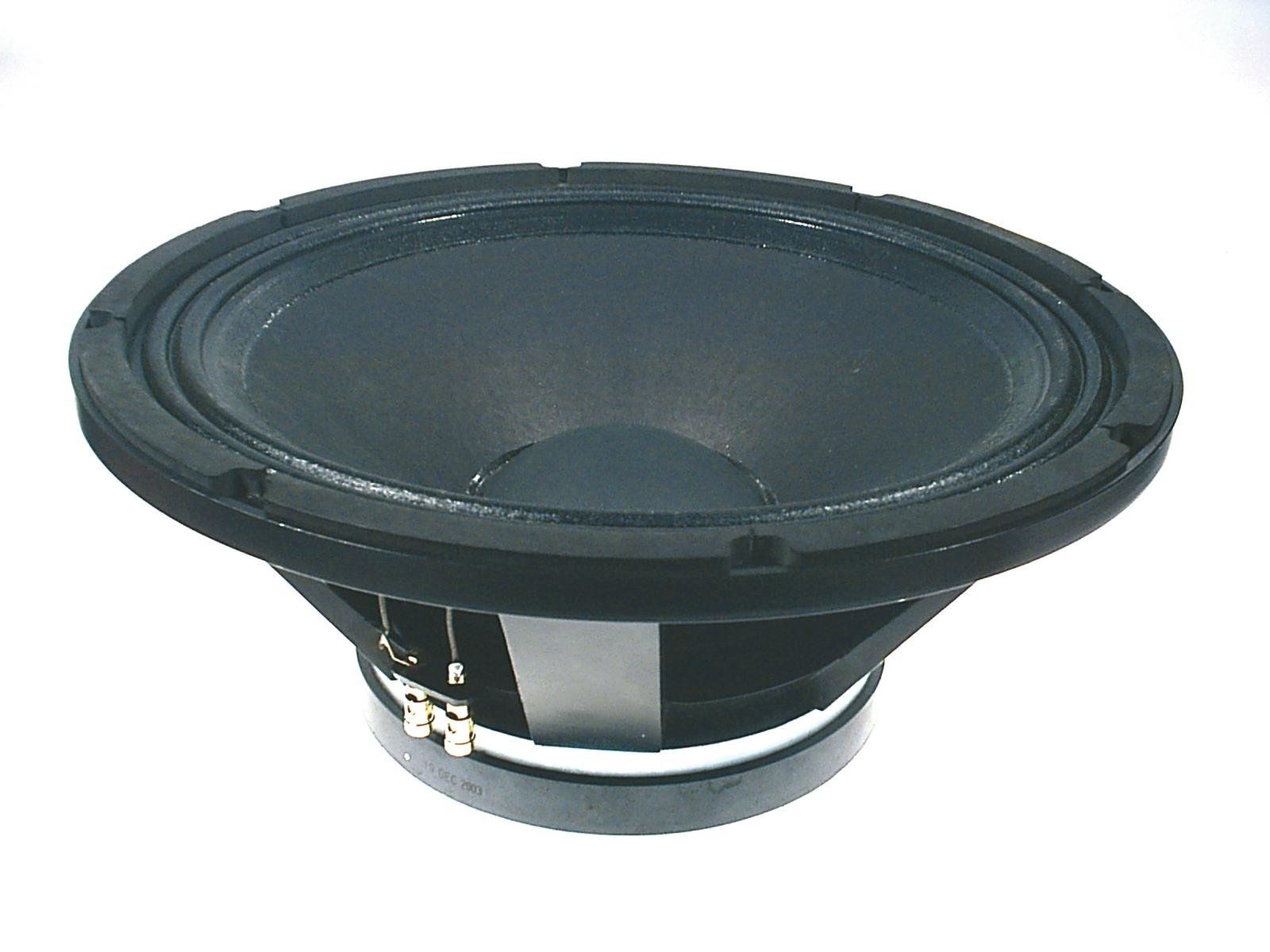

Omnitronic vervangings Woofer 18" 8Ohm 1000W RMS PAS-218
€ 710,90
€ 587,52
?
SKU
stE1000042
Omnitronic vervangings Woofer 18" 8Ohm 1000W RMS PAS-218
Omnitronic vervangings Woofer 18" 8Ohm 1000W RMS PAS-218
Technical specifications
Nominal Diameter: 460 mm / 18 "
Impedance: 8 ohm
Power: 1000 W RMS according to EIA Standard
Sensitivity: 99 dB 1 W/1 m
Frequency Range: 39 - 2000 Hz
Voice Coil Diameter: 125 mm/5 inch
Magnetic Assembly Weight: 5.2 kg
Magnet Diameter: 280 x 150 x 25 mm
Weight: 22 kg
Thiele-Small-Parameter:
FS: 39 Hz
Re: 6,0 ohms
Qms: 4,01
Qes: 0,47
Qts: 0,42
BL: 25,1
Vas: 156,3 L
Rp: 45,3 ohm
Lp: 49,2 mH
Cp: 473,8 µF
Le: 1,40 mH
Mms: 199,4 gr
Xmax: 9 mm
