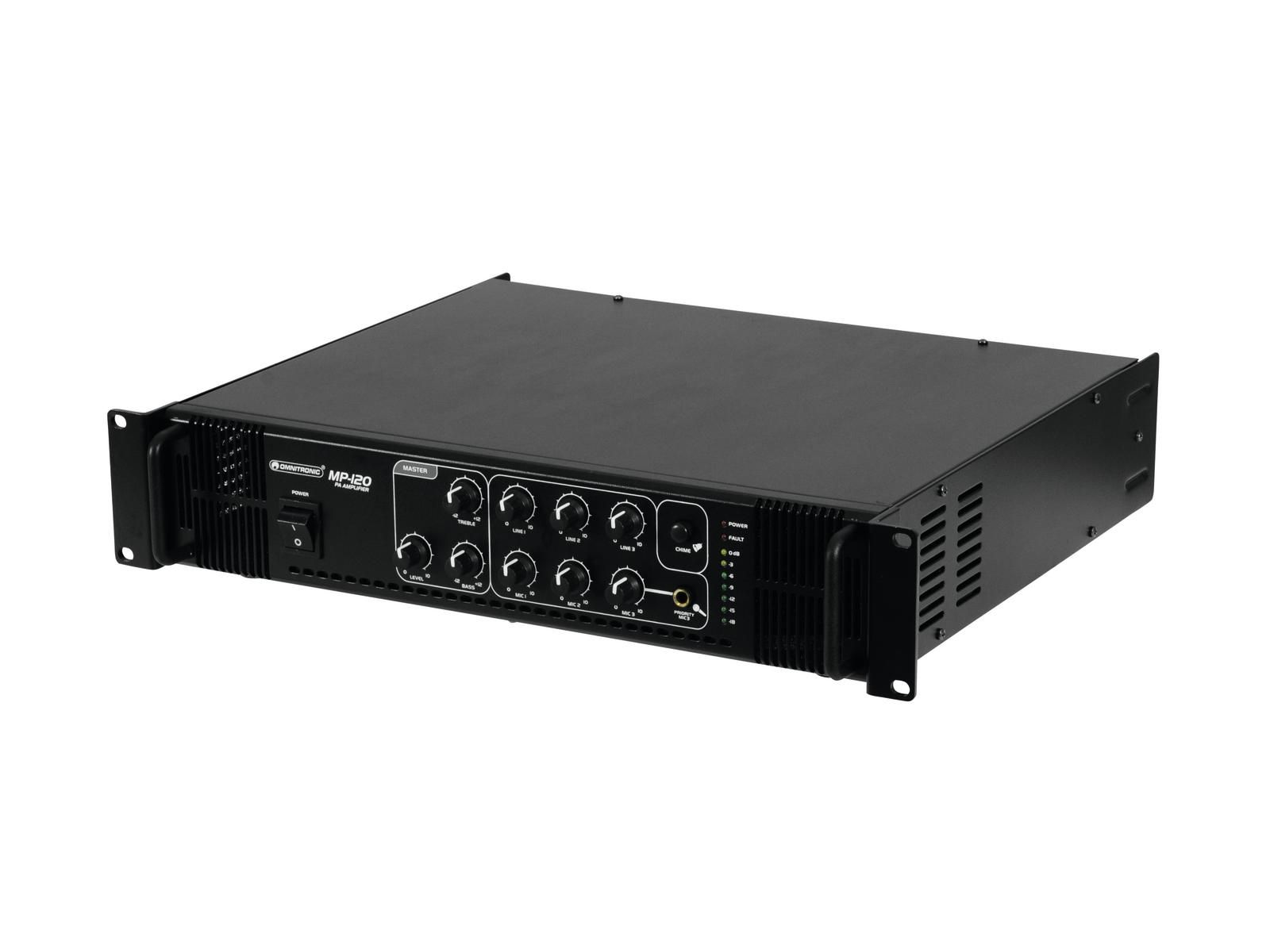

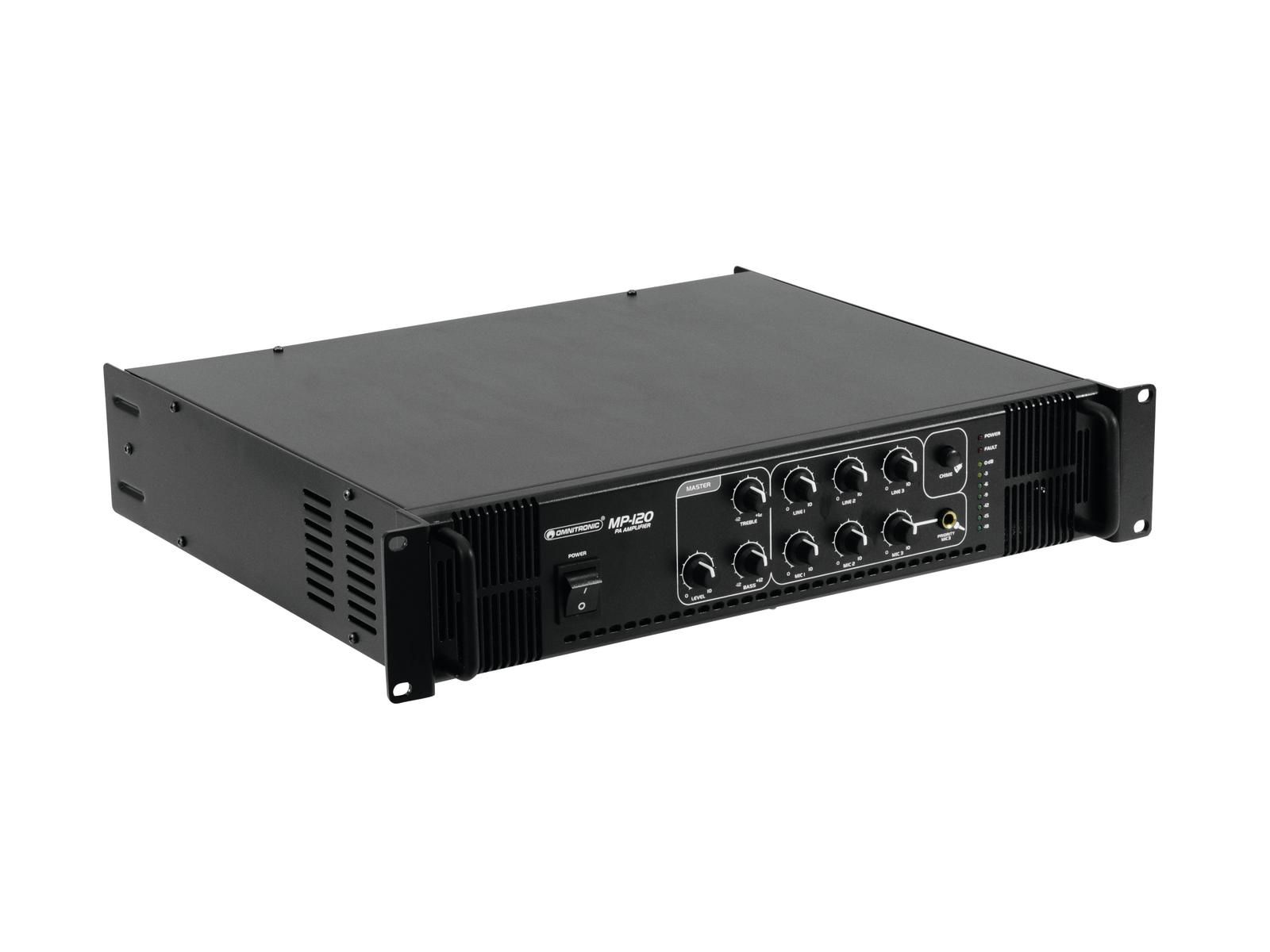

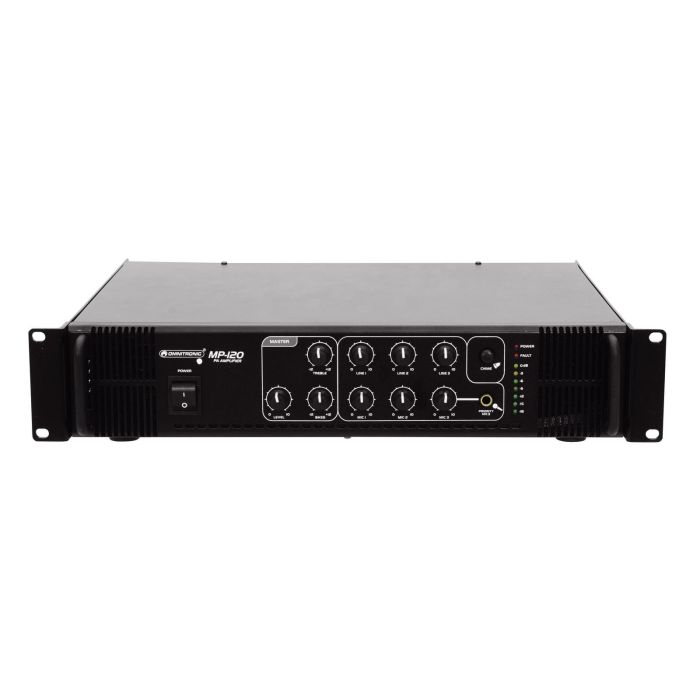

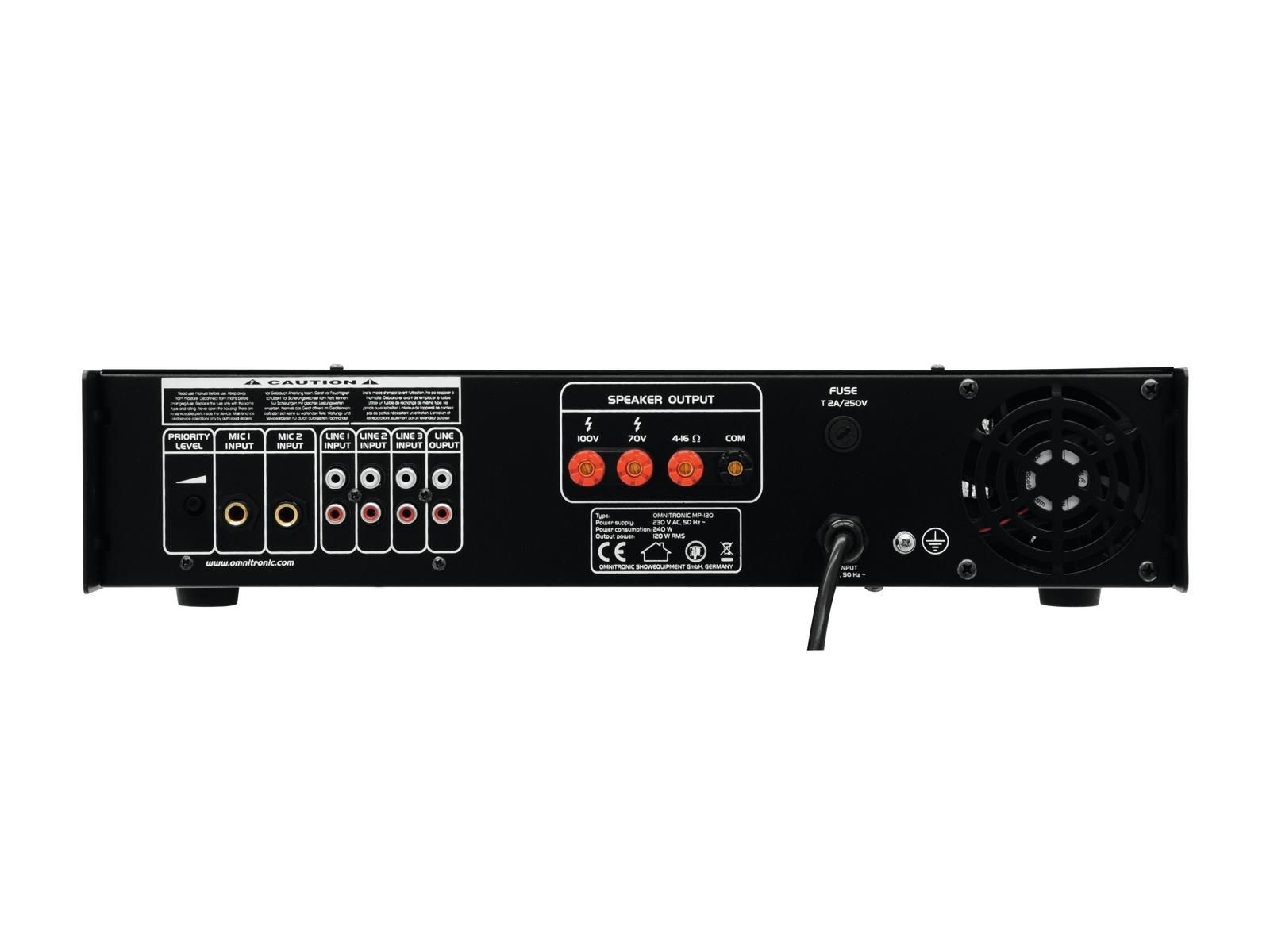

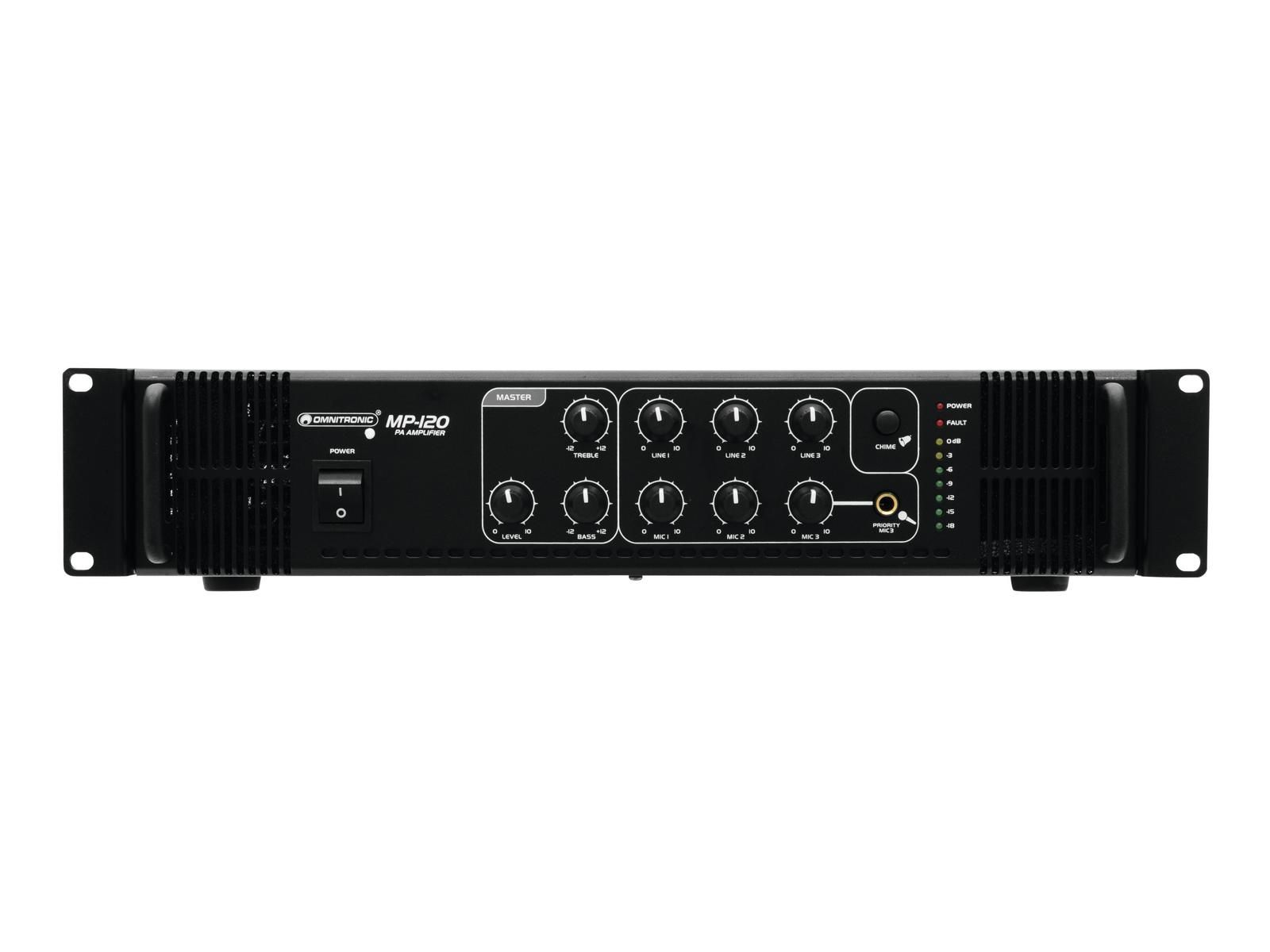

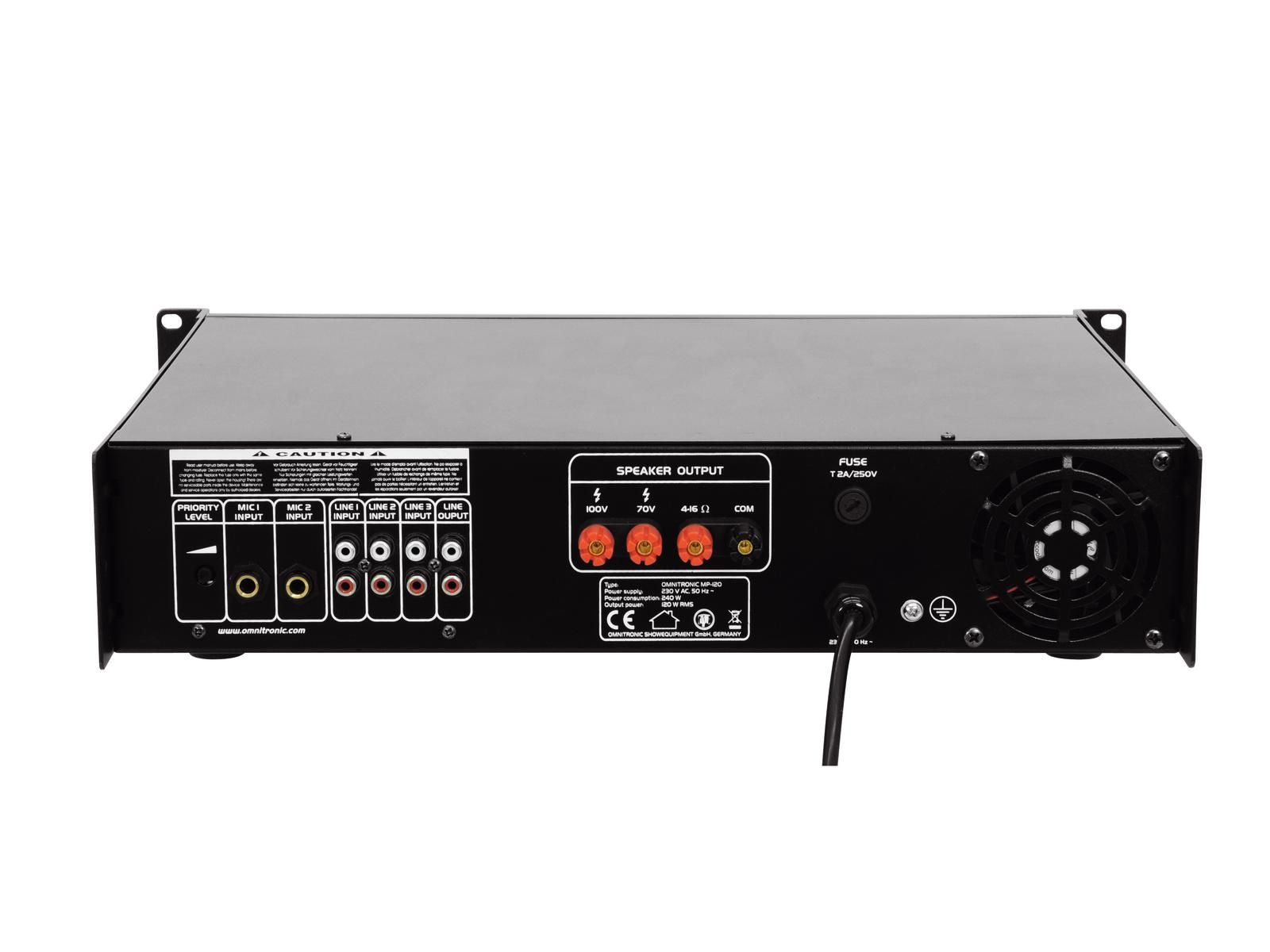

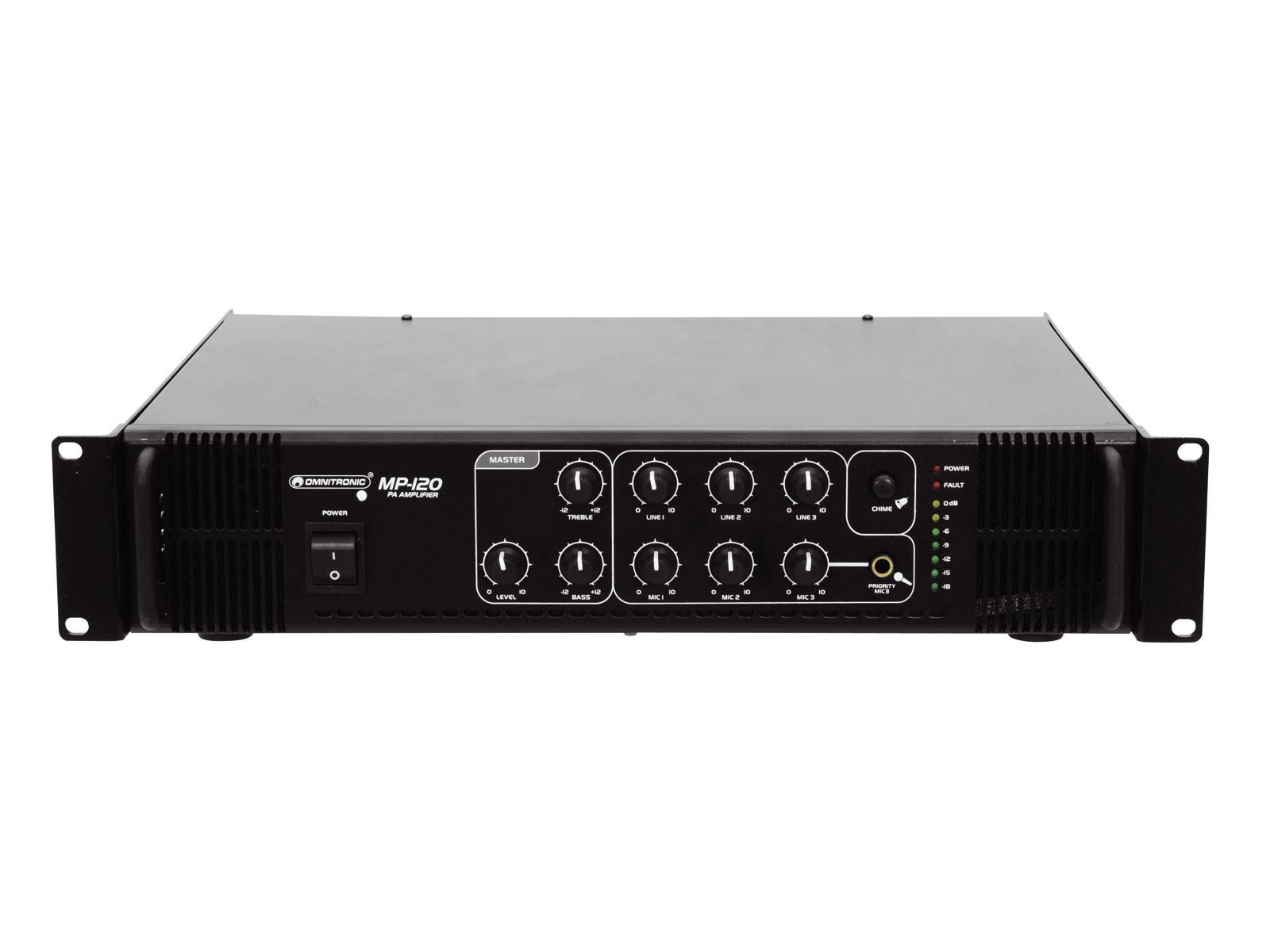

OMNITRONIC MP-120 PA Mixing Amplifier
OMNITRONIC MP-120 PA Mixing Amplifier
OMNITRONIC MP-120 PA Mixing Amplifier
PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
Microphone input 3 with adjustable priority circuit
3 line inputs (stereo RCA) with separate level controls
1 line output (stereo RCA)
Chime, switchable
Treble and bass control for the output signal
7-fold LED level display
Master control for the output signal
Fan-cooled
Protection circuits with LED indication: over current, short circuit, turn-on delay
Rack installation
Power supply: | 230 V AC, 50 Hz |
Power consumption: | 240 W |
Output power: | 120 W RMS |
Output type: | 70 V, 100 V or 4-16 ohms |
Mic input: | 5 mV, 600 ohms |
Line input: | 300 mV, 10 kohms |
Output connectors: | Screw connectors |
Frequency range: | 80 Hz - 14 kHz |
S/N ratio: | 85 dB (line), 75 dB (mic) |
Dimensions: | 483 x 400 x 88 mm |
Weight: | 9.5 kg |
