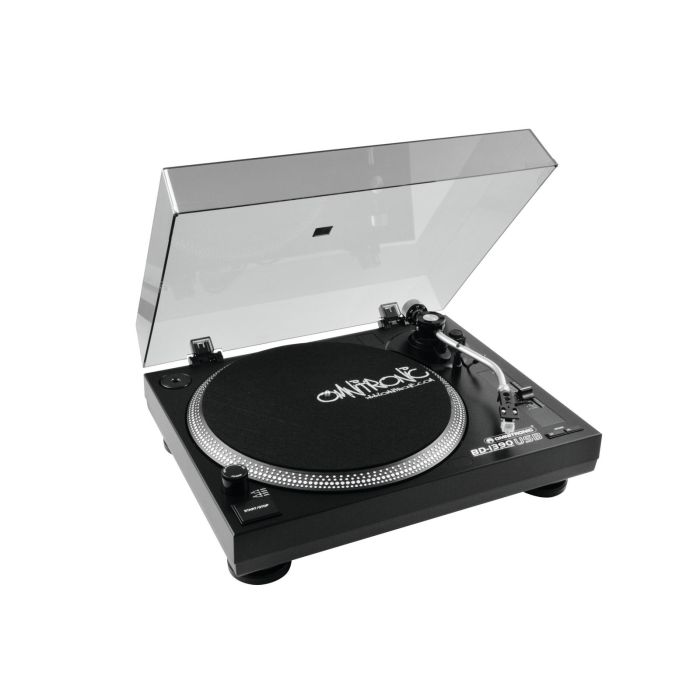

Omnitronic BD-1390 USB Beltdrive Draaitafel zwart

Omnitronic BD-1390 USB Beltdrive Draaitafel zwart


Belt drive DJ turntable with USB interface and recording software, black


    Built-in USB port and phono preamplifier, for a high-quality and convenient digitization of analog vinyl records
    Plug & play: no driver installation required, unit is identified automatically
    Sampling rates of 44.1 kHz and 48 kHz in stereo, resolution: 16 bits
    Incl. software for recording and editing
    2 speeds, pitch control ±10 %
    Large start/stop button
    Strobe lamp for exact speed adjustment
    Adjustable anti-skating
    Shock-absorbing feet
    Switchable phono/line output
    Delivery includes removable acryl dust cover, pick-up system, RCA and USB cable
    USB 1.1 support
    Suitable for Windows XP, Vista,7, 8, 10 and Mac OS X

Power supply:    100-240 V AC, 50/60 Hz
Power consumption:    8 W
Type:    manual turntable
Drive method:    belt drive
Motor:    DC motor
Platter:    plastic, d=330 mm
Speed:    33 1/3 RPM and 45 RPM
Change time between speeds:    <1 sec
Start time:    <1 sec
Stop time:    <1 sec
Pitch adjustment:    ±10 %
Wow and flutter:    <0.25 %
Rumble:    >50 dB DIN B
Tone arm:    S-shape with Cardan's suspension
Tone arm length:    220 mm
Overhang:    10 mm
Anti-skating range:    0-4 g
Stylus pressure range:    3-4 g
Applicable cartridge weight:    6-10 g
Phono output level:    1.5-3.6 mV/ 1 kHz 5 cm/sec
Line output level:    90-216 mV/ 1 kHz 5 cm/sec
Frequency range:     20-20000 Hz
Channel separation:    >15 dB
Output connectors:    RCA, USB type B
Dimensions:    450 x 360 x 145 mm
Weight:    4 kg
Shipping weight:    5.10 kg
