Odin SF-12A 12'' Side Fill Speaker

Schrijf uw review over dit product

€ 1.096,55 € 906,24

SKU

d3930

Details

Reviews

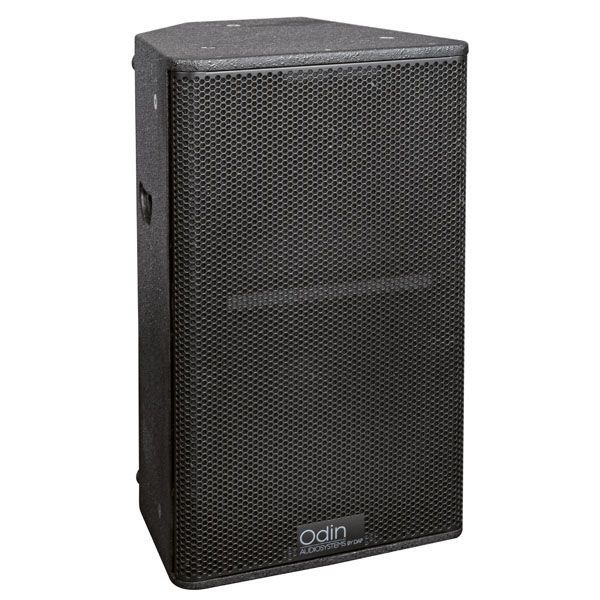

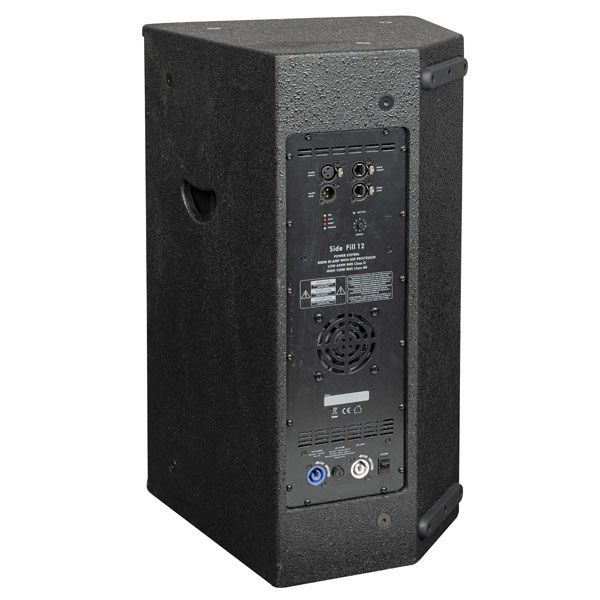

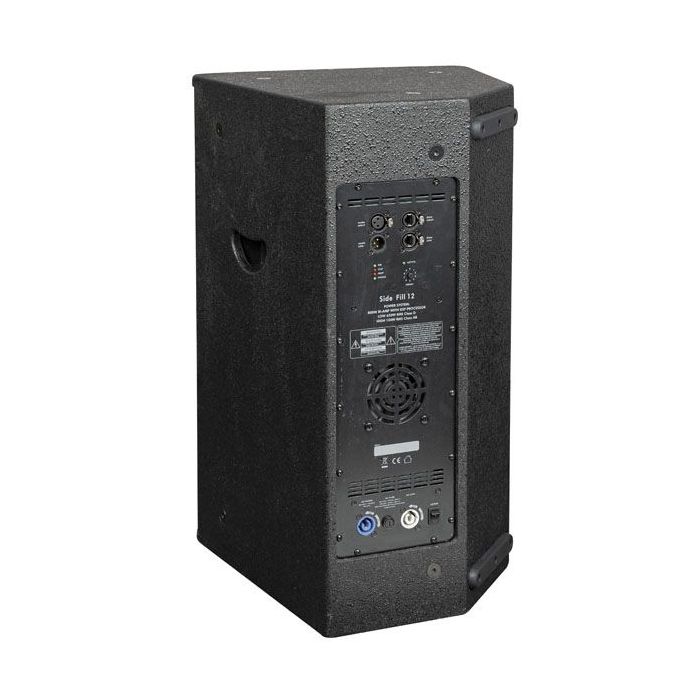

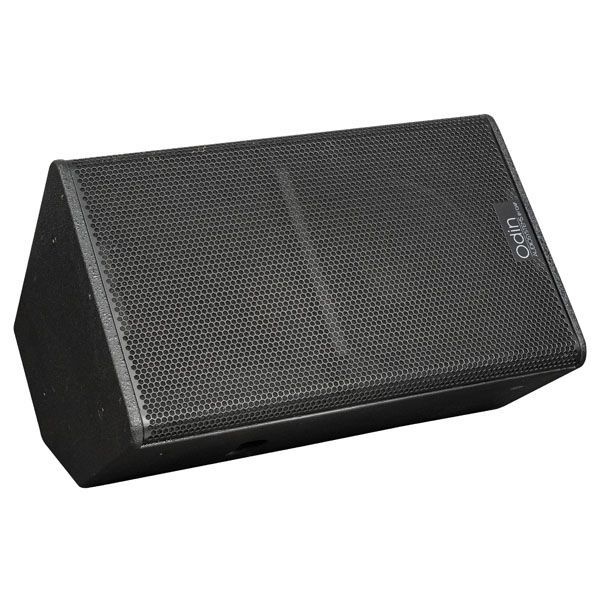

Odin SF-12A 12'' Side Fill Speaker

De Odin SF-12A en SF-15A Side fill kassten zijn 2-weg full-range actieve bi-amped luidsprekers. Ze zijn uitgerust met Celestion-luidsprekers en een stevig, klaar voor gebruik op de weg. Met deze units kan de geluidstechnicus een meer ontwikkeld en goed uitgebalanceerd geluid op het podium leveren. Via afzonderlijke podiummonitors krijgt elk bandlid zijn eigen persoonlijke mix. Maar door de Side Fills rond het podium toe te voegen, bij voorkeur in een X-Stage-setting, hoort elke artiest precies wat er aan de hand is met alle andere instrumenten op het podium. Dit voegt meer vrijheid toe voor de geluidstechnicus en biedt de mogelijkheid om een grotere podiumopstelling te ontwerpen

Systeem 2-weg full range kast
AMP vermogen 800 W continu, Bi-AMP (klasse D-350 W LF, klasse AB-130 W HF), 3200 W piek
Luidspreker 1 "Celestion compressie driver, 1,75" spraakspoel, 60 W RMS, 240 W piek
12 "Celestion Woofer, waterbestendige coating, 3" spreekspoel, 350W-RMS / 1400W-piek
Frequentiebereik (+/- 3dB) 60 Hz - 19 kHz
MAX SPL @ 1 m 128 dB
Crossover-frequentie 1,6 KHz
Dispersie (-6dB) 80 ° horizontaal / 60 ° verticaal (roteerbare hoorn)
Koeling Passieve koeling + geforceerde koeling binnen

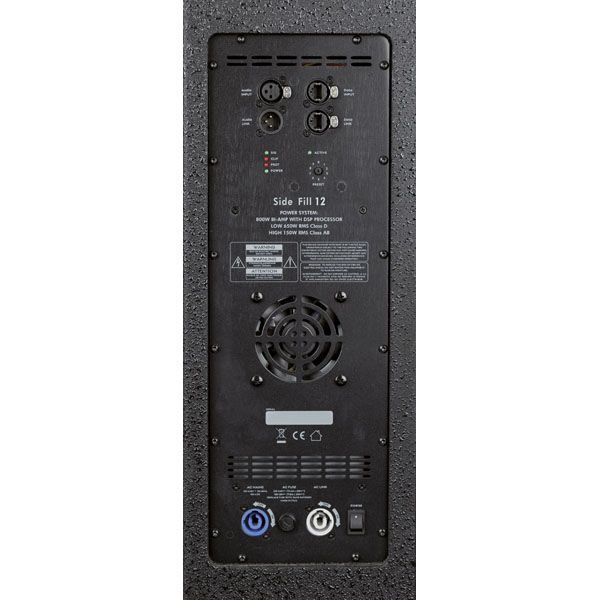

Audio Connector XLR In- en uitvoer
Gegevensconnector RJ45 Date In & Link Cascading Connector
Externe bedieningselementen 9 Vaste preset + 1 bewerkbare preset, voedingsschakelaar met LED-indicatoren voor Clip / SIG / PROT
DSP-processor 32 bit, 24bit / 48kHz Audioconversie AD / DA
Elektronische beveiliging Thermische / convectieventilator / overbelasting / digitale begrenzer / compressor
Netaansluiting Neutrik PowerCON-connector In & Uit
Voeding 100 ~ 240VAC, 50Hz / 60Hz
Stroomverbruik 700W

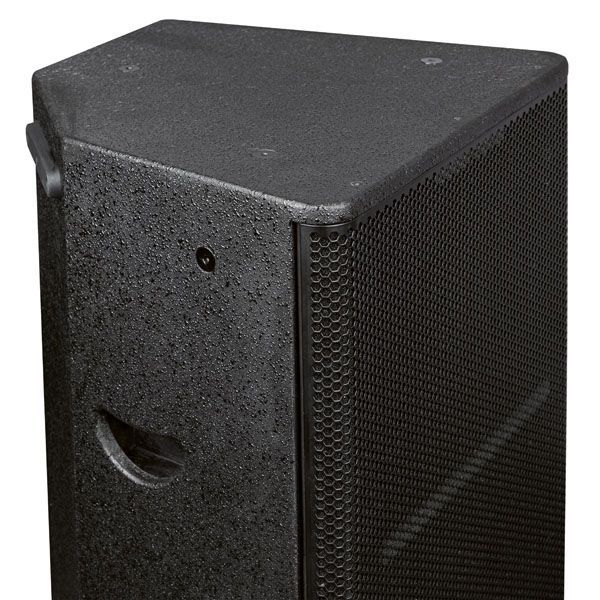

Behuizingsconstructie 15 mm berkenmultiplex, zwarte verf, 1,5 T metalen grill met schuim, één handvat aan elke zijde, waterbestendige coating
Adapter voor montage van polemount
Afmetingen (HxBxL) 646 x 396 x 379 mm
Nettogewicht 26 kg / 57.3 Ibs
Optionele accessoires DSP-netwerkinterface CL-4
