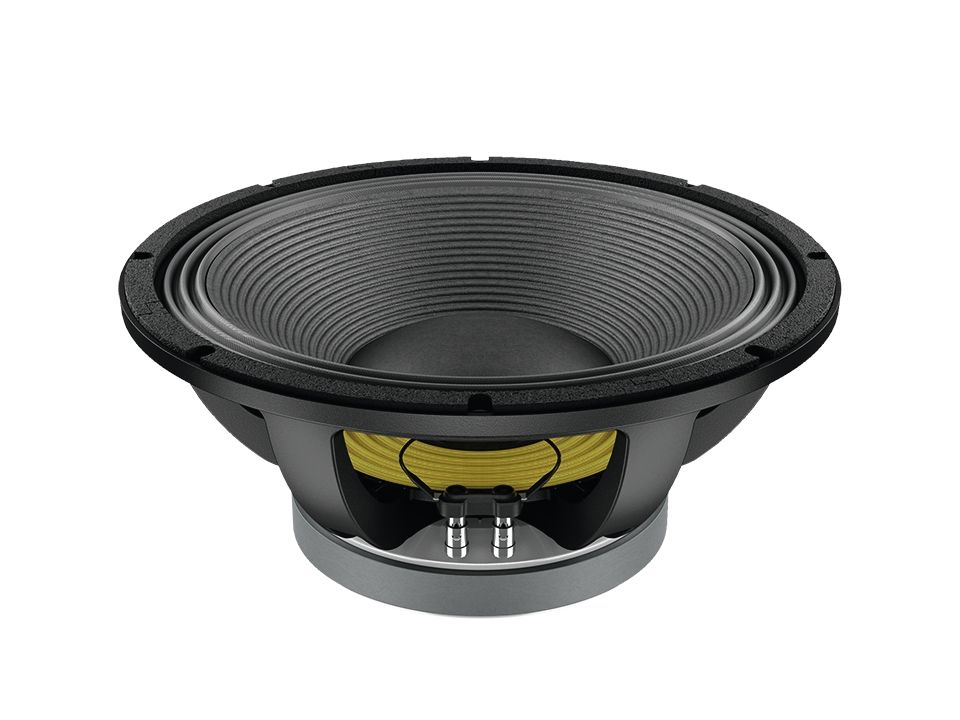

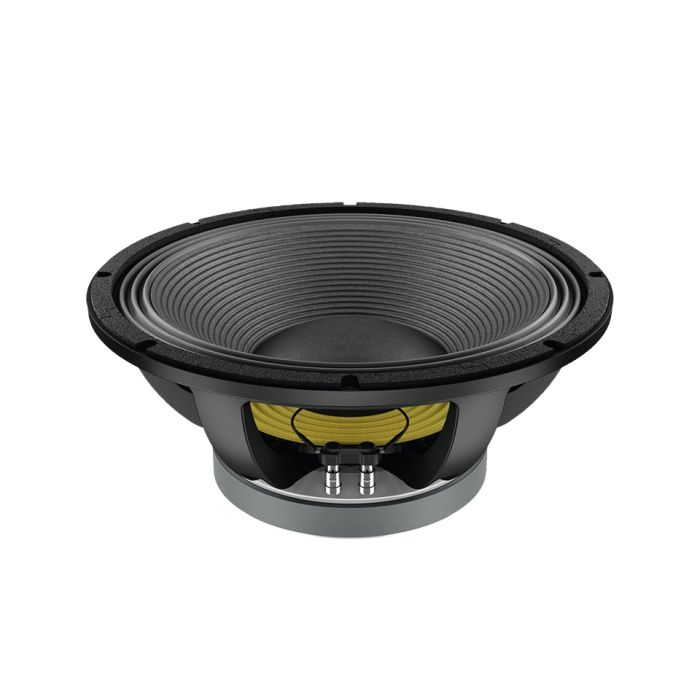

LAVOCE WAF154.01 15" Subwoofer Ferrite Magnet Aluminium Basket Driver

LAVOCE WAF154.01 15" Subwoofer Ferrite Magnet Aluminium Basket Driver

1000 W AES, 8 ohms, 97 dB, 40-1000 Hz
Type: 38 cm woofer (15")
Rated power: 1000 W AES
Program power: 2000 W
Impedance: 8 ohms
Sensitivity: 97 dB
Frequency range: 40-1000 Hz
Voice coil diameter: 10 cm (4")
Chassis material: Aluminum
Magnet material: Ferrite
Weight: 13.4 kg

GENERAL SPECIFICATIONS

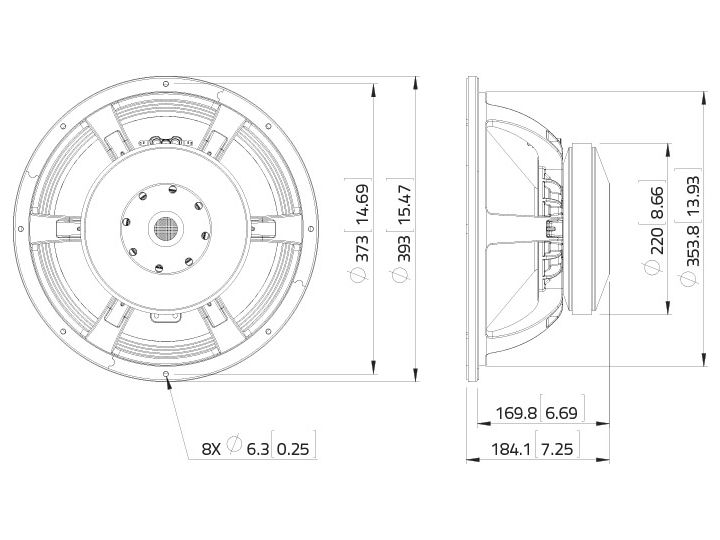

Nominal diameter mm (in.) 380 (15)
Nominal impedance Ω 8
Minimum impedance Ω 6,8
Program power (1) W 2000
AES Power rating (2) W 1000
Sensitivity (3) dB 97
Frequency range Hz 40 ÷ 1000
Voice coil diameter mm (in.) 100 (4)
Chassis material Aluminium
Magnet material Ferrite
Magnet dimensions
OD x ID x h
mm
(in.)
220 x 120 x 25
(8.66 x 4.72 x 0.98)
Coil material Copper
Former material Glass fiber
Cone material Water Proof Treated Paper
Surround material Polycotton
Xmax (4) mm (in.) 10,3 (0.4)
Xmech (5) mm (in.) 17,3 (0.68)
Gap height mm (in.) 12 (0.47)
Voice coil winding height mm (in.) 26,5 (1.04)
Driver displacement volume l (ft3
) 5,4 (0.19)
SMALL SIGNAL PARAMETERS
DC resistance Re Ohm 5,4
Resonance frequency Fs Hz 40
Moving mass Mms g (oz) 160 (5.64)
Compliance Cms mm/N 0,11
Force factor BxL N/A 25,8
Mechanical Q-factor Qms 8,8
Electrical Q-factor Qes 0,31
Total Q-factor Qts 0,30
Equivalent air volume Vas l (ft3
) 107 (3.78)
Voice coil Inductance Le mH 1,70
Diaphragm area Sd cm2
(in.2
) 830 (128.65)
Reference efficiency Eta 0 % 1,80
SHIPPING INFORMATION
Net weight kg (lb.) 13,4 (29.5)
Multipack size (1)
W x D x H
mm
(in.)
452 x 452 x 232
(17.8 x 17.8 x 9.1)
Multipack weight kg (lb.) 15 (33.1)
