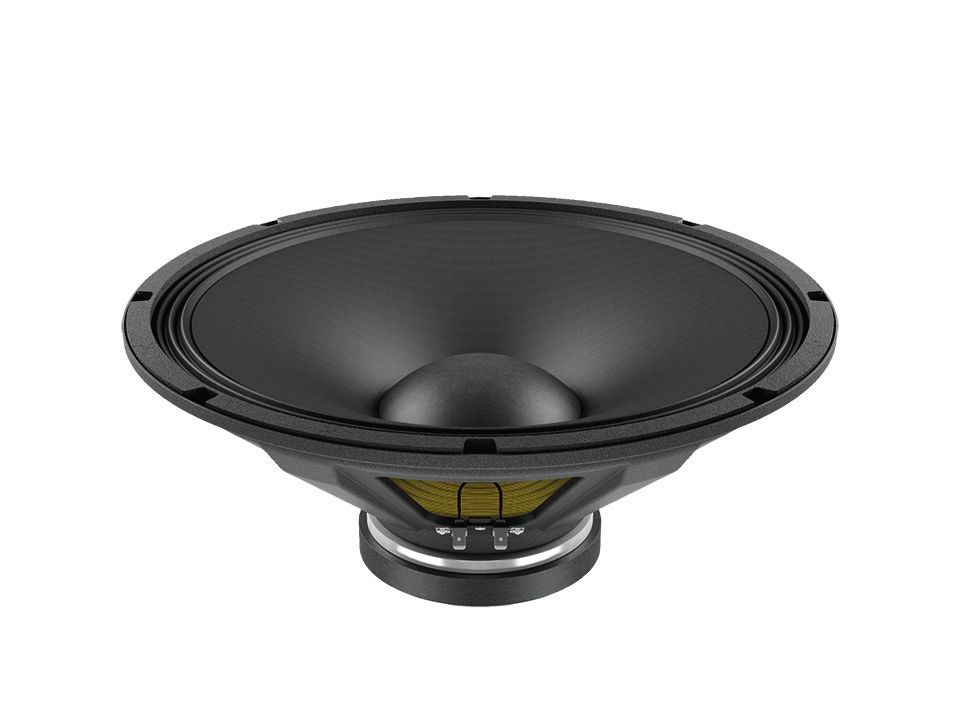

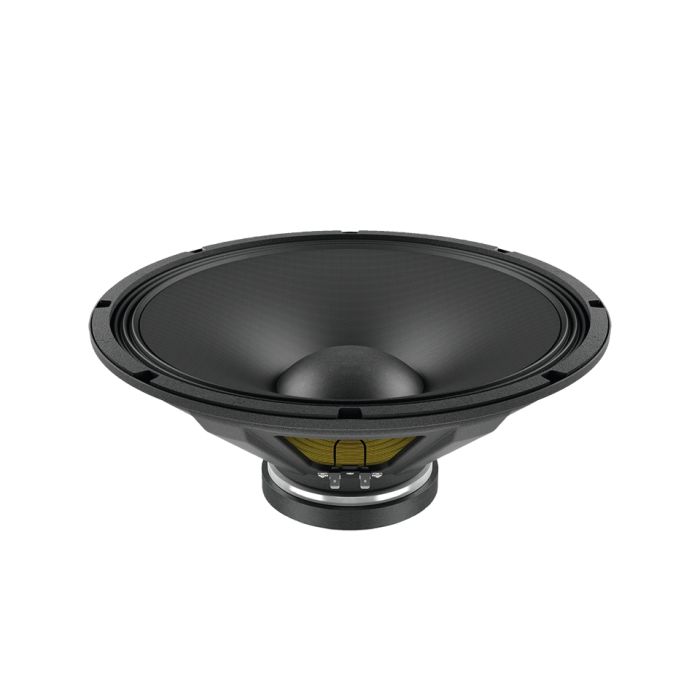

LAVOCE FBASS15-20 15" Bass Guitar Woofer Ferrite Magnet Steel Basket Driver
LAVOCE FBASS15-20 15" Bass Guitar Woofer Ferrite Magnet Steel Basket Driver
LAVOCE FBASS15-20 15" Bass Guitar Woofer Ferrite Magnet Steel Basket Driver
200 W AES, 8 ohms, 98 dB, 40-4000 Hz
ALGEMENE SPECIFICATIES
Nominale diameter mm (in.) 380 (15)
Nominale impedantie Ω 8
Minimale impedantie Ω 5,8
Programmakracht (1) W 400
AES Vermogen (2) W 200
Gevoeligheid (3) dB 97
Frequentiebereik Hz 40 ÷ 3800
Spraakspoel diameter mm (in.) 50 (2)
Chassismateriaal Staal
Magneetmateriaal Ferriet
Afmetingen van de magneet
OD x ID x h
mm
(in.)
140 x 60 x 17
(5,5 x 2,36 x 0,67)
Spoelmateriaal Koper
Voormalig materiaal Glasvezel
Kegelvormig waterbestendig behandeld papier
Randmateriaal Polykatoen
Xmax (4) mm (in.) 4,5 (0,18)
Xmech (5) mm (in.) 8,5 (0,33)
Opening hoogte mm (in.) 8 (0.31)
Spreekspoelwikkeling hoogte mm (in.) 13 (0.51)
KLEINE SIGNAALPARAMETERS
DC-weerstand Re Ohm 5,3
Resonantiefrequentie Fs Hz 40
Bewegende massa Mms g (oz) 76 (2.7)
Naleving Cms mm / N 0,20
Force factor BxL N / A 12,7
Mechanische Q-factor Qms 5,1
Elektrische Q-factor Qes 0,64
Totale Q-factor Qts 0,57
Equivalent luchtvolume Vas l (ft3) 207 (7.3)
Spraakspoel Inductantie Le mH 0,72
Diafragma gebied Sd cm2 (in.2) 855 (337)
Referentie-efficiëntie Eta 0% 2,1
VERZEND INFORMATIE
Netto gewicht Kg (lb.) 4 (8.8)
Multipack-grootte (2)
W x D x H
mm x mm x mm
(in. x in. x in.)
450 x 420 x 420
(17,7 x 16,5 x 16,5)
Multipackgewicht Kg (lb.) 10,5 (23,2)
