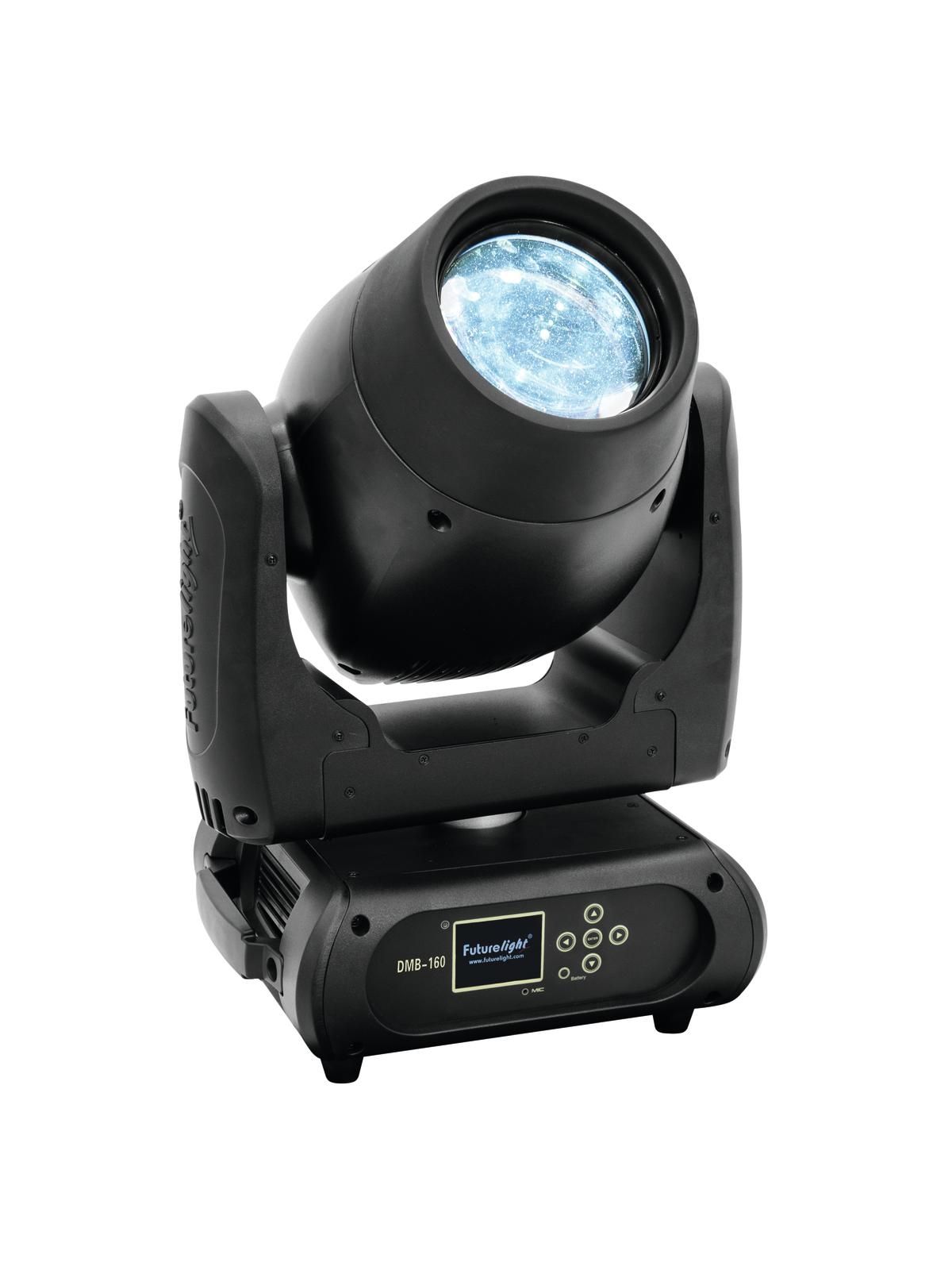

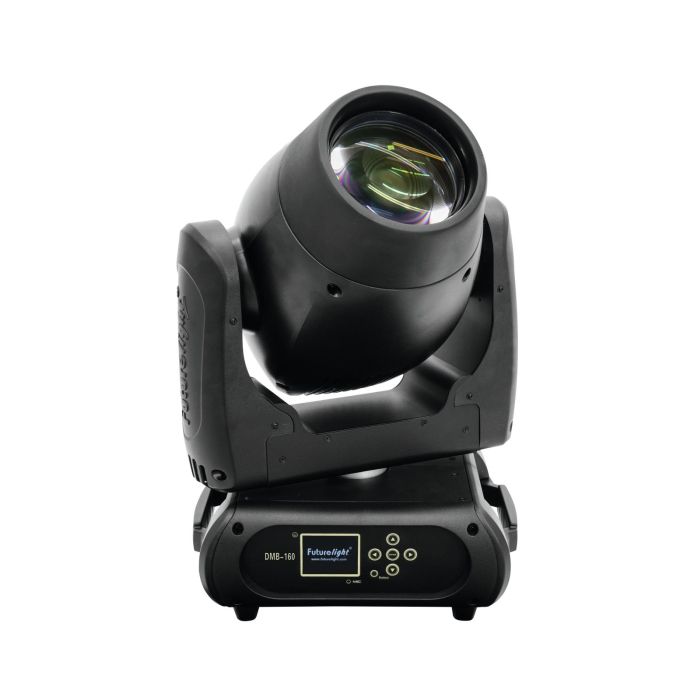

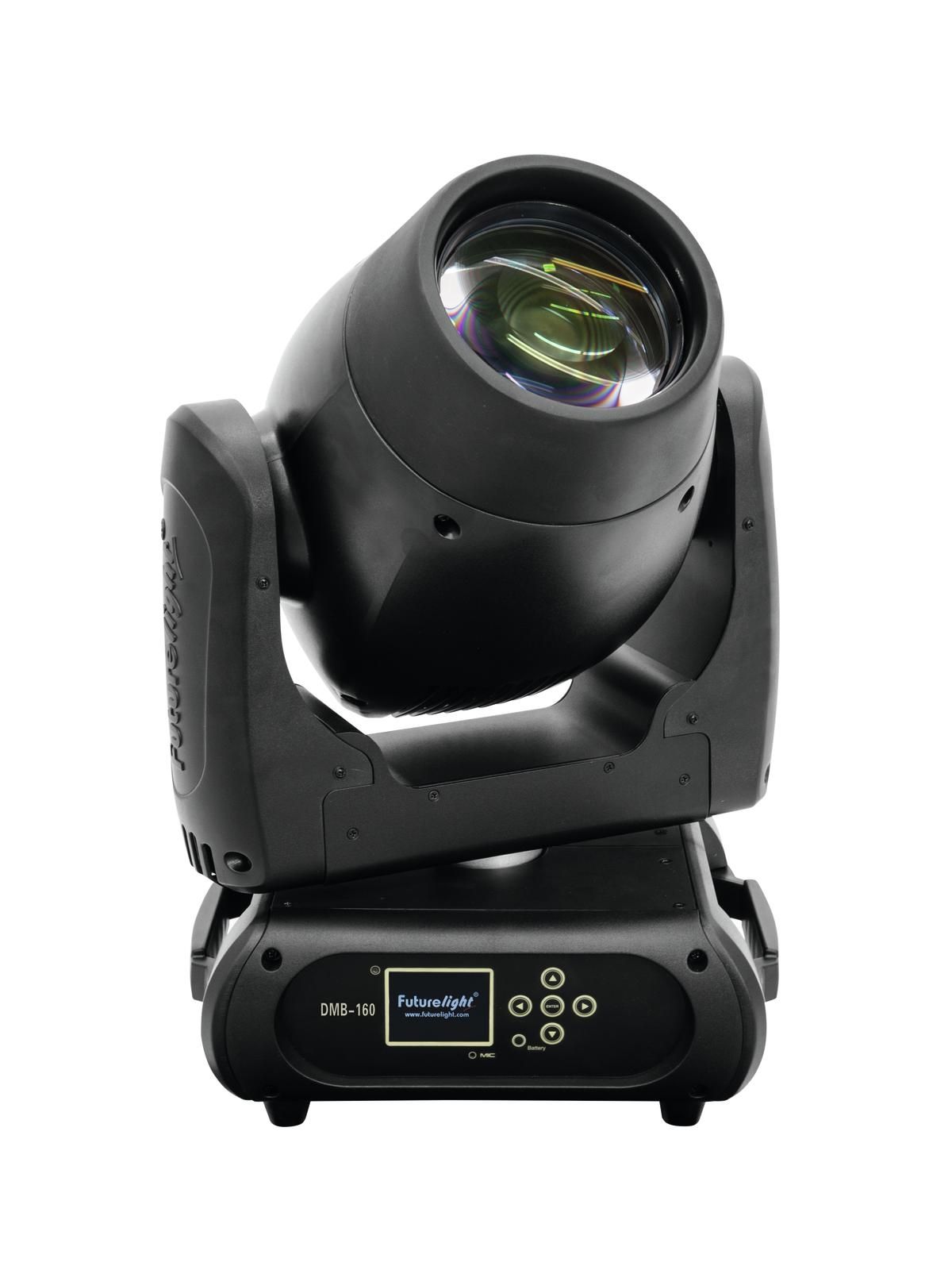

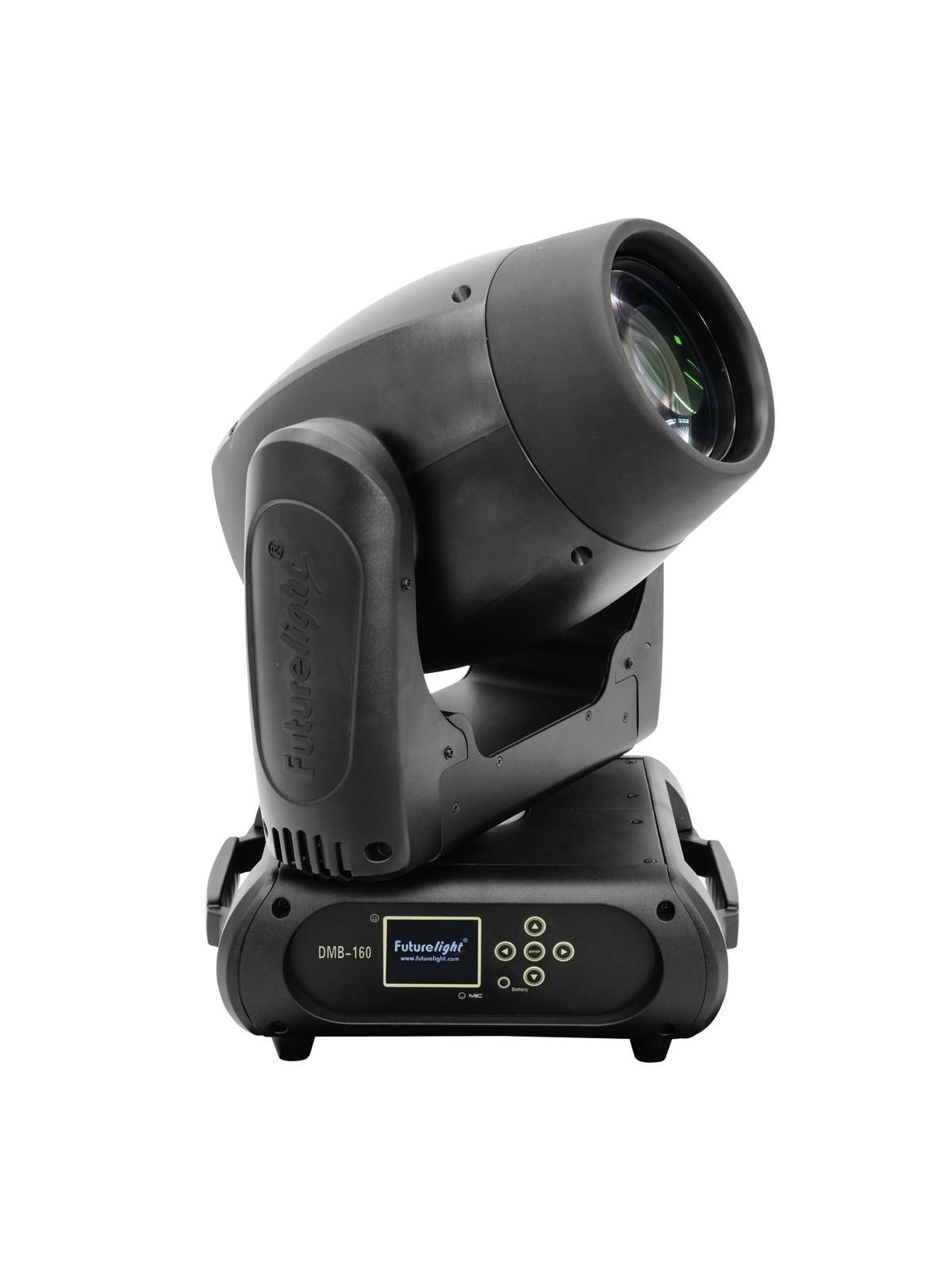

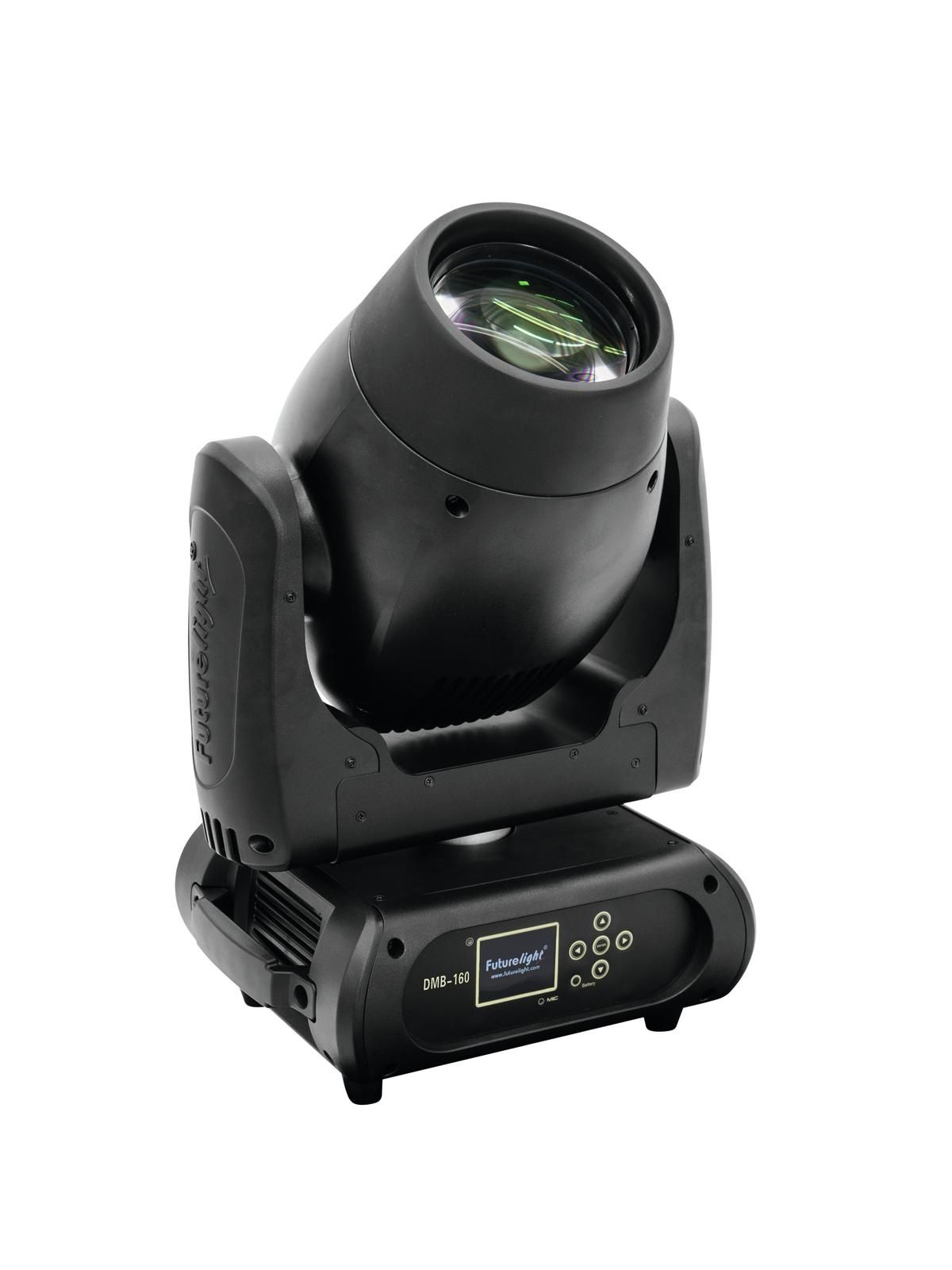

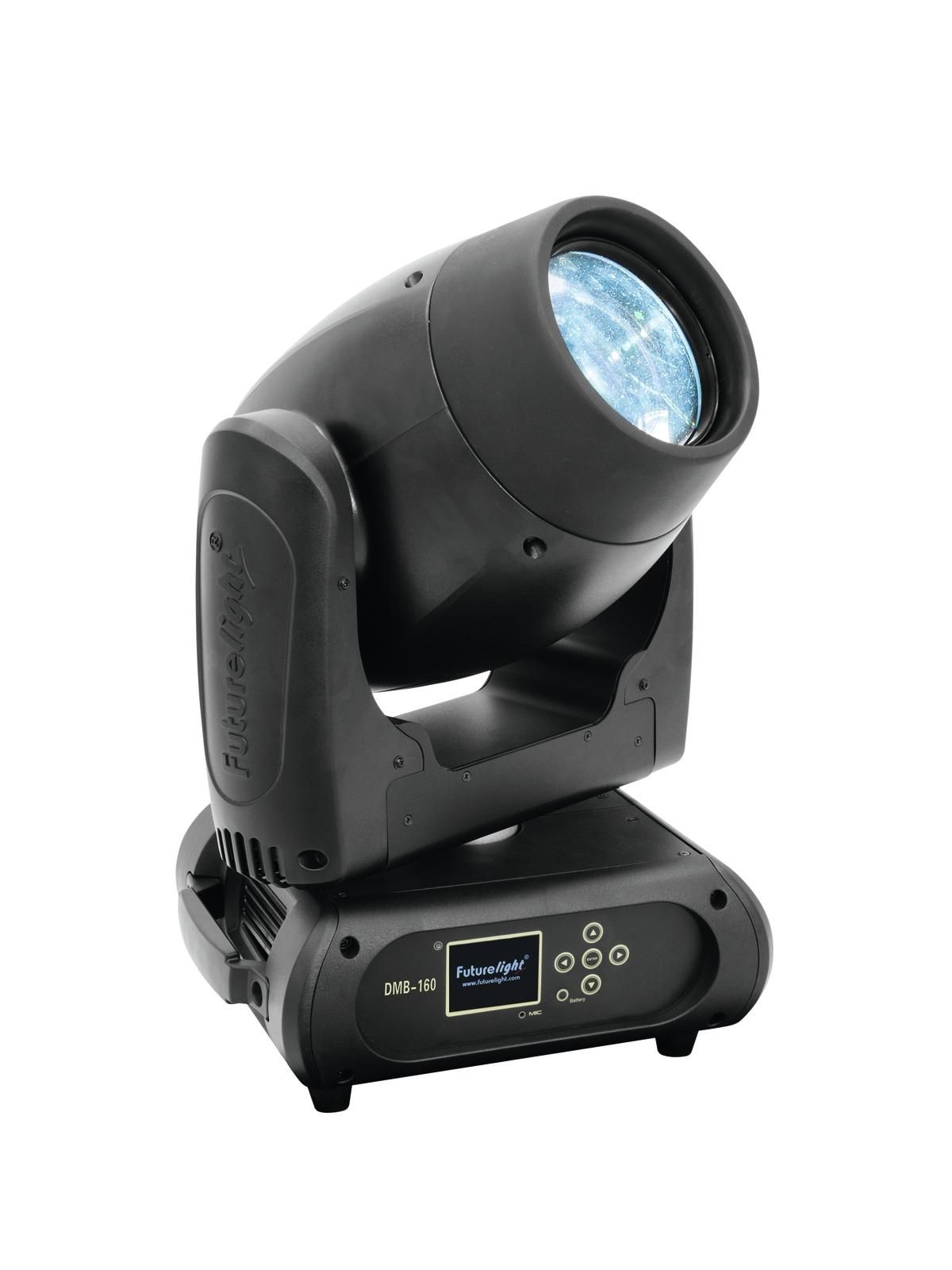

FUTURELIGHT DMB-160 LED Moving Head
FUTURELIGHT DMB-160 LED Moving Head
FUTURELIGHT DMB-160 LED Moving Head
With glass lens
Extremely high light output
Very narrow illumination angle of 3°
Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
Flicker-free projection
Supports RDM (Remote Device Management)
11, 13, 14 or 17 DMX channels selectable
Effect wheel with rotating 6 fold linear prism, 8-facet prism and frost filter
Color wheel with 14 different dichroic color filters plus white
Rainbow effect with adjustable speed in both directions
Gobo wheel with 17 static gobos plus open
With gobo shake function
Exact positioning via 16 bit PAN/TILT movement resolution
Dimmer
Motorized focus
Strobe effect with adjustable speed
Random strobe effect
Automatic position correction
PAN angle switchable between 540° and 630°
Sound-controlled via built-in microphone
Switch-mode power supply for operation between 100 and 240 Volts
ESDC function (Easy Service Data Check) with battery-buffered control board for operation time readouts etc. (the Li-Ion battery 3.7V, AAA, 10440 is not included)
Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
DMX-controlled operation or stand-alone operation with Master/Slave function
The scenes can be modified via the Control Board or via an external controller and loaded into the memory
Number of scenes can be changed individually
Software upload by optional accessories via DMX link

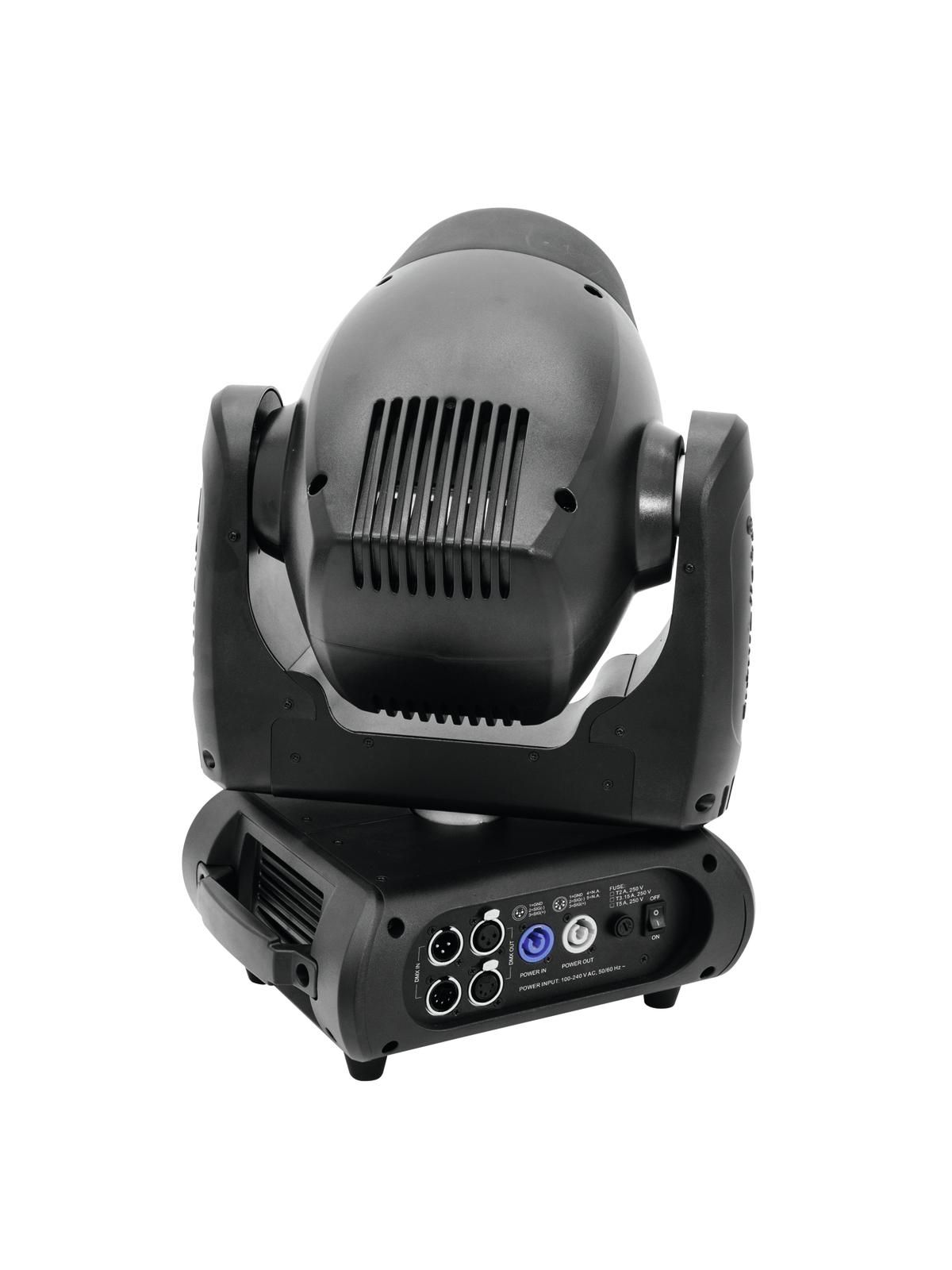

Power connection via Neutrik PowerCon jack and included power cable
Feed-through output allows to power up to 8 devices
DMX control via any standard DMX controller
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 200 W
DMX channels: 11/13/14/17
DMX connection: 3-pin and 5-pin XLR
Sound-control: via built-in microphone
LED type: Array 150 W
LED number: 1
Beam angle: 3°
Color-wheel: 14 dichroic filters plus open
Static gobo-wheel: 17 gobos and open
Maximum PAN-movement: 630°
Maximum TILT-movement: 270°
Dimensions (L x W x H): 343 x 250 x 428 mm
Weight: 14 kg
Colour rendering index (CRI): 79 Ra
Ecodesign regulation: Yes
Special product: Not designed for household room illumination
Purpose: Show effect lighting
