Faital Pro STH 100 Tweeter Horn 1" 80° x 70°
€ 62,19€ 51,40
?
SKU
FAI-FPSTH100
Faital Pro LTH 142 Tweeter Horn 1.4" 60° x 50°

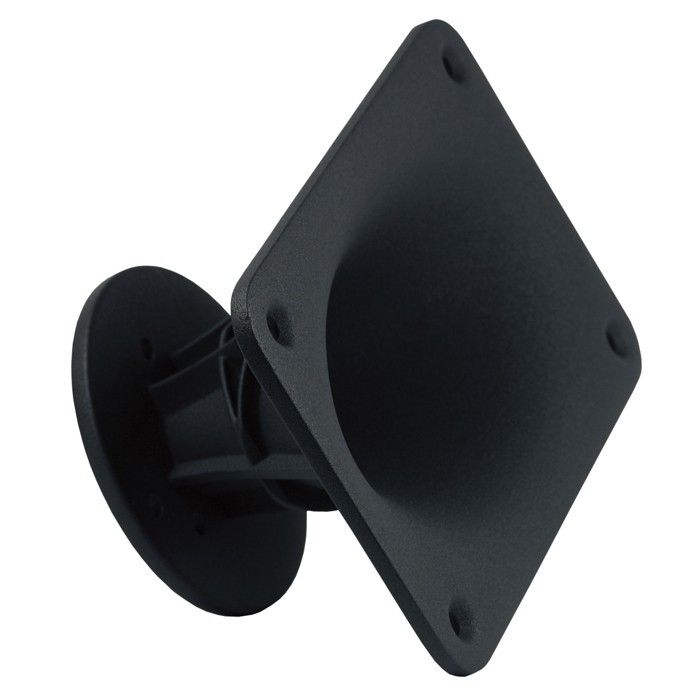

Faital Pro STH 100 Tweeter Horn 1" 80° x 70°
Alleen te bestellen in combinatie met de bijbehorende 1 inch driver
Nominal Specifications
| Type | Elliptical Tractrix |
| Throat Diameter | 25.4 mm (1 in) |
| Frequency Range | 1÷20 kHz |
| Recommended Crossover Freq. (1) | 1.4 kHz |
| Horizontal Nominal Coverage (-6dB) (2) | 80° |
| Vertical Nominal Coverage (-6dB) (2) | 70° |
| Directivity Index (2) (3) | 8 dB |
| Material | Al |
| Mouth Height | 120 mm (4.72 in) |
| Mouth Width | 180 mm (7.09 in) |
| Depth | 85.9 mm (3.38 in) |
| Mouth Mounting Holes (4x) | 6.5 mm (0.26 in) |
| Net Weight | 460 g (1.01 lb) |
| Shipping Box (Single Carton Box) | 208 x 135 x 107 mm (8.2 x 5.3 x 4.2 in) |
| Shipping Weight | 567 g (1.25 in) |
| NET Air Volume filled by HF Horn | 0.4 dm^3 (0.014 ft^3) |
