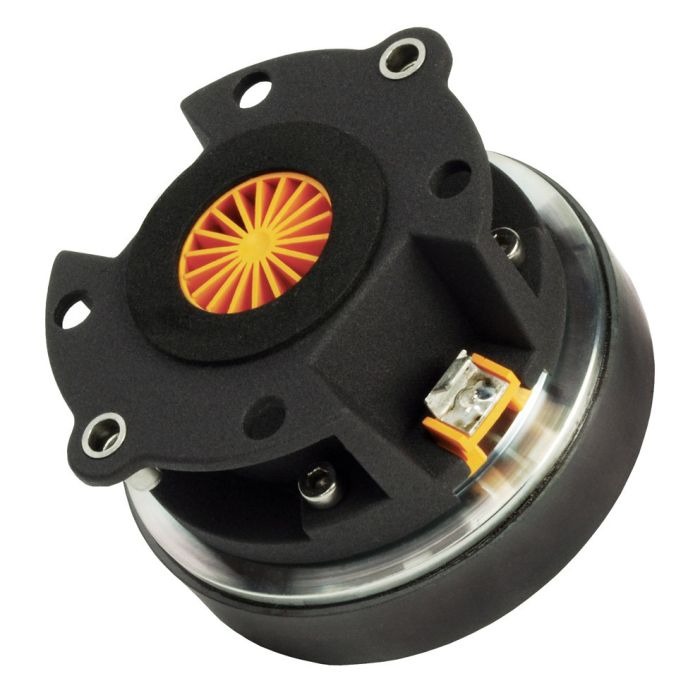

Faital Pro Compression driver HF105 , 16 ohm, 1 inch 40watt

Faital Pro Compression driver HF105 , 16 ohm, 1 inch 40watt

•  Product type : Compression driver
•  Brand : Faital Pro
•  Manufacturer reference : HF105
•  Product code : 00374113



•  Nominal impedance : 16 ohm
•  Dimensional category : 3.5 inch
•  Manufacturer sensitivity : 107 dB
•  Nominal power handling : 40 W
•  Bandwidth : 1400÷20000 Hz
•  Recommended min cutoff frequency : 1700 Hz
•  Exit diameter compression driver : 1.0 inch
•  Re : 11 ohm



•  Flux density : 1.5 T
•  Zmin : 13.5 ohm
•  Weight : ~1.2 kg
•  Voice coil diameter : 1.46 inch
•  Winding depth : 2.4 mm
•  Gap height : 2.6 mm
•  Outside diameter : 91 mm
•  Depth : 61 mm
•  Driver dimensions mouting holes : 5.0 mm
•  Driver mounting system : 2 points on diameter 76 mm
•  Front chape : Cylindrical
•  Magnet type : Ferrite
•  Winding material : Aluminium
•  Diaphragm former material : Kapton
•  Diaphragm material : Keton polymer
