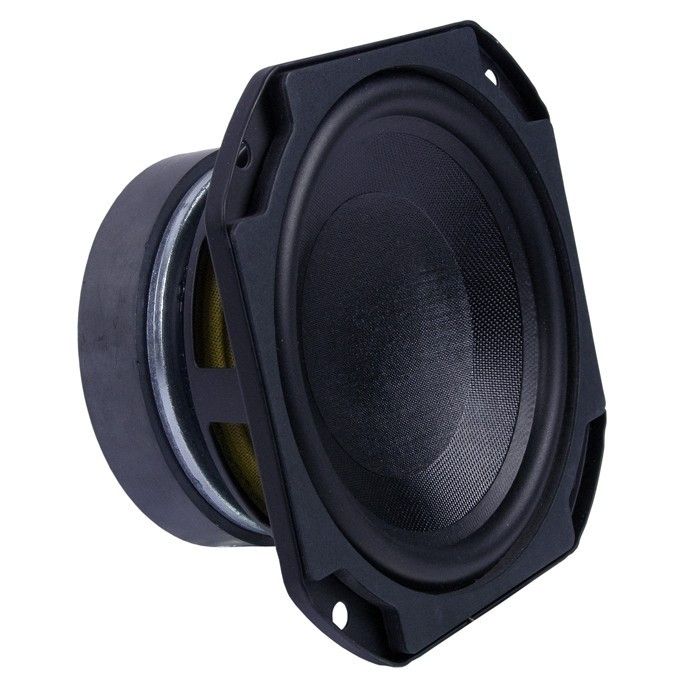

Faital Pro 5 FE 120 5" Speaker 80 W 8 Ohms

€ 47,31 € 39,10

SKU

FAI-FP5FE120A

Faital Pro 5 FE 120 5" Speaker 80 W 8 Ohms

General
- Product type : Cone driver
- Brand : Faital Pro
- Manufacturer reference : 5FE120
- Product code : 01303979
Informations
- Nominal impedance : 8 ohm
- Dimensional category : 5 inch, 5.5 inch
- Frequency coverage type : Midbass, Midrange, High midrange
- Manufacturer sensitivity : 88 dB
- Calculated sensitivity : 86.06 dB
- Nominal power handling : 80 W
- Bandwidth : 63÷6300 Hz
Fundamental parameters
- Sd : 79.8 cm²
- Mms : 11 gr
- Le : 0.41 mH
- Re : 5.4 ohm
- BL : 6.9 T.m
Small signal parameters
- Fs : 65 Hz
- Qes : 0.51
- Qms : 7.4
- Qts : 0.47
- Vas : 4.9 L
Datas
- Flux density : 1 T
- Xmax : ±5.25 mm
- EBP : 127 Hz
- Zmin : 6.2 ohm
- Fs / Qts : 138 Hz
- Vas * Qts² : 1.09 L
- Efficiency : 0.25 %
- Calculated efficiency : 0.26 %
- Demodulation ring : Yes
Dimensions
- Voice coil diameter : 1.26 inch
- Winding depth : 12.5 mm
- Gap height : 6 mm
- External dimensions : 124.5 | 144.8 mm
- Diamètre d'encastrement (mm) : 114 mm
- Front thickness : 6.5 mm
- Depth after front : 65 mm
- Diamètre aimant (mm) : 90 mm
Shape & Materials
- Front chape : Non cylindrical
- Magnet type : Ferrite
- Basket masterial : Acier
- Winding material : Copper
- Voice coil former : Kapton
- Surround material : Rubber

Write Your Own Review
