Faital Pro 3FE22A 3" Speaker 20 W 8 Ohm - Ferrite

€ 52,55 € 43,43

SKU

FAI-FP3FE22A

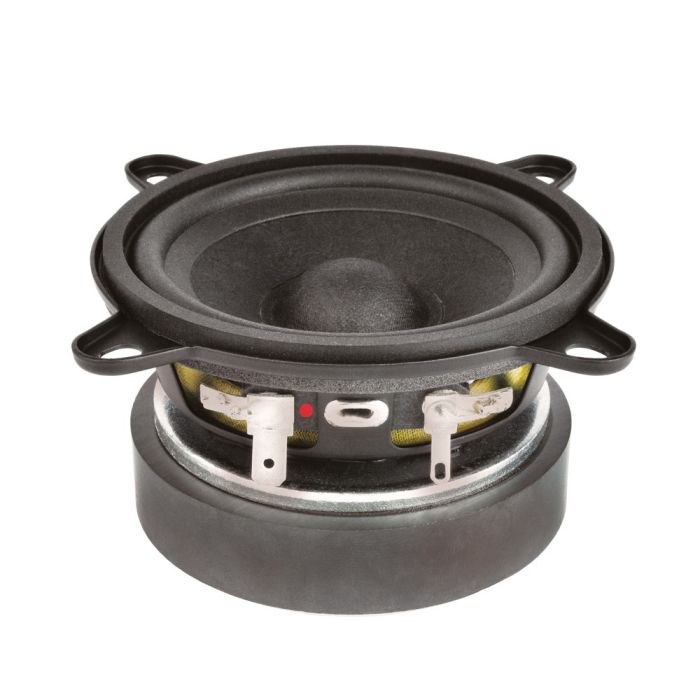

Faital Pro 3FE25-16 3" Speaker 20 W 8 Ohm - Ferrite

Faital Pro 3FE25-16 3" Speaker 20 W 8 Ohm - Ferrite

General
- Product type : Cone driver
- Brand : Faital Pro
- Manufacturer reference : 3FE25
- Product code : 00804128
Informations
- Nominal impedance : 8 ohm
- Dimensional category : 3 inch, 4 inch
- Frequency coverage type : Fullrange
- Manufacturer sensitivity : 90 dB
- Calculated sensitivity : 83.57 dB
- Nominal power handling : 20 W
- Bandwidth : 100÷20000 Hz
Fundamental parameters
- Sd : 30.2 cm²
- Mms : 2.4 gr
- Le : 0.1 mH
- Re : 12.3 ohm
- BL : 4.5 T.m
Small signal parameters
- Fs : 110 Hz
- Qes : 1.02
- Qms : 4.9
- Qts : 0.82
- Vas : 1.14 L
Datas
- Flux density : 1.1 T
- Xmax : ±1.83 mm
- EBP : 108 Hz
- Zmin : 13.4 ohm
- Fs / Qts : 134 Hz
- Vas * Qts² : 0.77 L
- Efficiency : 0.14 %
- Calculated efficiency : 0.15 %
- Demodulation ring : Yes
Dimensions
- Voice coil diameter : 0.75 inch
- Winding depth : 5 mm
- Gap height : 4 mm
- External dimensions : 81 | 105.6 mm
- Diamètre d'encastrement (mm) : 73.6 mm
- Front thickness : 6.5 mm
- Depth after front : 48 mm
- Diamètre aimant (mm) : 71.55 mm
Shape & Materials
- Front chape : Non cylindrical
- Magnet type : Ferrite
- Basket masterial : Acier
- Winding material : Aluminium
- Voice coil former : Kapton
- Surround material : Rubber
