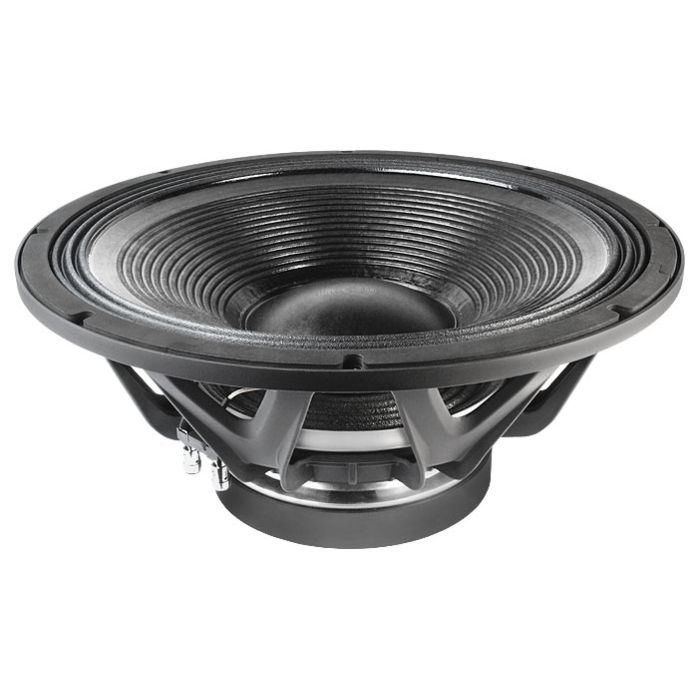

Faital Pro 18HW1070 18" - 1600 W - 97 dB - 8 Ohm laag Luidspreker

Faital Pro 18HW1070 18" - 1600 W - 97 dB - 4 Ohm laag Luidspreker

Name: Faital Pro 18HW1070 18" - 1600 W - 97 dB - 4 Ohm laag Luidspreker
SKU: FAI-FP18HW1070C
Price: 555.716701 EUR
Availability: PreOrder

Schrijf uw review over dit product

€ 555,72 € 459,27

SKU

FAI-FP18HW1070C

Faital Pro 18HW1070 18" - 1600 W - 97 dB - 4 Ohm laag Luidspreker

Details

Reviews

Faital Pro 18HW1070 18" - 1600 W - 97 dB - 4 Ohm laag Luidspreker

Nominal Specifications

Nominal Diameter	460 mm (18 in)
Overall Diameter	460 mm (18.11 in)
Bolt Circle Diameter	440 mm (17.32 in)
Baffle Cutout Diameter	422 mm (16.61 in)
Depth	223 mm (8.78 in)
Flange and Gasket Thickness	14 mm (0.55 in)
Net Weight	14.7 Kg (32.4 lb)
Shipping Box (Single Carton Box)	490 x 485 x 275 mm (19.3 x 19.1 x 10.8 in)
Shipping Weight	16.2 Kg (35.7 lb)

Technical Parameters

Nominal Impedance	4 Ohm
Minimum Impedance	3.2 Ohm
AES Power Handling (1)	1600 W
Maximum Power Handling (2)	3200 W
Sensitivity (1W/1m)	97 dB
Frequency Range	30÷1500 Hz
Voice Coil Diameter	100 mm (4 in)
Winding Material	Cu
Former Material	Glass Fiber
Winding Depth	31 mm (1.22 in)
Magnetic Gap Depth	15 mm (0.59 in)
Flux Density	1.1 T
Magnet	Ferrite Ring
Basket Material	Aluminum
Demodulation	Triple Al Dem. Ring
Cone Surround (3)	Triple Roll
NET Air Volume filled by Loudspeaker	7.4 dm^3 (0.261 ft^3)
Spider Profile	2x non-adjacent symmetrical constant height waves

Thiele and small parameters

Fs	32 Hz
Re	5.4 Ohm
Qes	0.39
Qms	10.0
Qts	0.37
Vas	171.2 dm^3 (6.05 ft^3)
Sd	1124 cm^2 (174.22 in^2)
Xmax (4)	13.00 mm
Xdamage (5)	30 mm
Mms	259.0 g
Bl	27 N/A
Le	1.68 mH
Mmd	237.7 g
Cms	0.10 mm/N
Rms	5.2 Kg/s
Eta Zero	1.41 %
EBP	82 Hz

PART NUMBER (P/N)

Push Terminals - 8 Ohm Version

04604151

Notes:

(1) 2 Hours Test According to AES 2-1984 Rev. 2003

(2) Maximum power is defined as 3dB greater than nominal power.

(3) Treated Polycotton

(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)

(5) Maximum excursion before permanent damage
