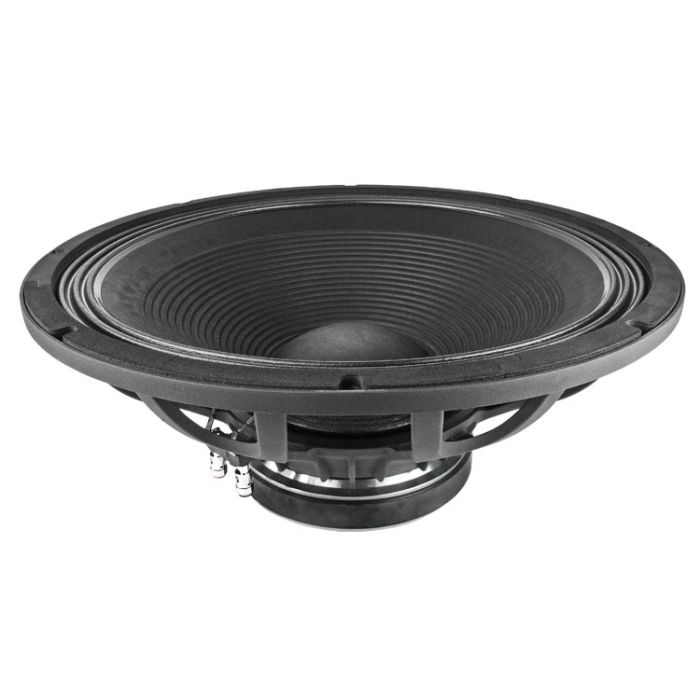

Faital Pro 18HP1010 18" - 1000 W - 98 dB - 8 Ohm laag Luidspreker

Name: Faital Pro 18HP1010 18" - 1000 W - 98 dB - 8 Ohm laag Luidspreker
SKU: FAI-FP18HP1010A
Price: 425.375501 EUR
Availability: PreOrder

Schrijf uw review over dit product

€ 425,38 € 351,55

SKU

FAI-FP18HP1010A

Faital Pro 18HP1010 18" - 1000 W - 98 dB - 8 Ohm laag Luidspreker

Details

Reviews

Faital Pro 18HP1010 18" - 1000 W - 9Nominal Specifications

Nominal Specifications

Nominal Diameter	460 mm (18 in)
Overall Diameter	460 mm (18.11 in)
Bolt Circle Diameter	440 mm (17.32 in)
Baffle Cutout Diameter	421 mm (16.57 in)
Depth	203.5 mm (8.01 in)
Flange and Gasket Thickness	13.7 mm (0.54 in)
Net Weight	10.1 Kg (22.3 lb)
Shipping Box (Single Carton Box)	503 x 500 x 258 mm (19.8 x 19.7 x 10.2 in)
Shipping Weight	11.5 Kg (25.4 lb)

Technical Parameters

Nominal Impedance	8 Ohm
Minimum Impedance	6.9 Ohm
AES Power Handling (1)	1000 W
Maximum Power Handling (2)	2000 W
Sensitivity (1W/1m)	98 dB
Frequency Range	35÷2000 Hz
Voice Coil Diameter	100 mm (4 in)
Winding Material	Cu
Former Material	Glass Fiber
Winding Depth	23 mm (0.91 in)
Magnetic Gap Depth	10.5 mm (0.41 in)
Flux Density	1.05 T
Magnet	Ferrite Ring
Basket Material	Aluminum
Demodulation	No
Cone Surround (3)	Triple Roll
NET Air Volume filled by Loudspeaker	7.1 dm^3 (0.251 ft^3)
Spider Profile	2x non-adjacent symmetrical constant height waves

Thiele and small parameters

Fs	35 Hz
Re	5.3 Ohm
Qes	0.42
Qms	7.8
Qts	0.40
Vas	215.3 dm^3 (7.60 ft^3)
Sd	1134 cm^2 (175.77 in^2)
Xmax (4)	9.75 mm
Xdamage (5)	21.9 mm
Mms	175.2 g
Bl	22 N/A
Le	1.8 mH
Mmd	152.7 g
Cms	0.12 mm/N
Rms	4.94 Kg/s
Eta Zero	2.13 %
EBP	83 Hz

PART NUMBER (P/N)

Push Terminals - 8 Ohm Version

04604071

Notes:

(1) 2 Hours Test According to AES 2-1984 Rev. 2003

(2) Maximum power is defined as 3dB greater than nominal power.

(3) Treated Polycotton

(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)

(5) Maximum excursion before permanent damage

Download High Resolution Curves

Quick acoustic specs

Nominal Impedance	8 Ohm
Minimum Impedance	6.9 Ohm
AES Power Handling (1)	1000 W
Sensitivity (1W/1m)	98 dB
Frequency Range	35÷2000 Hz
Flux Density	1.05 T
Magnet	Ferrite Ring
Demodulation	No
Cone Surround (2)	Triple Roll
Fs	35 Hz
Re	5.3 Ohm
Qes	0.42
Qms	7.8
Qts	0.40
Vas	215.3 dm^3 (7.60 ft^3)
Sd	1134 cm^2 (175.77 in^2)
Xmax (3)	9.75 mm
Xdamage (4)	21.9 mm
Mms	175.2 g
Bl	22 N/A
Le	1.8 mH
Mmd	152.7 g
Cms	0.12 mm/N
Rms	4.94 Kg/s
Eta Zero	2.13 %
EBP	83 Hz
