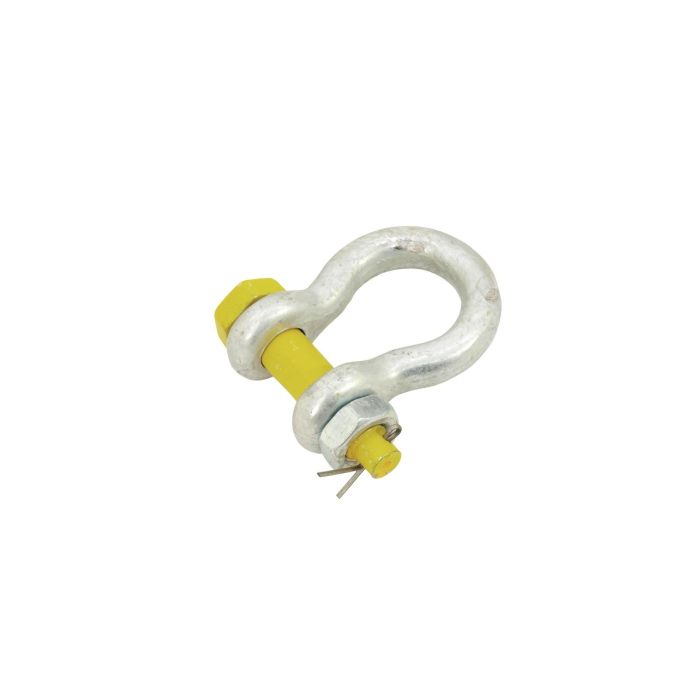

EUROLITE Shackle 16mm maximum load WLL 3250 kg
€ 5,64
€ 4,66
?
SKU
st58011060
EUROLITE Shackle 16mm maximum load WLL 3250 kg
EUROLITE Shackle 16mm maximum load WLL 3250 kg
Features
- Complies with DIN EN 13889:2009-02
- Nominal size: 16 mm
- Yellow 19 mm screw bolt (X-type) with hexagon head, hexagon nut and safety pin
Technical specifications
| Maximum load WLL (5-fold): | 3.25 t |
| Maximum load BGV C1 (10-fold): | 1.6 t |
| Identification: | 5/8 WLL 3¼ t |
| Temperature range: | -20° C to +200° C |
| Diameter: | 16 mm |
| Dimensions: | 107 x 95 x 38 mm |
| Weight: | 0.680 kg |
| Maximum load WLL (5-fold): | 3250 kg |
| Standard: | DIN EN 13889:2009-02, |
| Color: | Silver |
