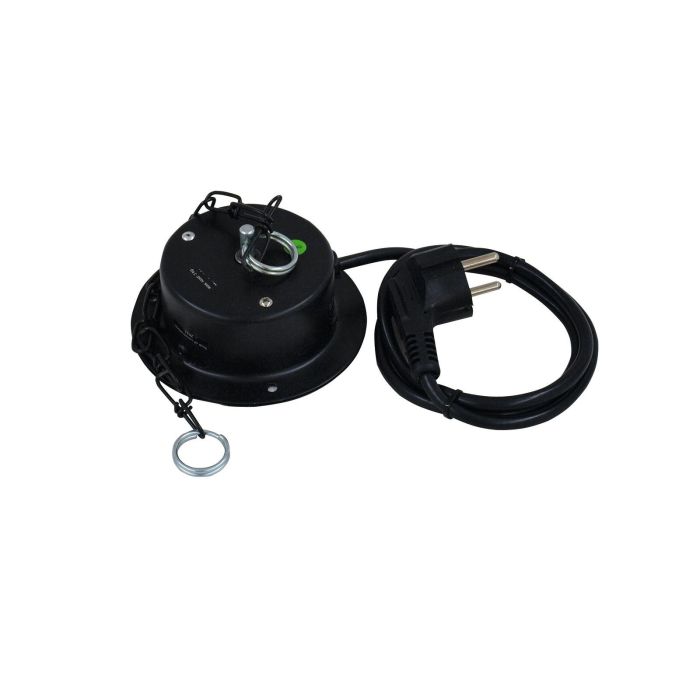

EUROLITE MD-1030 Rotary Motor with Plug
EUROLITE MD-1030 Rotary Motor with Plug
EUROLITE MD-1030 Rotary Motor with Plug
Features
Motor for mirror balls up to 30 cm with 3 RPM
Suitable for driving mirror balls up to a maximum weight of 3 kg
This weight corresponds with a diameter of 30 cm for the EUROLITE mirror balls
The maximum load always means the mirror ball weight including the mirror ball chain and the fixation material
3 rotations per minute
Ready for connection with power plug
For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
The motor always has to be installed with a secondary safety attachment
Before taking into operation for the first time, the installation has to be approved by an expert
Technical specifications
Power supply: 230 V AC, 50 Hz
Power consumption: 4 W
IP classification: IP20
Protection class: Class I
Power connection: Fixed Power supply cord with safety plug
Cable length: Approx. 0.8 m
Rotation: 3 RPM
Maximum load: 3 kg
Max. mirror ball diameter: 30 cm (EUROLITE)
Dimensions: Height: 5.8 cm
Diameter: Ø 10.8 cm
Weight: 370 g
