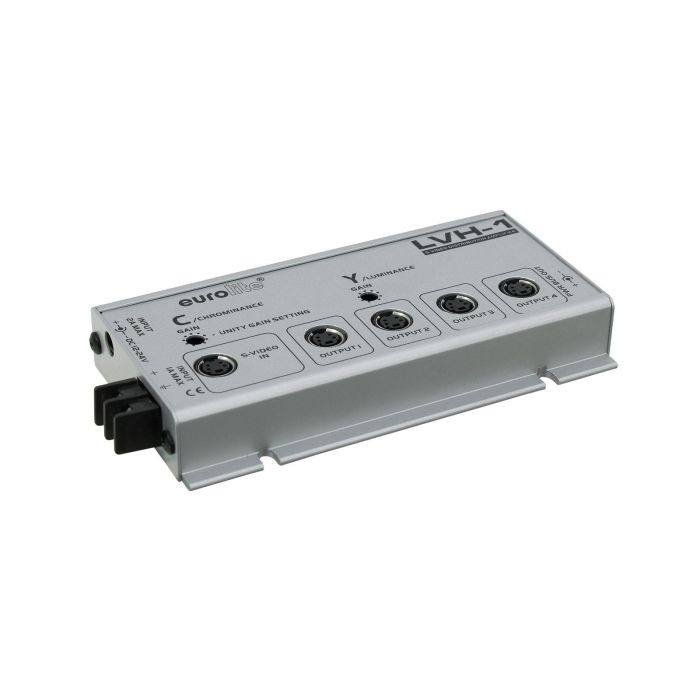

EUROLITE LVH-1 S-video distribution amp
€ 37,81
€ 31,25
?
SKU
st81013201
EUROLITE LVH-1 S-video distribution amp
EUROLITE LVH-1 S-video distribution amp
Features
- S-Video (Y-C) distribution
- Four separate outputs
- Adjustable gain for each component
- 75 ohms input and outputs via mini-DIN-4 plugs
- Wide bandwidth - flat to 10 MHz
- Super compact metal housing
- Suitable for wall mounting
- 12-24 V DC power supply via block terminals or power jack (PSU not included in the delivery)
- Feed-through output allows to power another LVH-1
- Daisy-chain connection possible
Technical specifications
| Power supply: | 12-24 V DC, 75 mA |
| 1 x S-video input: | 1 Vpp/ 75 ohms, 4-pin mini-DIN |
| 4 x S-video outputs: | 1 Vpp/ 75 ohms, 4-pin mini-DIN |
| Gain range: | 0 dB to +6 dB |
| S/N ratio: | >75 dB |
| Output isolation: | >45 dB |
| Differential gain: | 0.1% |
| Differential phase: | 0.1 degree |
| Dimensions (L x W x H): | 164 x 83 x 23 mm |
| Weight: | 0,3 kg |
| Frequency range: | 10 - 10000000 Hz |
| Height: | 2,3 cm |
| Depths: | 8,3 cm |
| Width: | 16,4 cm |
