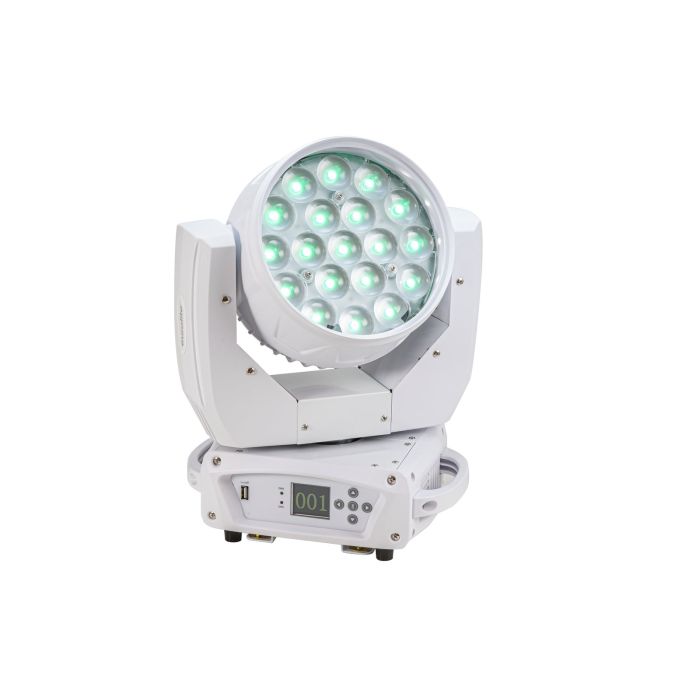

EUROLITE LED TMH-X4 Moving Head Wash Zoom white

EUROLITE LED TMH-X4 Moving Head Wash Zoom white
Features

Washlight with 19 intense 15 W LEDs (4in1), motorized zoom and white housing

Mains input and output for power linking up to 8 units
19 powerful LEDs 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
3 segments separate controlling
Positioning within 630° PAN and 270° TILT
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor-driven
Integrated Showprograms
Can be operated in 16; 24 CH mode
The device is cooled by temperature-controlled fan at the Head; cooling fan at the Base
Controlling by stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
Flicker-free
With a beam angle of 1° - 40°
Multicolor LCD display
Color blend stepless; color change adjustable; Dimmer electronic
Strobe effect

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 225 W
IP classification: IP20

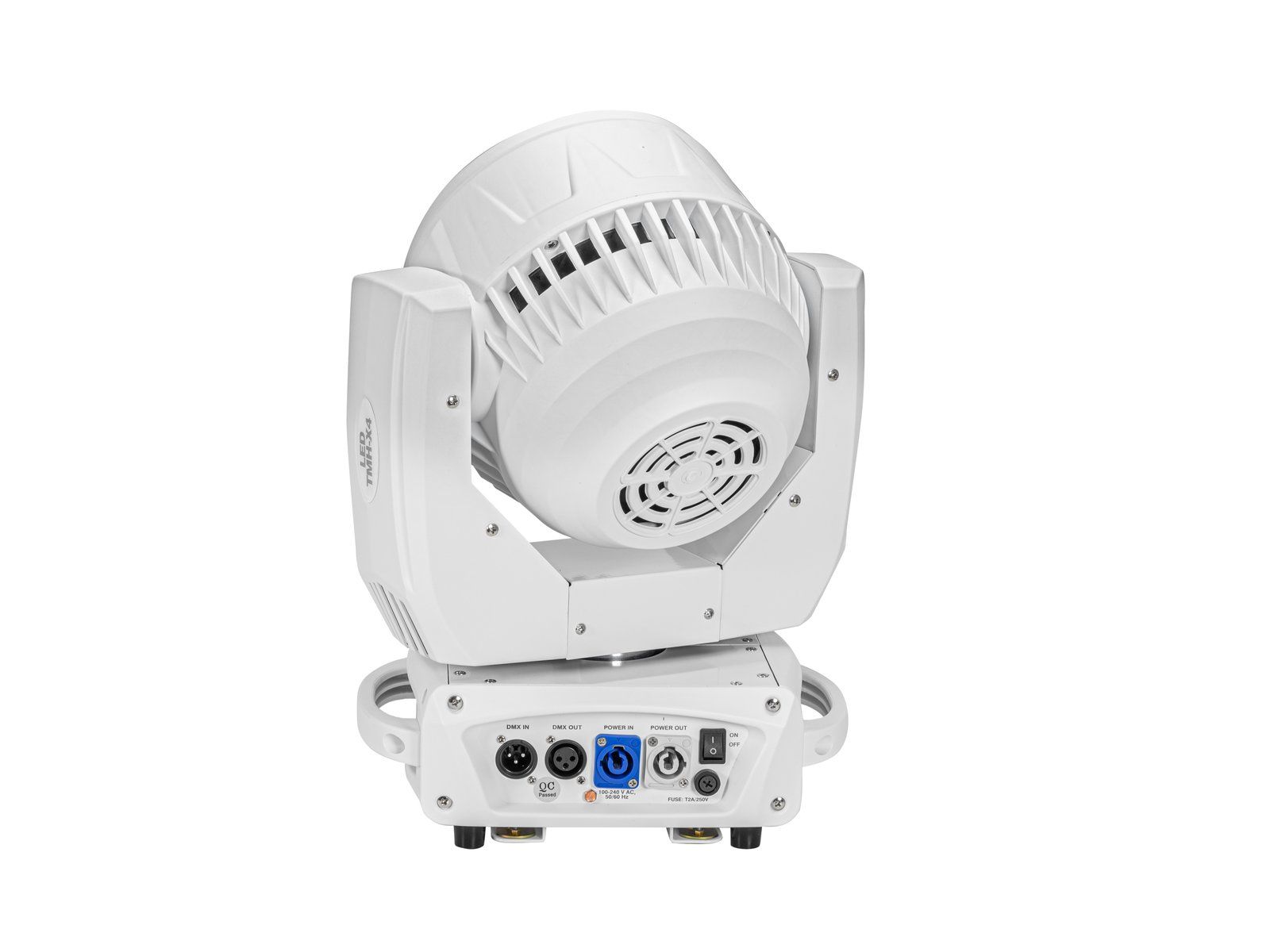

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 2 A Fuse replaceable
Lamp type: LED lamp
LED: 19 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement: 270° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement: 630° Exact positioning (16 bit resolution) Auto position correction (feedback)
Equipment: Zoom motor-driven
DMX channels: 16; 24
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Temperature-controlled fan at the Head
Cooling fan at the Base
Control: Stand-alone; DMX; Sound to light via Microphone; Master/slave function; Light´J; LED PC-Control 512; EASY SHOW 1; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain
Beam angle: 1° - 40°
Beam angle (1/2 peak): 1 - 25°
Beam angle (1/10 peak): 8 - 40°
Illuminance in Lux (lx): Narrow red (R) 3m: 2779 lx, 6m: 763 lx
Narrow green (G) 3m: 7893 lx, 6m: 1841 lx
Narrow blue (B) 3m: 1468 lx, 6m: 390 lx
Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx
Narrow all 3m: 19553 lx, 6m: 5001 lx
Wide red (R) 3m: 272 lx, 6m: 73 lx
Wide green (G) 3m: 583 lx, 6m: 160 lx
Wide blue (B) 3m: 117 lx, 6m: 34 lx
Wide cold white (CW) 3m: 740 lx, 6m: 211 lx
Wide all 3m: 1568 lx, 6m: 439 lx
Housing color: White
Display type: Multicolor LCD display
Dimensions: Width: 30,5 cm
Depth: 20,0 cm
Height: 40,0 cm
Weight: 8,62 kg
Noise classification: Class 3 (clearly perceptible sounds)
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
