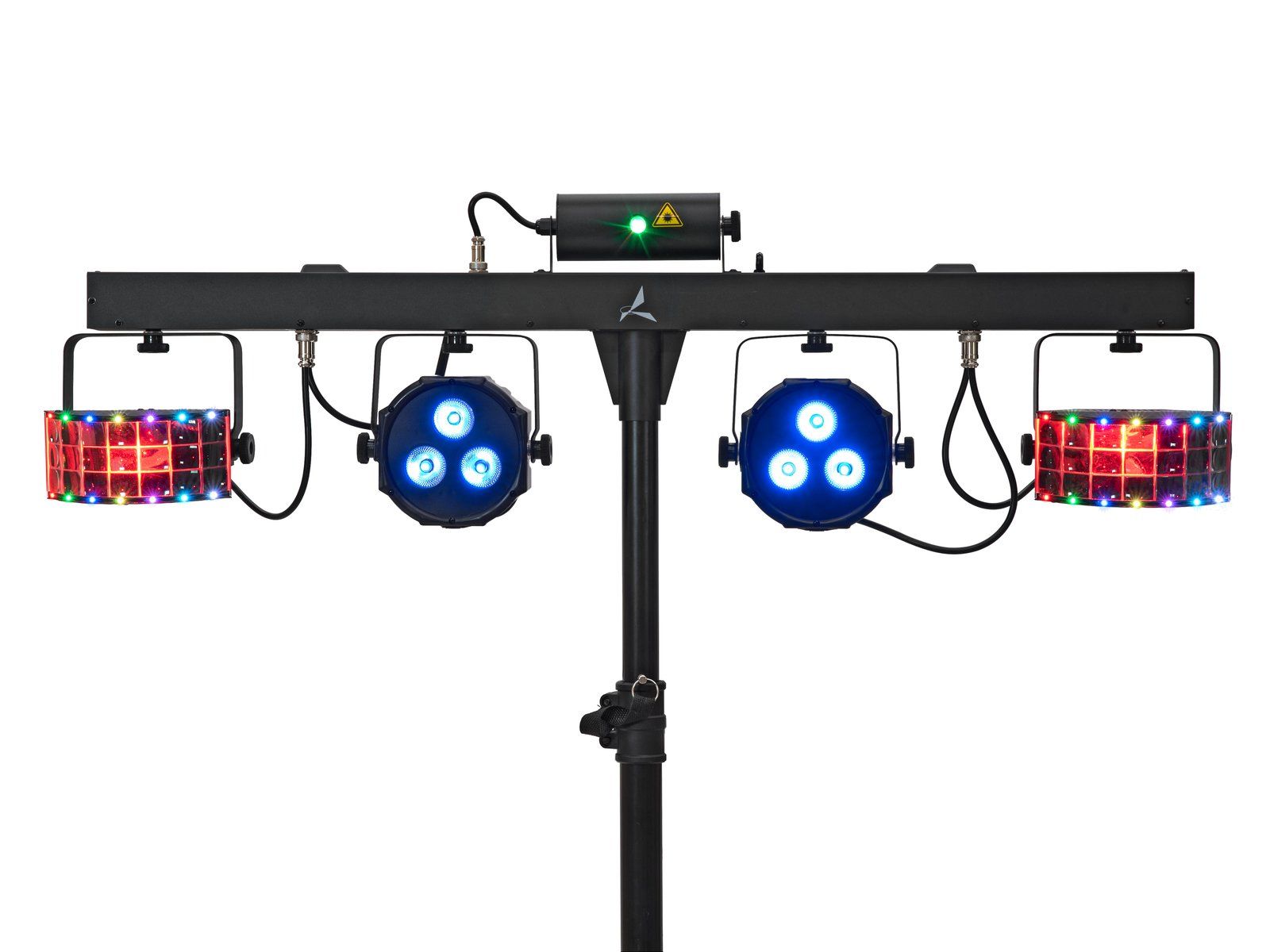

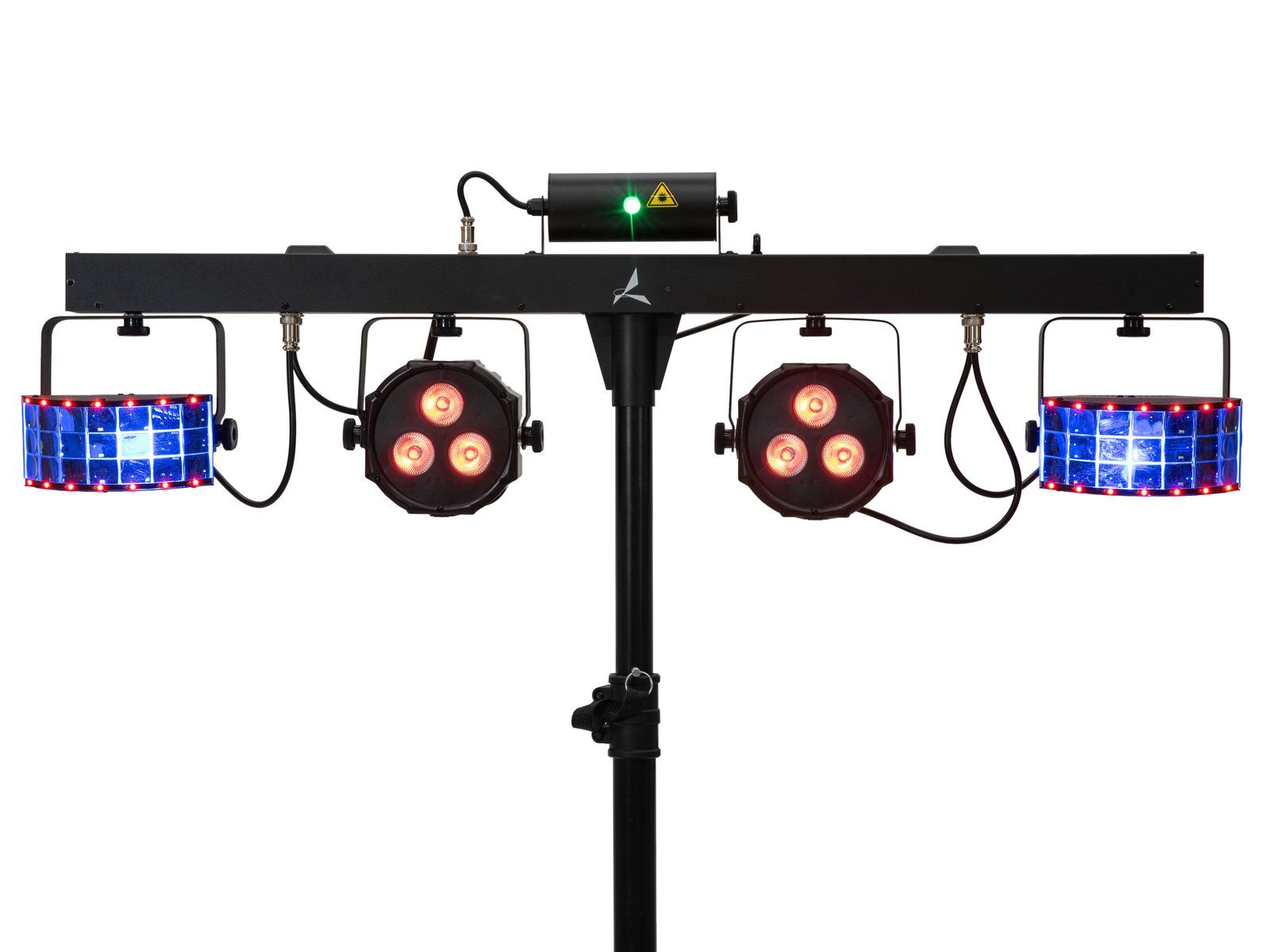

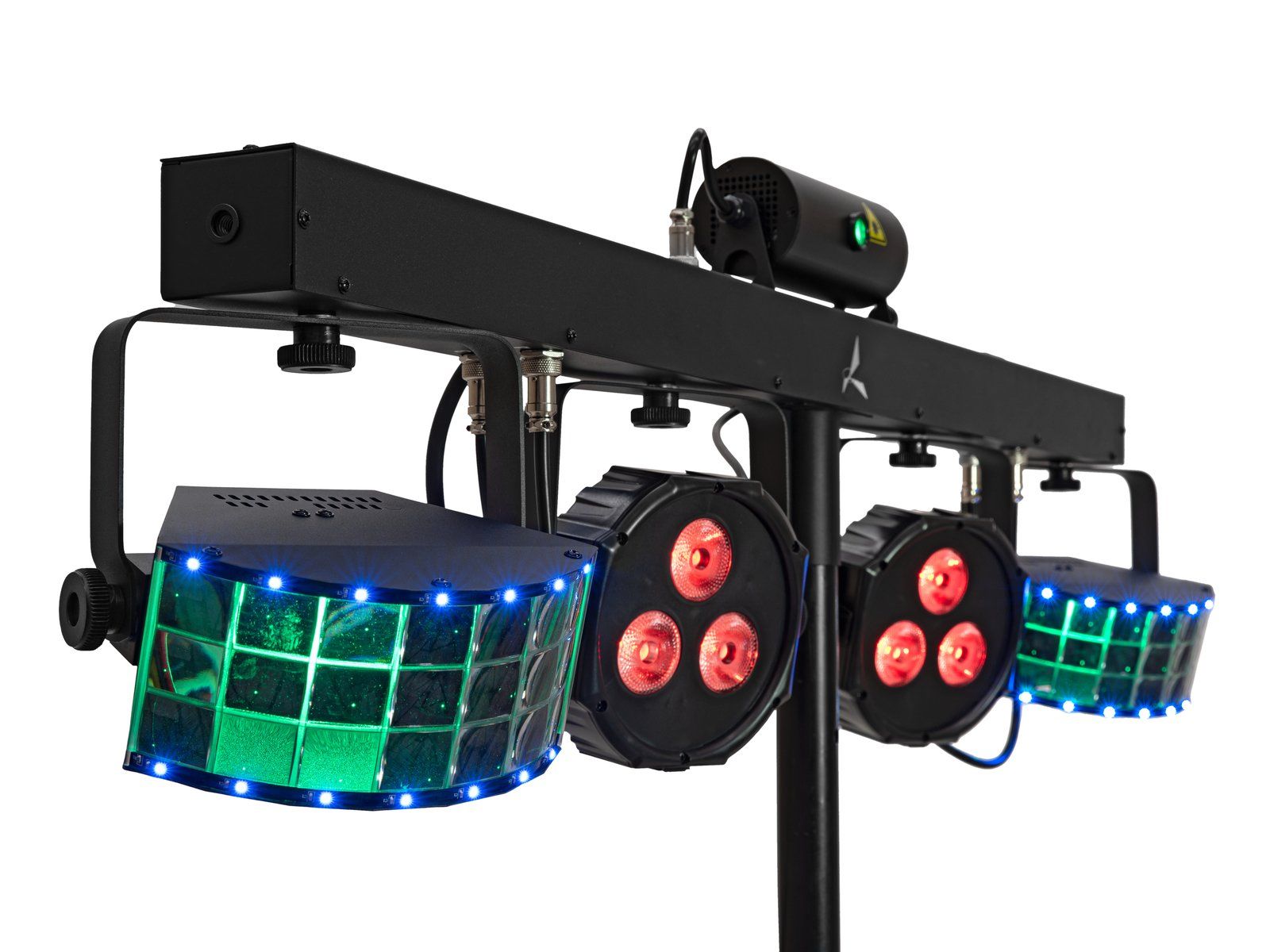

EUROLITE LED KLS Laser Bar FX AIR
€ 425,92
€ 352,00
?
SKU
st51741099
EUROLITE LED KLS Laser Bar FX AIR
EUROLITE LED KLS Laser Bar FX AIR
Features
Bar with 2 spots, 2 derbies, show laser, twinkle effect, AirW wireless system (2.4 GHz) and RF remote control
- Crossbar with integrated DMX control unit and stand sleeve
- Integrated AirW radio transceiver for wireless master/slave operation
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- 2 laser diodes project hundreds of red and green laser beams

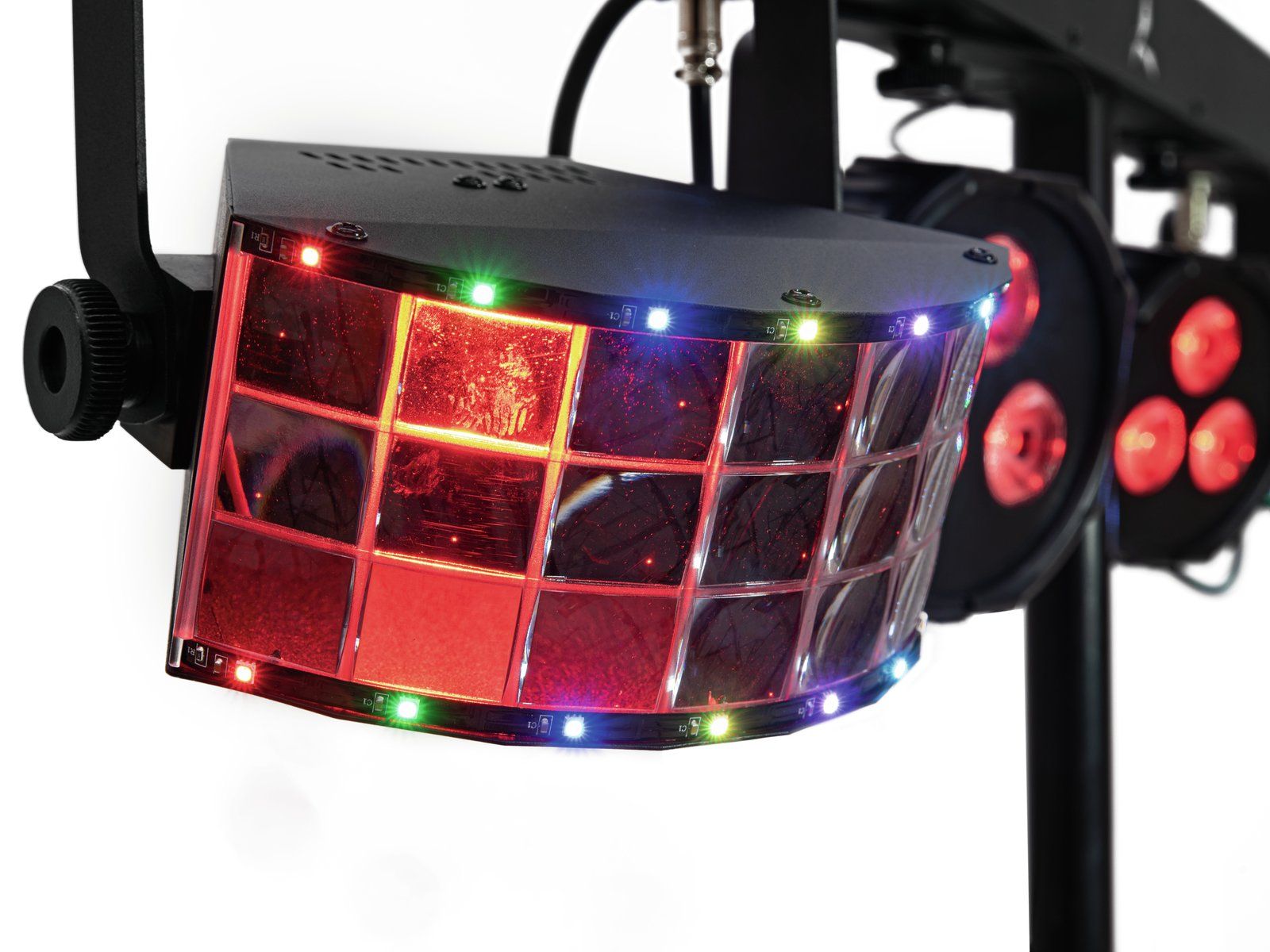

- 2 rotating derbies for mirror ball effects
- When fog is used, this effect becomes especially attractive
- Dimmer electronic; color blend stepless; program selection; color change programs; color fade programs; running light programs; program speed adjustable
- Spot effect; laser; multi beam effect; strobe effect
- Integrated show programs
- Flicker-free
- Control via stand-alone; DMX; AirW; sound to light via microphone; master/slave function; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional)
- DMX fail mode (blackout; hold; full on; auto)

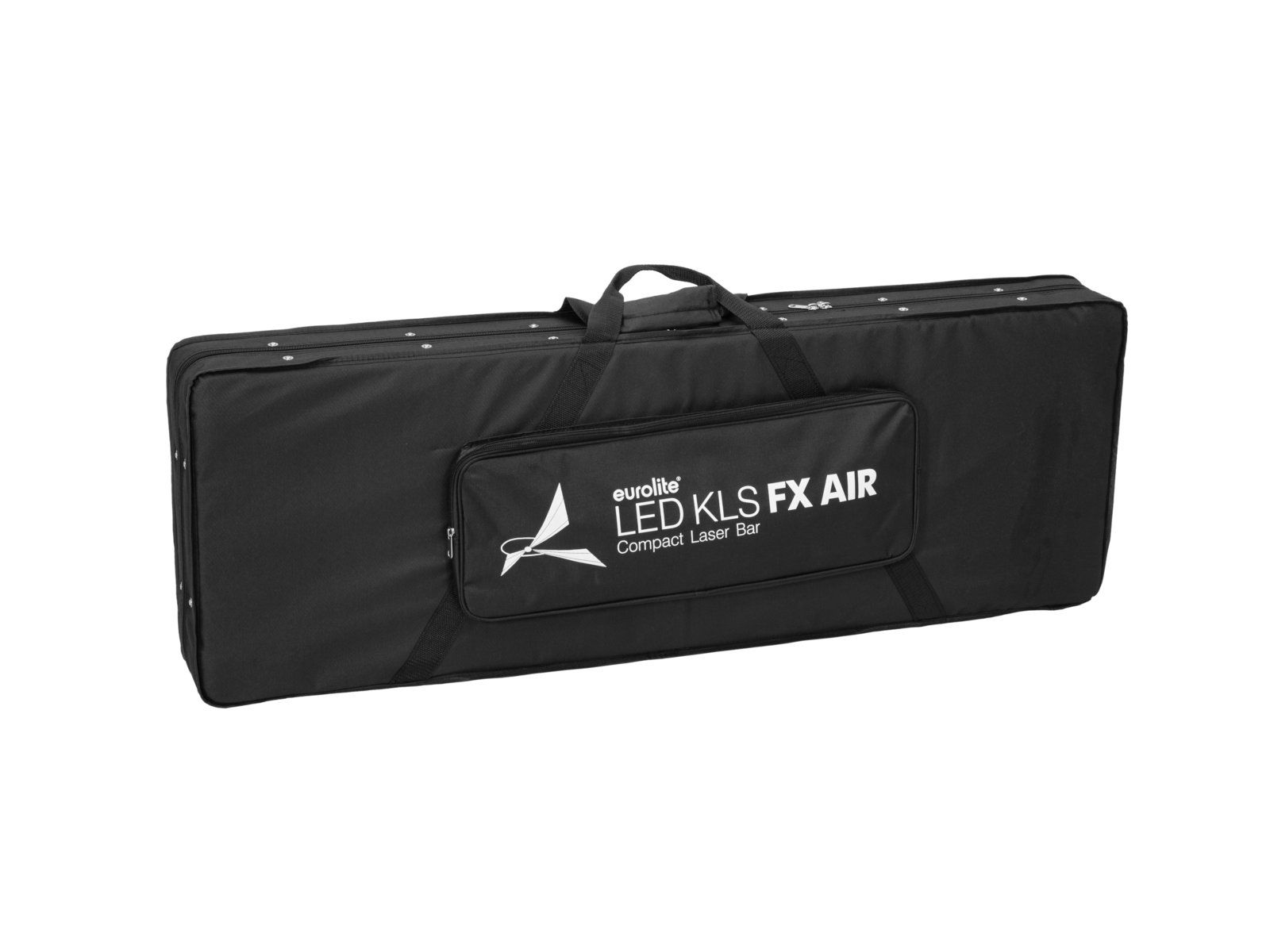

- The article is delivered with practical transport bag
- With mounting bracket
- Monochrome 4 digit 7-segment LED display
- The device is cooled by cooling fan
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- For application areas such as: Wedding/gala/events; party room; mobile use; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
- Direct color selection
- Preprogrammed in Light Captain; Colorchief
- AirW: operating range up to 70m
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 3 powerful LEDs 8 W high-power 4in1 QCL RGB/WW (homogenous color mix)
2 spots controlled separately - With a beam angle of 12°
light effect
- 4 powerful LEDs 3 W high-power R/G/B/W
- 14 powerful LEDs 0,2 W SMD 3535 3in1 TCL RGB (homogenous color mix)
2 spots controlled separately
remote control
- Operating range up to 30m
Package contents
- 1 x device, 1 x power cord, 1 x user manual, 1 x declaration of conformity, 1 x remote control, 2 x knurled screw, 2 x mounting bracket, 2 x washer, 1 x bag, 1 x battery
Technical specifications
Power supply: | 100-240 V AC, 50/60 Hz AC |
Power consumption: | 65 W |
IP classification: | IP20 |
Protection class: | Protection class I |

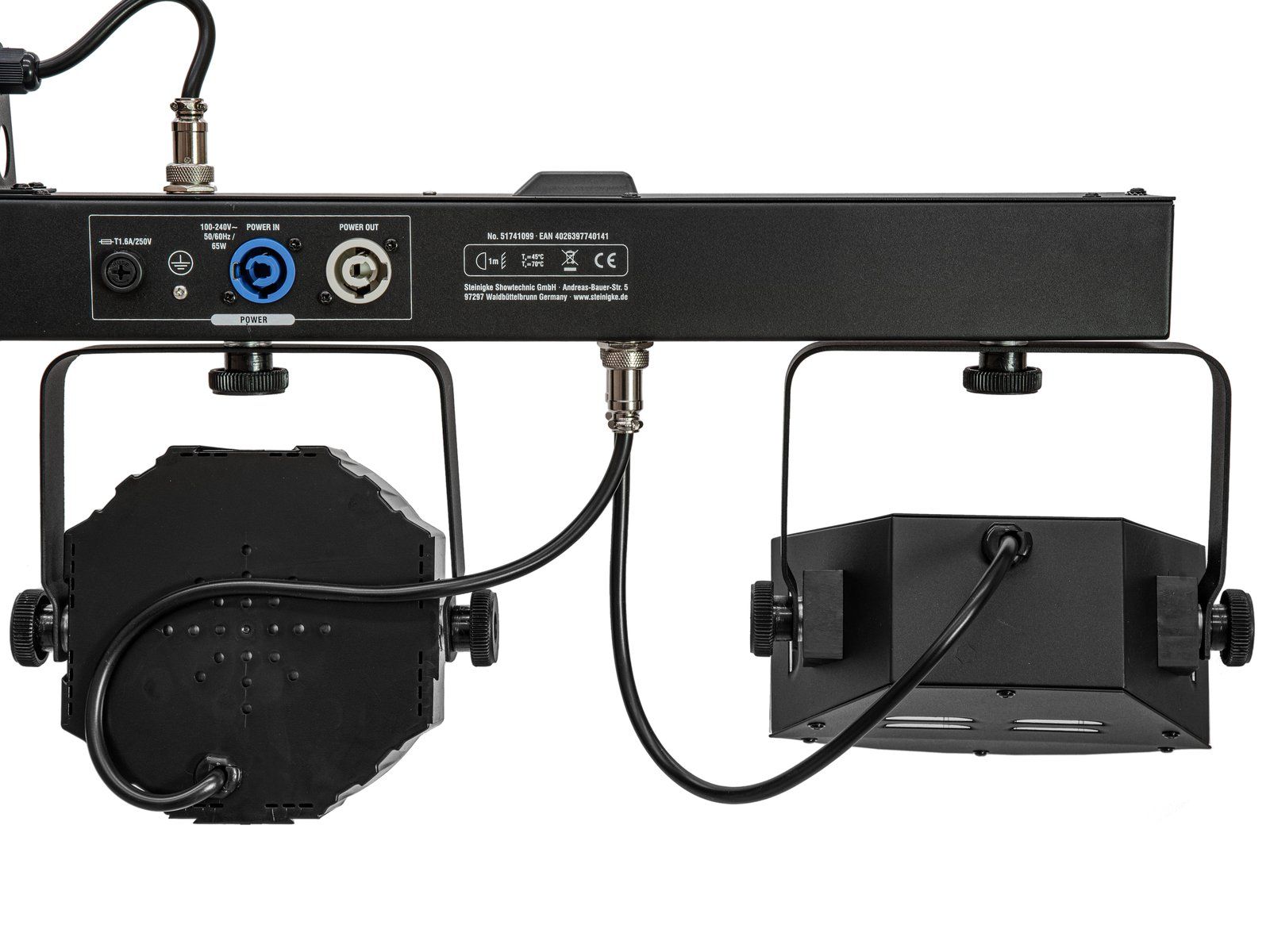

Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Cable construction: | 3 x 1,0 mm² H05VV-F |
Cable length: | 3 m |
Power output: | 1 x P-Con (gray), mounting version Bypass |
Device fuse: | 5 x 20 mm, T 1,6 A fuse replaceable |
Fuse: | T 5 A fuse fix on board |
Lamp type: | LED lamp |
DMX channels: | 3; 8; 11; 24; 27 |
DMX input: | 1 x 3-pin XLR (M) mounting version 1 x USB, type A |
DMX output: | 1 x 3-pin XLR (F) mounting version Bypass |
Cooling: | 3 x cooling fan |
Control: | Stand-alone; DMX; AirW; sound to light via microphone; master/slave function; wireless remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); wireless footswitch (optional) |
Preprogrammed in: | Light Captain; Colorchief |
Projection: | Flicker-free |
Range: | AirW: range up to 70m |
Carrier frequency: | 2,4 GHz |
DMX fail mode: | Blackout; hold; full on; auto |
Color temperature: | 3100K; 5300K |
Distance to wall: | 500 mm |
Housing color: | Black matte |
Attachment system: | Tube: Ø 35mm 2x mounting bracket |
Display type: | Monochrome 4 digit 7-segment LED display |
USB port: | 1 x type A |
Diameter mounting holes: | 2 x Ø6mm |
Use of brands: | Built with SEETRONIC connector |
Material: | Metal, painted |
Dimensions: | Length: 103 cm Depth: 8,2 cm Height: 33,6 cm |
Weight: | 8,10 kg |
Noise classification: | Class 2 (slight noise) |
Remote control | |
Battery: | 1 x 12 V 23AE alkaline manganese built-in |
Range: | Range up to 30m |
Carrier frequency: | 433,92 MHz |
Laser | |
Laser class: | 2M |
Laser color: | R/G |
Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
Light effect | |
LED type: | 4 x 3 W high-power R/G/B/W 14 x 0,2 W SMD 3535 3in1 TCL RGB (homogenous color mix) |
Spotlight | |
LED type: | 3 x 8 W high-power 4in1 QCL RGB/WW (homogenous color mix) |
Beam angle: | 12° |
Beam angle (1/2 peak): | Spot 12° multicolor |
Beam angle (1/10 peak): | Spot 30° |
