EUROLITE LED CAT-80 Beam Effect 80w cob led
€ 323,30
€ 267,19
?
SKU
st51918595
EUROLITE LED CAT-80 Beam Effect
EUROLITE LED CAT-80 Beam Effect
Features
LED beam effect with cold white 80 W COB LED and gobo wheel
- 3 different motion axes
- Rotating faceted mirror inside

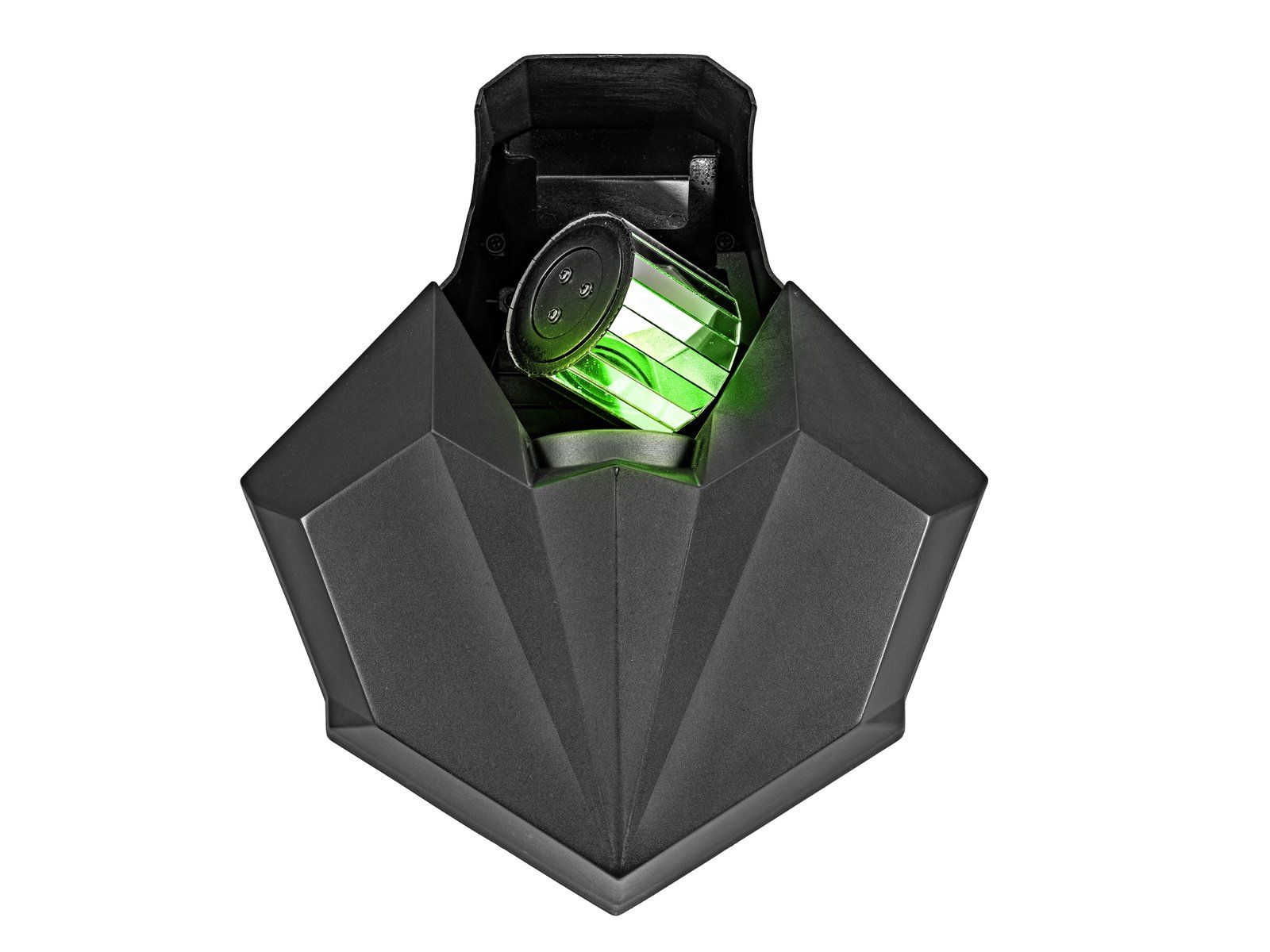

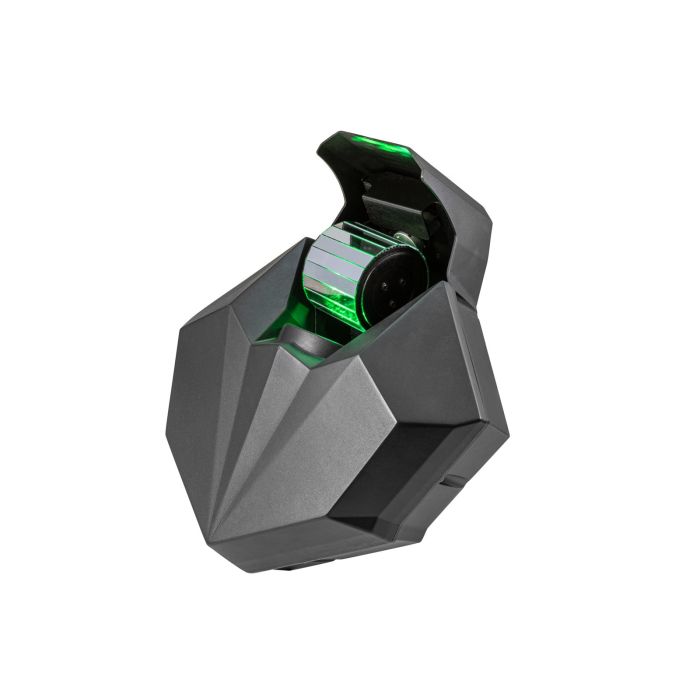

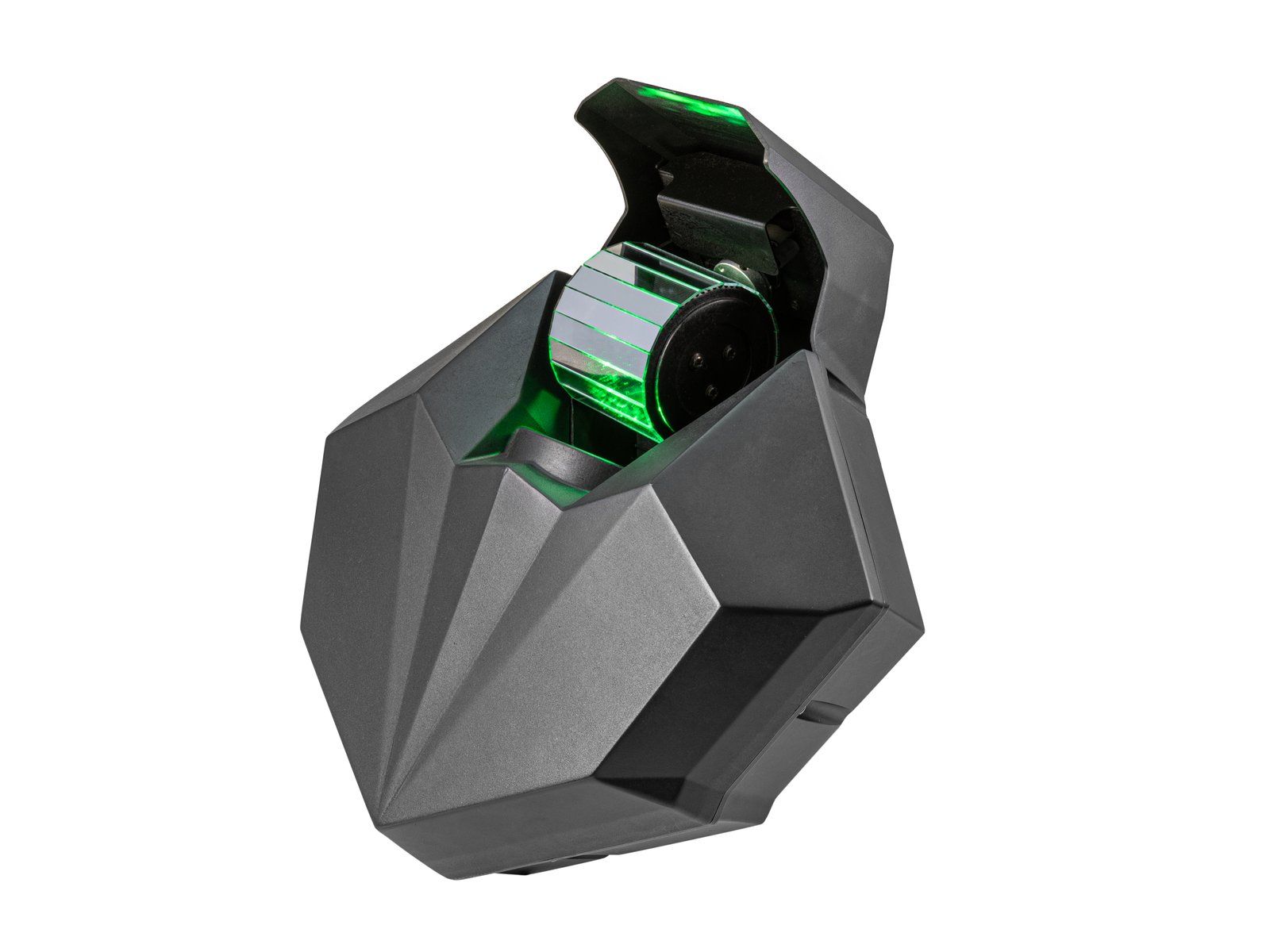

- Rotating and swiveling mirror cylinder
- Generates countless moving patterns in the room
- 1 powerful LED 80 W COB (chip-on-board) cold white (CW)
- Gobo wheel with static gobos; focus manual
- Dimmer electronic
- Mirror cylinder effect; strobe effect

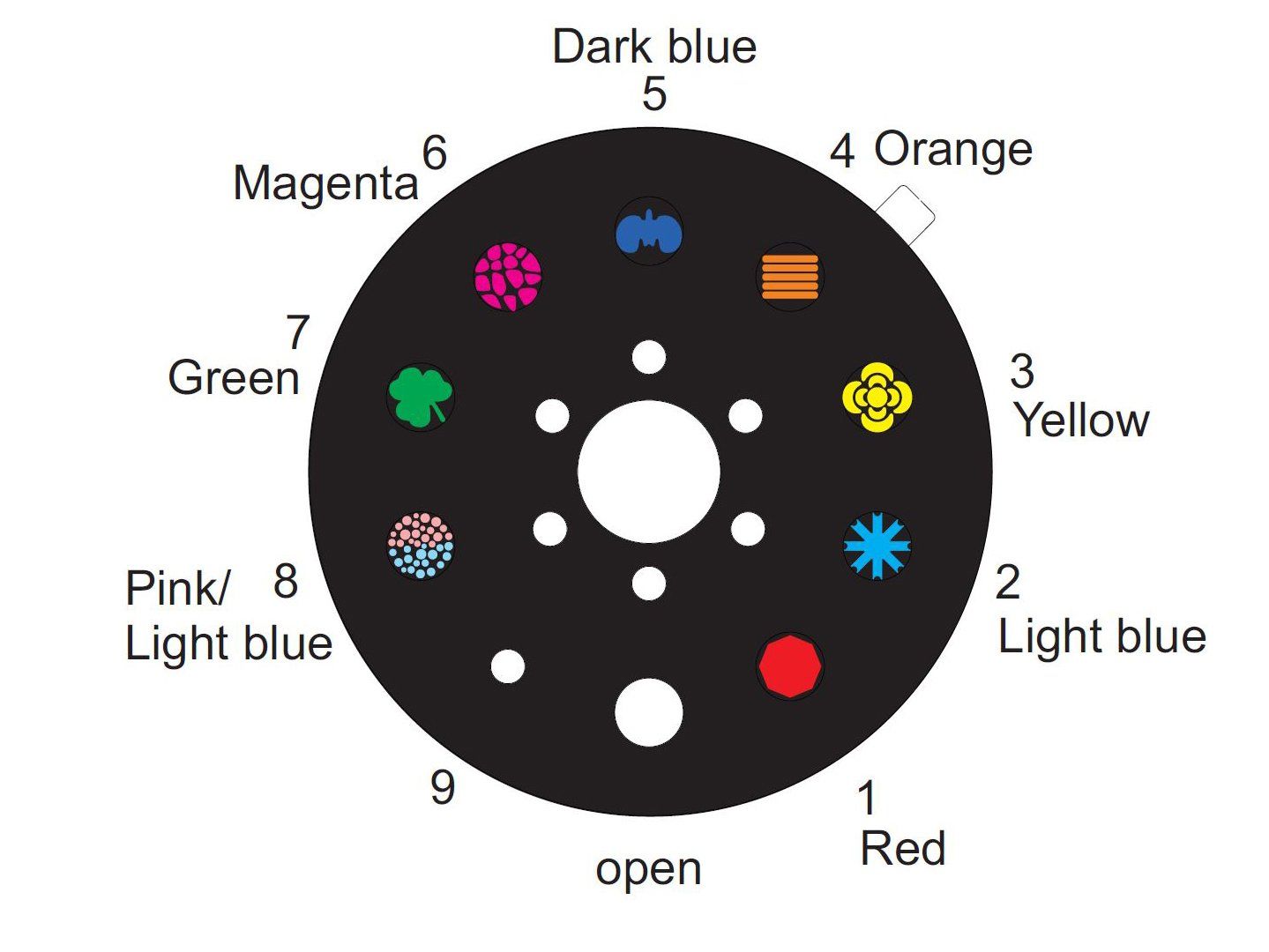

- Gobo wheel with static gobos, 9 color gobos and open
- The device is cooled by cooling fan
- Control via stand-alone; master/slave function; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
- Flicker-free
- OLED display
- For application areas such as: Clubs/dancing school; party room; stage; mobile djs / entertainer; rental

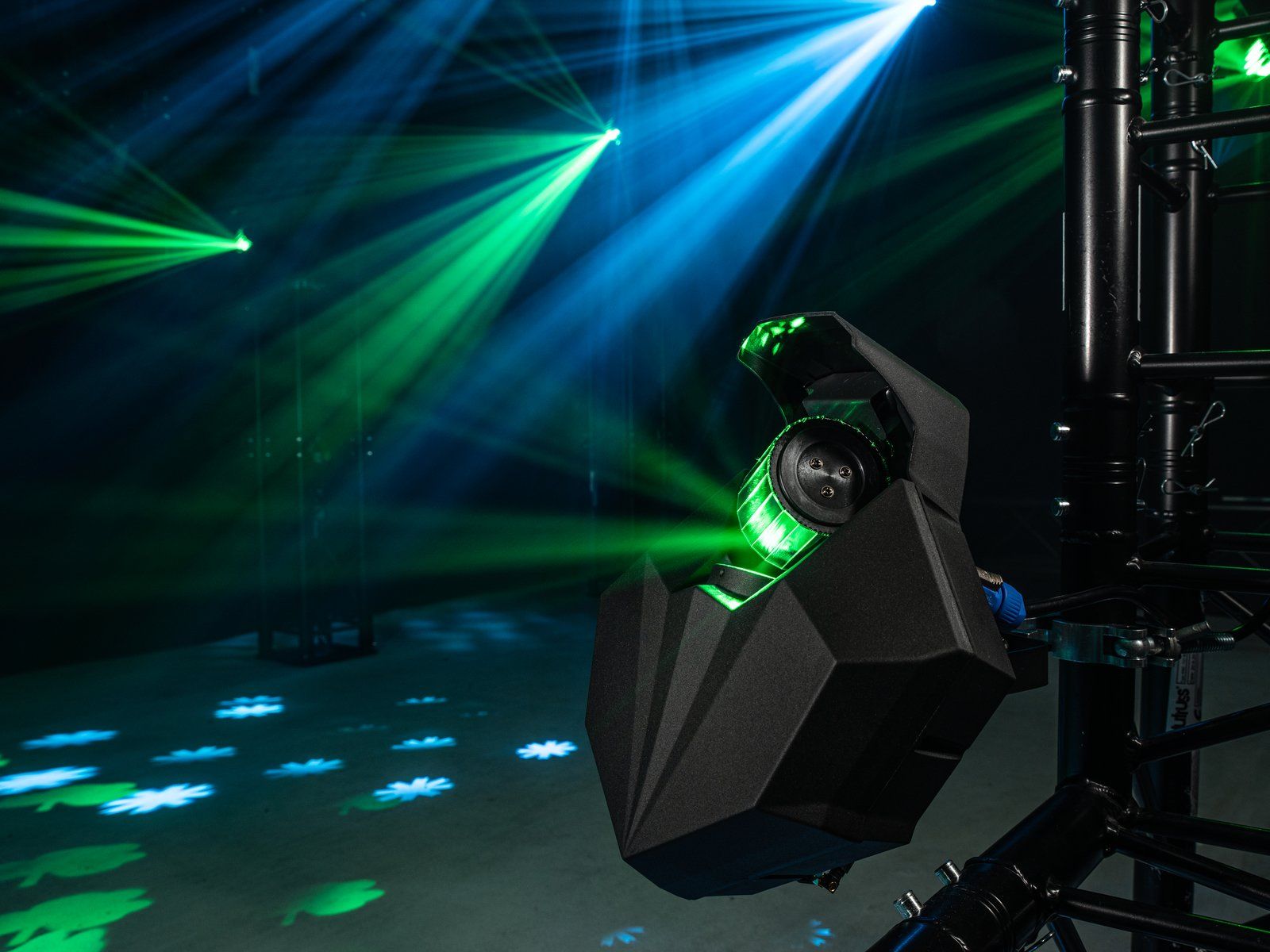

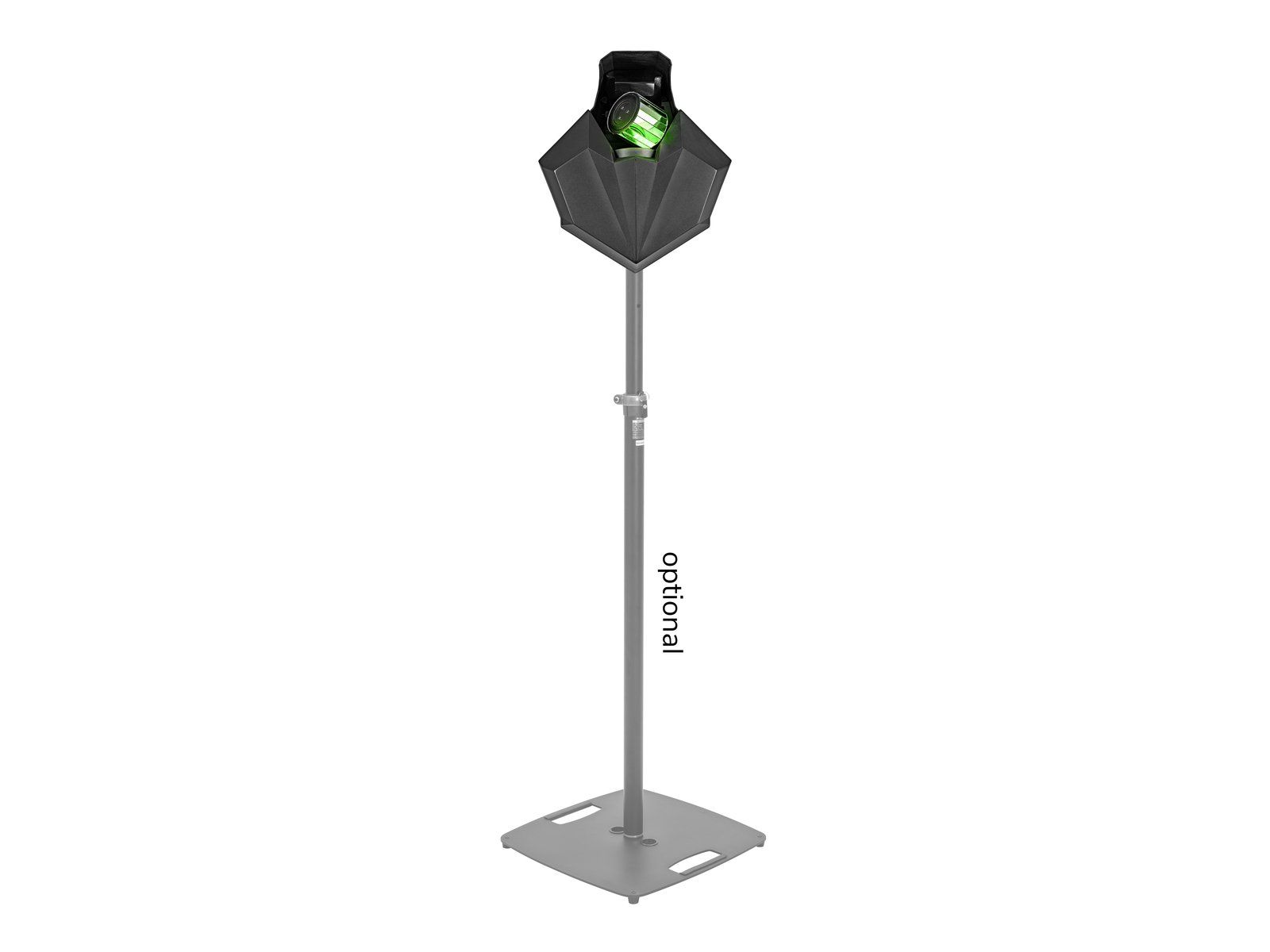

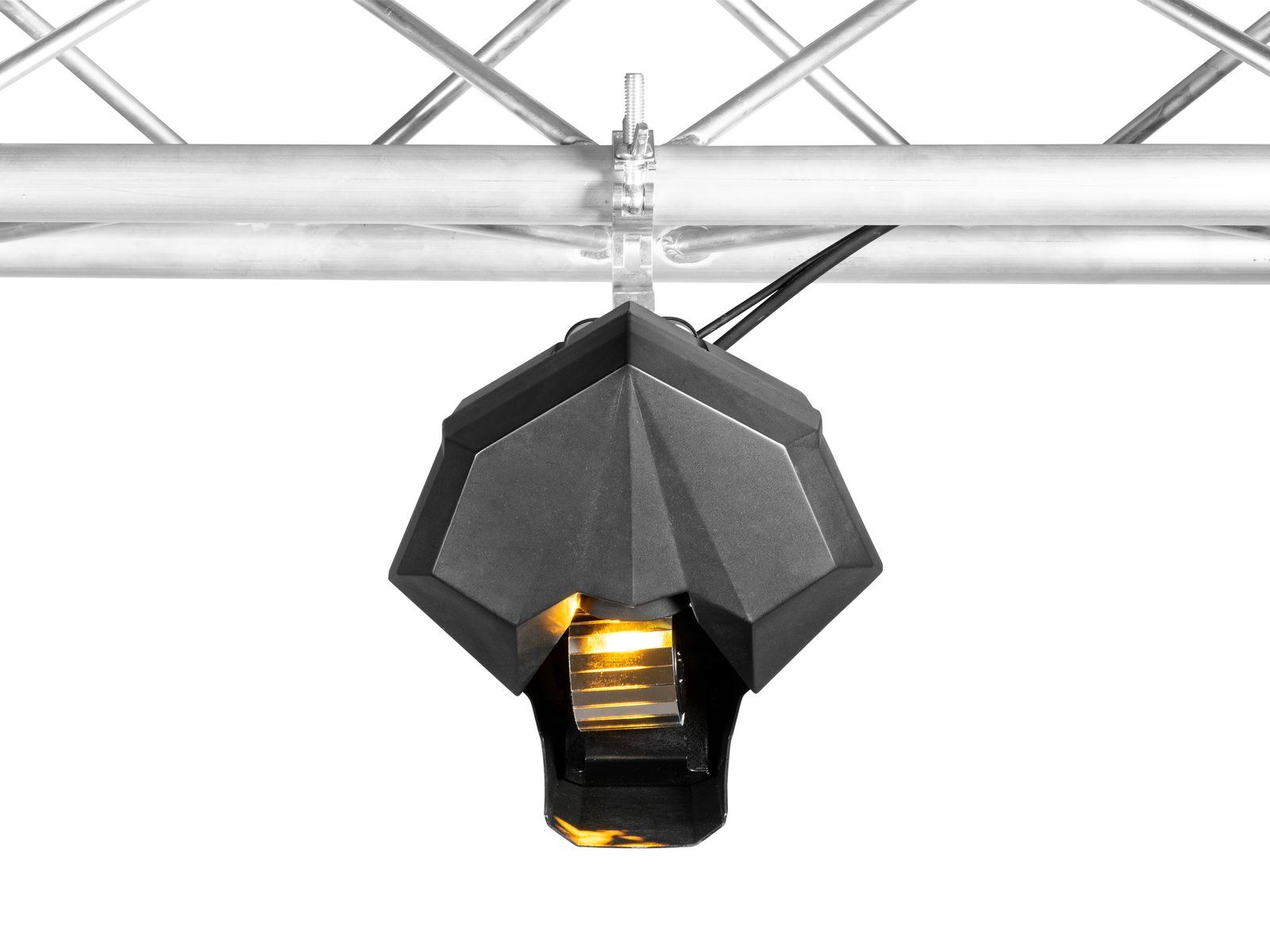

- Application possibility: Suspended; on stand
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x XLR cable
Technical specifications
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 110 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Fuse: | 5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 80 W COB (chip-on-board) cold white (CW) |
| Flash rate: | 0 - 25 Hz |
| Equipment: | Gobo wheel with static gobos; focus manual |
| Gobos: | Gobo wheel with static gobos, 9 color gobos and open |
| DMX channels: | 7 |

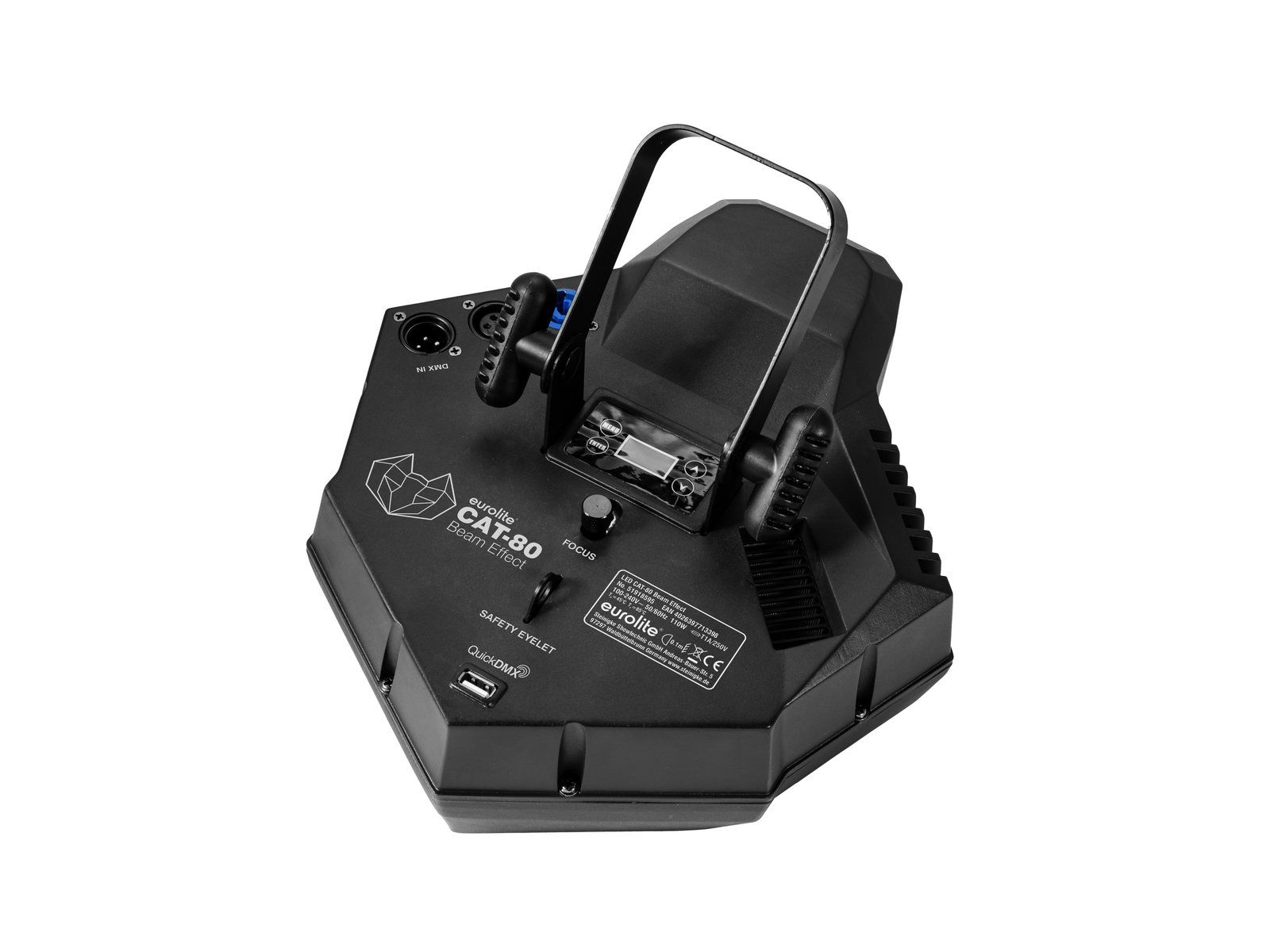

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone; master/slave function; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: | Flicker-free |
| Housing color: | Black |
| Display type: | OLED display |
| Dimensions: | Width: 29,0 cm Depth: 18,5 cm Height: 31,5 cm |
| Weight: | 3,08 kg |
| Noise classification: | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
EUROLITE LED CAT-80 Beam Effect
functies
LED Beam Effect met 80 W COB LED in koud wit en gobowiel
3 verschillende bewegingsassen
Draaibare gefacetteerde spiegel binnenin
Draai- en zwenkbare spiegelcilinder
Genereert talloze bewegingspatronen in de kamer
Handmatige scherpstelling
Elektronische dimmer
1 krachtige LED 80 W COB (chip-on-board) koud wit (CW)
Gobowiel met statische gobo's; Focus handleiding
spiegelcilindereffect; stroboscopisch effect
Regenboogeffect met instelbare snelheid
Gobowiel met statische gobo's, 1 gobo, 8 kleurengobo's en open
Kan worden gebruikt in 7 CH-modus
Het apparaat wordt gekoeld door een koelventilator
Stand-alone bediening; master/slave-functie; geluid naar licht via microfoon; DMX; QuickDMX via USB (optioneel); W-DMX via draadloze oplossing via USB (optioneel); CRMX van LumenRadio via USB (optioneel)
Voorgeprogrammeerd in Light'J; Lichte Kapitein; EENVOUDIGE TOON 2; EENVOUDIGE TOON 3
Flikkervrij
OLED-scherm
Verpakkingsinhoud
1x lichteffect, 1x gebruiksaanwijzing, 1x netsnoer, 1x xLR-kabel
Technische specificaties
Voeding: 100-240VAC, 50/60Hz
Stroomverbruik: 110W
IP-classificatie: IP20
Beschermingsklasse: Beschermingsklasse I
Stroomaansluiting: Netspanning via P-Con (blauw), montageversie netsnoer met veiligheidsstekker
Zekering: 5 x 20 mm, zekering T 2 A vervangbaar
Lamptype: LED-lamp
LED: 1 x 80 W COB (chip-on-board) koud wit (CW)
Flitssnelheid: 0 - 25Hz
Uitrusting: gobowiel met statische gobo's; Focus handleiding
Gobo's: Gobowiel met statische gobo's, 1 gobo, 8 kleurengobo's en open
DMX-kanalen: 7
DMX-ingang: 3-pins XLR (M) montageversie
DMX-uitgang: 3-pins XLR (F) montageversie
Koeling: koelventilator
Controle: stand-alone; master/slave-functie; geluid naar licht via microfoon; DMX; QuickDMX via USB (optioneel); W-DMX via draadloze oplossing via USB (optioneel); CRMX van LumenRadio via USB (optioneel); Licht'J; Lichte Kapitein; EENVOUDIGE TOON 2; EENVOUDIGE TOON 3
Kleur behuizing: Zwart
Schermtype: OLED-scherm
Afmetingen: Breedte: 29,0 cm
Diepte: 18,5 cm
Hoogte: 31,5 cm
Gewicht: 3,08 kg
