EUROLITE ESN 7x80 USB LAN LED Moving Message
€ 217,80
€ 180,00
?
SKU
st80500107

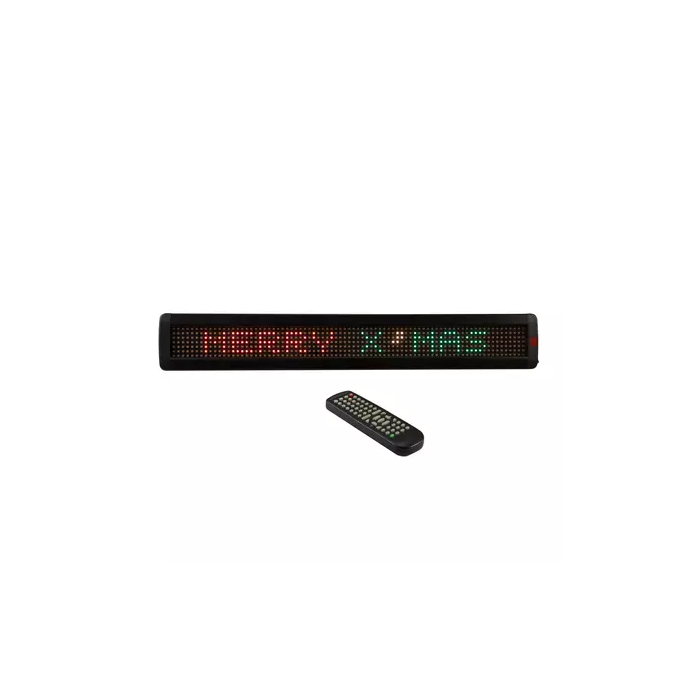

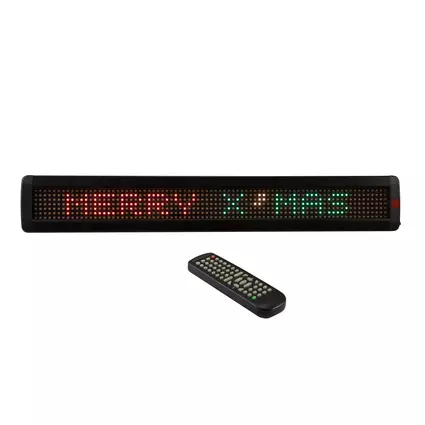

EUROLITE ESN 7x80 USB LAN LED Moving Message
EUROLITE ESN 7x80 USB LAN LED Moving Message
Features
RG moving message display (7x80 pixels) with network connectivity, PC software and IR remote control
- Fully programmable via supplied IR remote control or with PC software via USB port and RJ45 network port
- Dot matrix with 560 super bright SMD LEDs
- Large database with various display effects, symbols and graphics
- 99 editable memory locations
- 8 editable bitmap memory locations, 7 font sizes, 16 color combinations, 8 display speeds, 24 display effects, 30 integrated symbols
- 8 animated messages (Welcome, Merry X'Mas, Happy New Year etc.)
- Programming of sequences
- Timer function
- 560 powerful LEDs SMD 3535 R/G
- The device is cooled by passive convection cooling
- Control via IR remote control; network cable; via USB; wired remote control

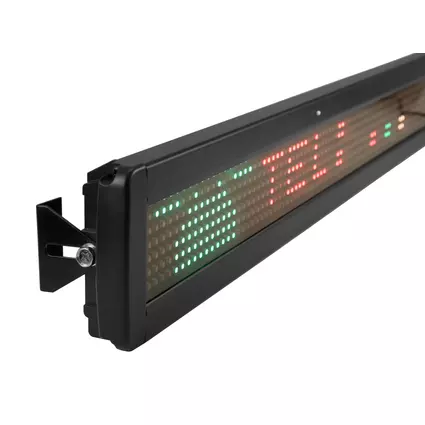

- With mounting bracket
- For application areas such as: Advertisement/Shop window; Trade fair and shop fitting; wedding/gala/events; clubs/dancing school; restaurants, bars and hotels
Package contents
- 1 x device, 1 x external mains adapter, 1 x USB stick, 1 x remote control, 1 x USB cable, 1 x network cable, 2 x angle, 2 x battery
Technical specifications
| Power supply: | 5V DC |
| Power consumption: | 12 W |
| IP classification: | IP20 |
| Protection class: | Protection class III |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included |
| Battery: | 1.5 V AAA Micro LR03 alkaline manganese included |
| LED type: | 560 x SMD 3535 R/G |
| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | IR remote control; network cable; via USB; wired remote control |
| Image: | Max. 7x80 px |
| Presentation: | 1-line, 13 visible characters 16 colors |
| Text: | 7 fonts |
| Housing color: | Black |
| Attachment system: | 2x mounting bracket |
| USB port: | USB 2.0, type micro USB (F) mounting version |
| Display: | 60,5 cm x 5,5 cm |
| Dimensions: | Width: 64,7 cm Depth: 9,7 cm Height: 3,5 cm |
| Weight: | 1,25 kg |
| External mains adapter | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Pin configuration: | Inside + / outside - |
| IP classification: | IP20 |
| Protection class: | Protection class II |
| Cable length: | Approx. 1,5 m |
| Output: | 5 V DC; 3 A; 15 W |
| Color: | Black |
| Remote control | |
| Battery: | 2 x Micro (AAA) included |
| USB cable | |
| Cable length: | Approx. 1,5 m |
| Plug A: | 1 x USB, type A |
| Plug B: | 1 x micro USB (M) |
| Color: | Black |
| Network cable | |
| Cable length: | Approx. 1,5 m |
| Connector type: | RJ-45 (M) |
| Color: | Black |
| Angle | |
| Diameter mounting holes: | 1 x Ø8mm; 1 x Ø6mm |
| Material: | Metal, 1,4 mm |
| Color: | Black, matte |
