EUROLITE DXT DMX Pixel Art-Net Node II

Name: EUROLITE DXT DMX Pixel Art-Net Node II
SKU: st70064851
Price: 240.051901 EUR
Availability: PreOrder

Schrijf uw review over dit product

€ 240,05 € 198,39

SKU

st70064851

EUROLITE DXT DMX Pixel Art-Net Node II

Details

Reviews

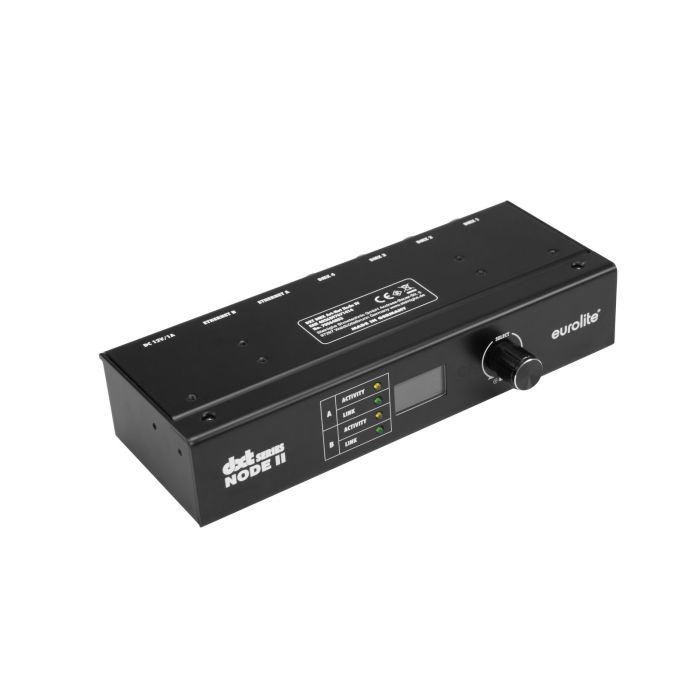

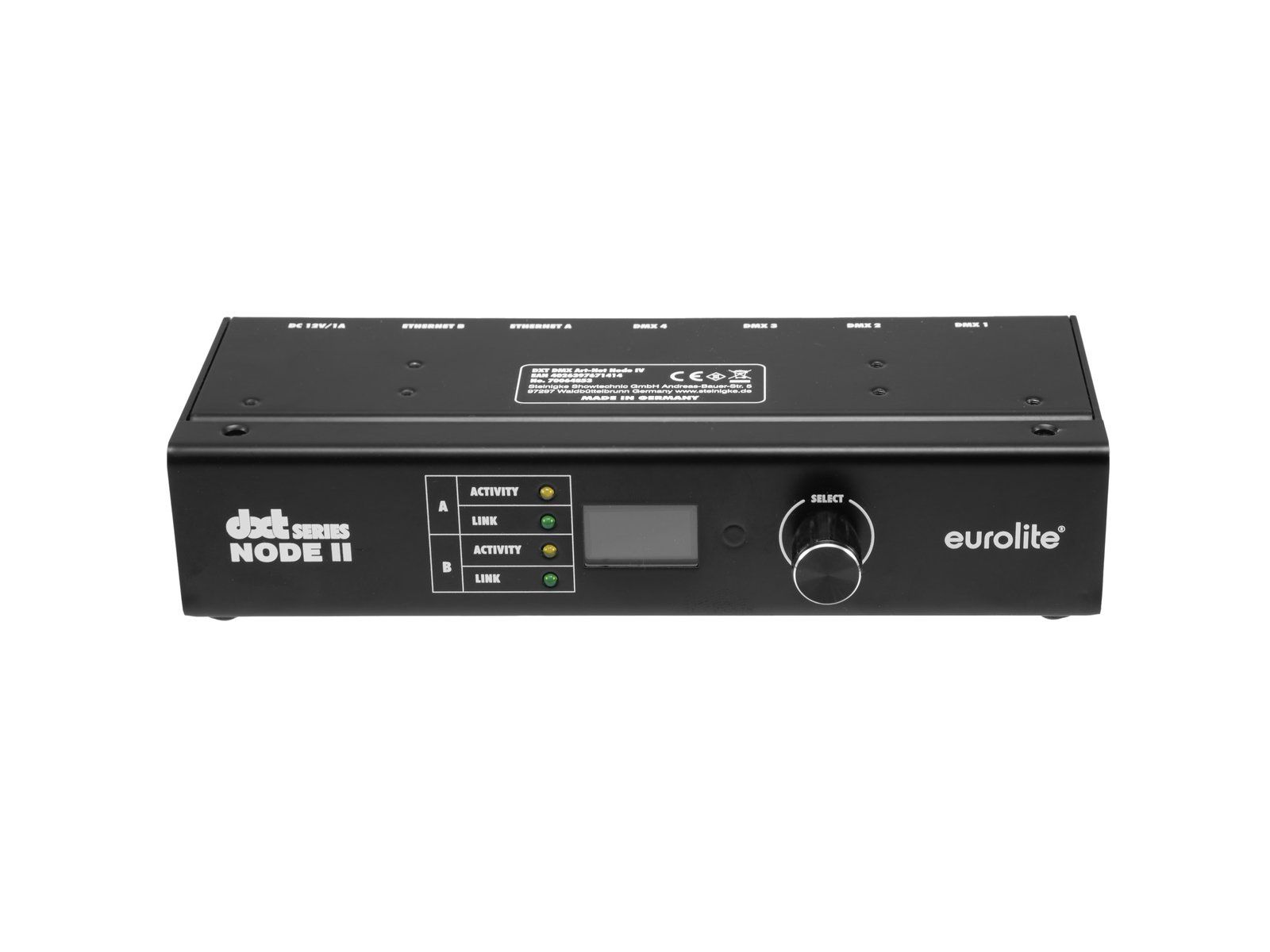

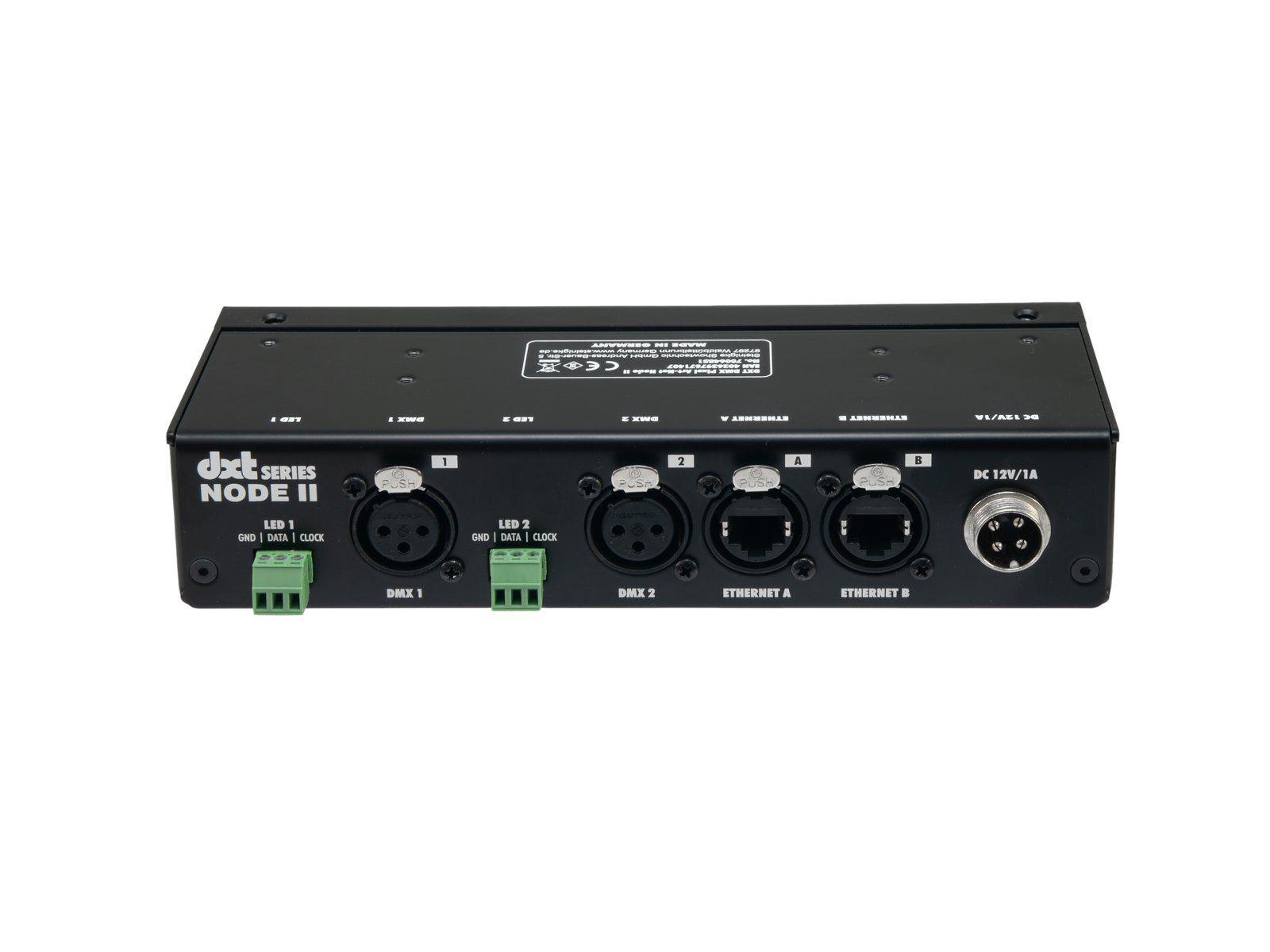

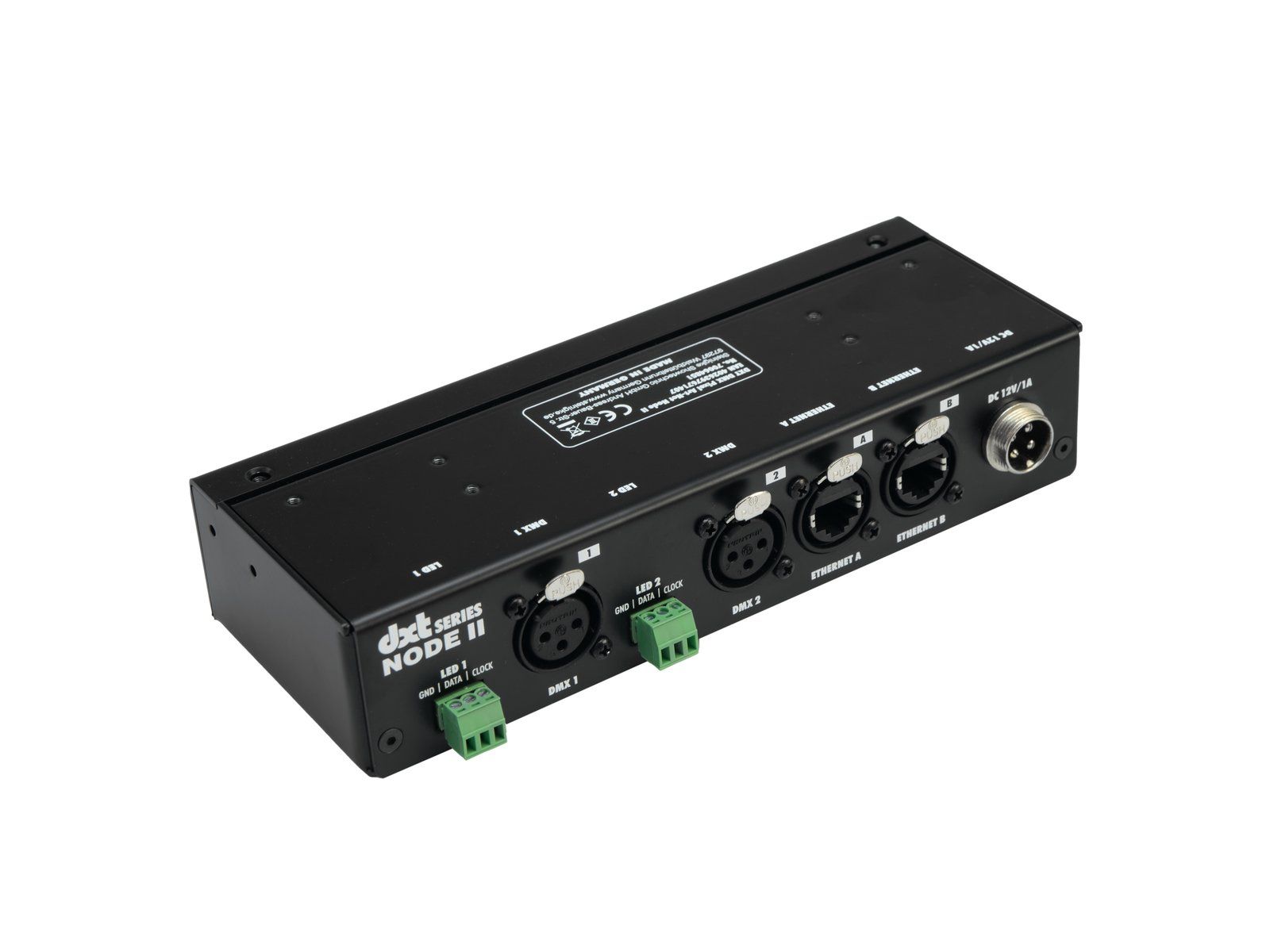

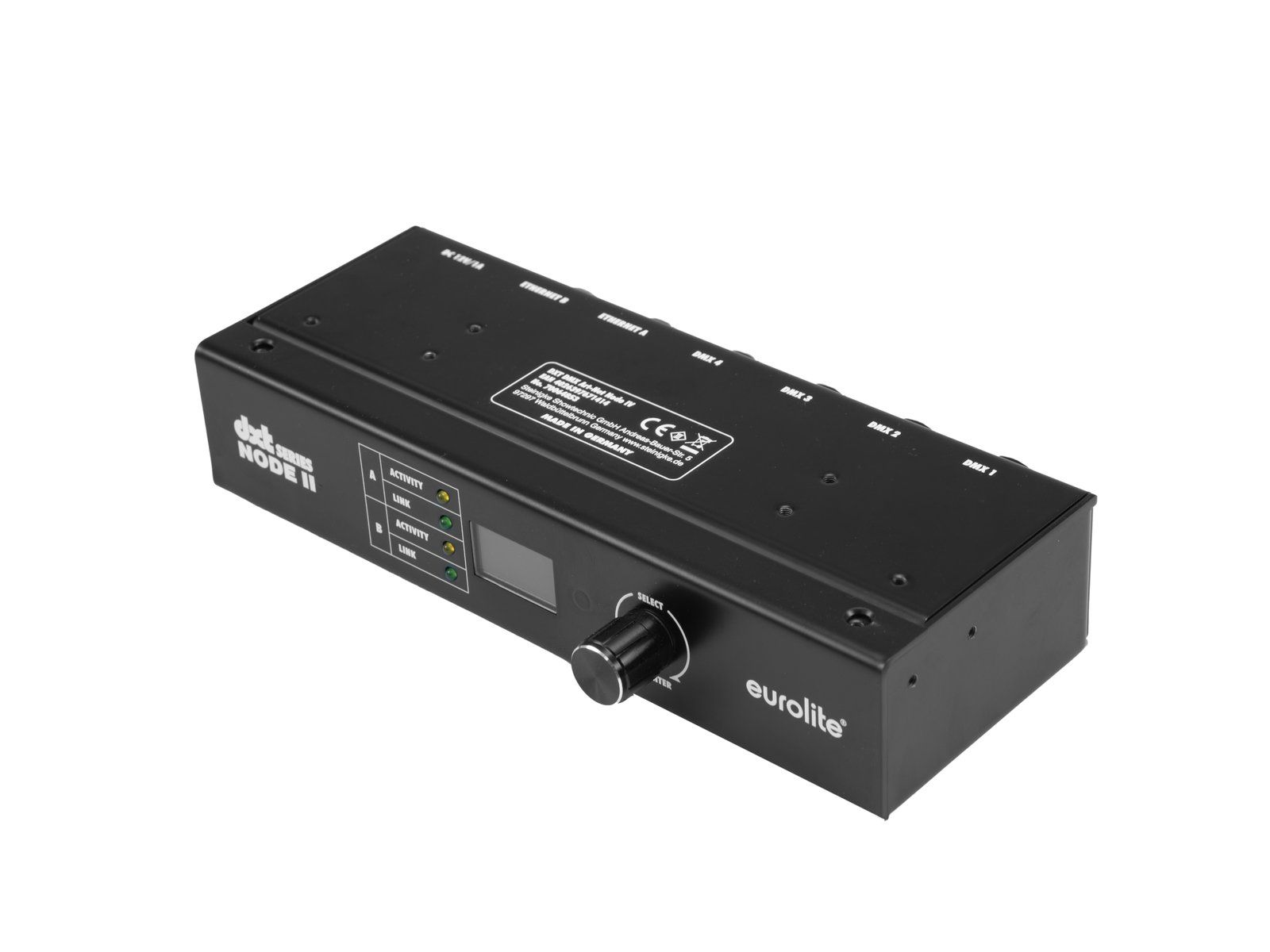

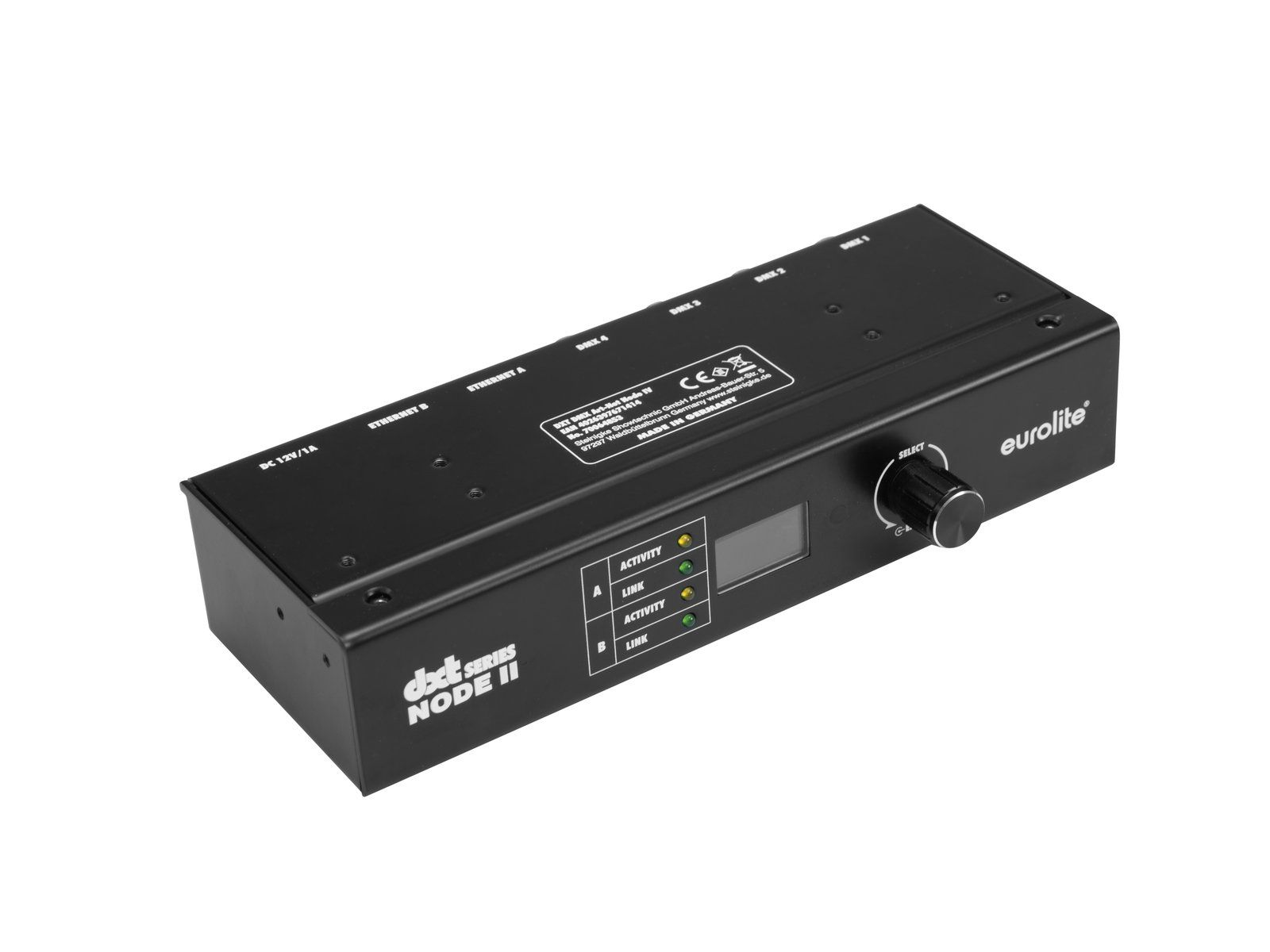

EUROLITE DXT DMX Pixel Art-Net Node II

De DXT DMX Pixel Art-Net Node II maakt deel uit van Eurolite's DXT-serie, die bestaat uit hoogwaardige en betrouwbare DMX-tools gemaakt in Duitsland. De Node II beschikt over twee kanalen die elk tot 512 DMX-kanalen kunnen uitvoeren of tot 512 digitale LED-pixelkanalen kunnen besturen. Het biedt twee Neutrik XLR- en 2 etherCON-connectoren, evenals twee verwijderbare 4-pins terminals. De tweede etherCON-connector maakt het doorlussen van de netwerkverbinding met meerdere apparaten mogelijk. Het apparaat kan worden geconfigureerd met een geïntegreerd OLED-display, via Art-Net of met een website.

Kenmerken

Art-Net-interface voor aansturing van 1024 digitale LED-kanalen of DMX-kanalen

2 x 3-pins DMX-uitgang
2 x 3-pins uitgang voor digitale LED-strips
2 etherCON netwerkaansluitingen
Tot 1024 DMX-kanaaluitgang
Tot 1024 digitale LED-kanaaluitgang
OLED-display met roterende encoder
Link- en activiteits-LED voor elke netwerkpoort
Ondersteund door alle toepassingen met Art-Net-uitgang
ArtDMX-ontvangst via Broadcast of Unicast
Configuratie met OLED-display, website of Art-Net
Beschikbare instellingen: IP-adres / Subnetmasker / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe
DMX-verversingssnelheid: 40 Hz of 20 Hz
LED types: WS2801, WS2811, WS2812,...(alle gangbare 800 kHz types)
Aangedreven via meegeleverde 12V PSU
Rack- of truss-installatie via optionele accessoires
Kan tot 1024 DMX-kanalen verzenden
Besturing door ArtNet
Het apparaat kan via RJ45 (F)-montageversie worden aangesloten op de pc
Desktop console behuizing 1 HE; (19") 48,3 cm rack-installatie (optioneel)
Gemaakt in Duitsland

Technische specificaties
Voeding: 100-240 V AC, 50/60 Hz
12 V gelijkstroom 1 A
Stroomverbruik: 3 W
IP-classificatie: IP20
Stroomaansluiting: Netingang 4-polige schroefstekker (m) montageversie Netsnoer met AC-adapter
DMX-kanalen: uitgang 1024
DMX-uitgang: 2 x 3-pins XLR (F) montageversie
Netwerkverbinding: Protocol: Ethernet TCP/IP via 2x RJ-45 etherCON (F) montageversie, 10/100 Mbit/s
Standaard: IEEE 802.3u
Besturing: ArtNet
Schermtype: OLED-scherm
Bedieningselementen: Encoder
Status-LED: Signaal, link
Aansluitingen: Uitgang: 2 x via schroefklem
Gebruik van merken: Gebouwd met NEUTRIK-connector
De kleur zwart
PC aansluiten: Via RJ45 (F) montageversie
Behuizingsontwerp: Desktop consolebehuizing 1 HE
(19") 48,3 cm rack-installatie (optioneel)
Afmetingen: Breedte: 20 cm
Diepte: 9,8 cm
Hoogte: 4,1 cm
Gewicht: 850 gram
