EUROLITE DXT DMX Art-Net Node IV

Name: EUROLITE DXT DMX Art-Net Node IV
SKU: st70064853
Price: 296.788801 EUR
Availability: PreOrder

Schrijf uw review over dit product

€ 296,79 € 245,28

SKU

st70064853

EUROLITE DXT DMX Art-Net Node IV

Details

Reviews

EUROLITE DXT DMX Art-Net Node IV
De DXT DMX Art-Net Node IV maakt deel uit van Eurolite's DXT-serie, die bestaat uit hoogwaardige en betrouwbare DMX-tools gemaakt in Duitsland. De Node IV beschikt over vier kanalen die elk tot 512 DMX-kanalen kunnen uitvoeren of tot 2048 kanalen kunnen aansturen. Het biedt vier Neutrik XLR- en twee etherCON-connectoren. De tweede etherCON-connector maakt het doorlussen van de netwerkverbinding met meerdere apparaten mogelijk. Het apparaat kan worden geconfigureerd met een geïntegreerd OLED-display, via Art-Net of met een website.

Kenmerken

Art-Net-interface voor uitvoer van 2048 DMX-kanalen

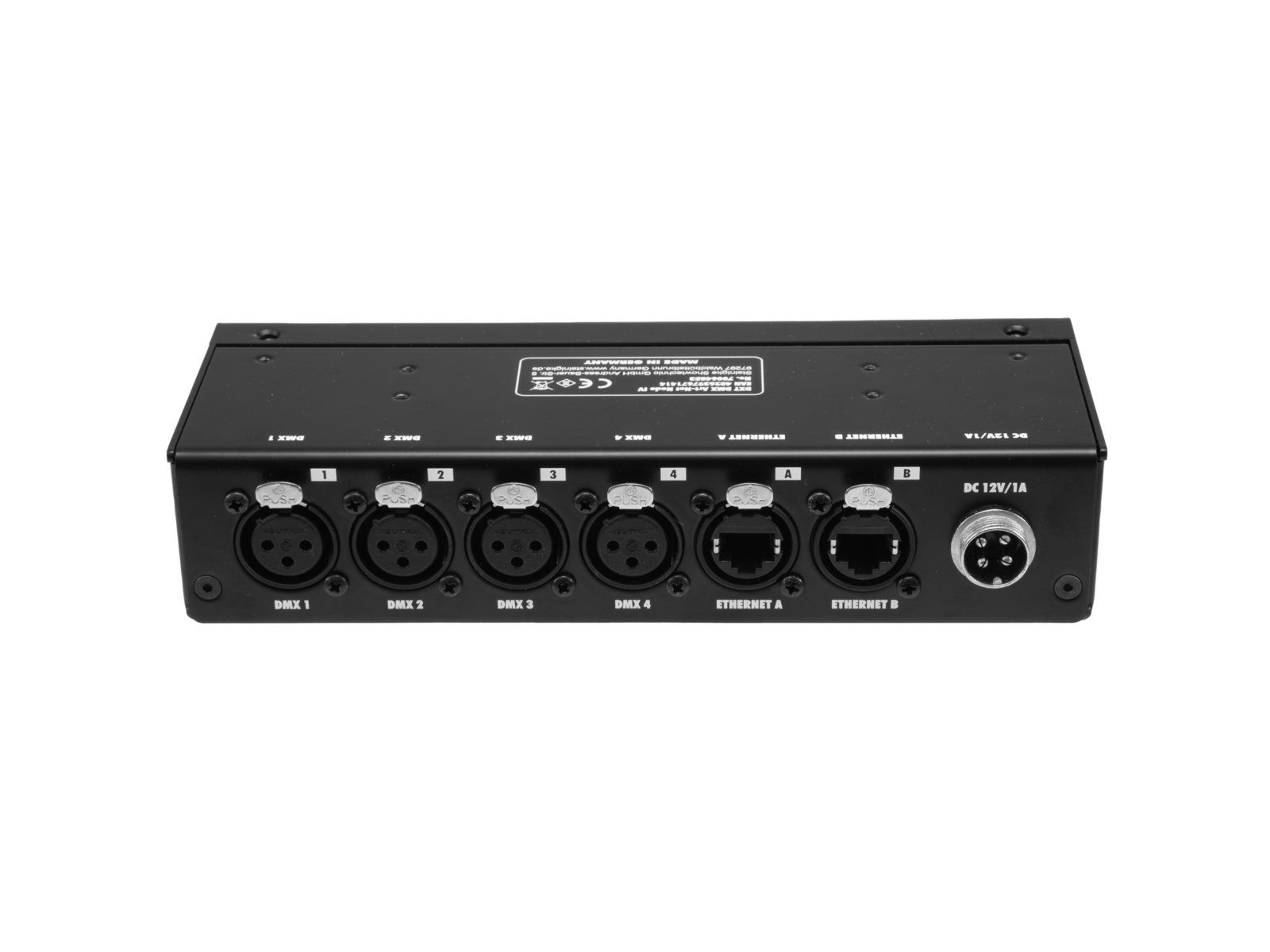

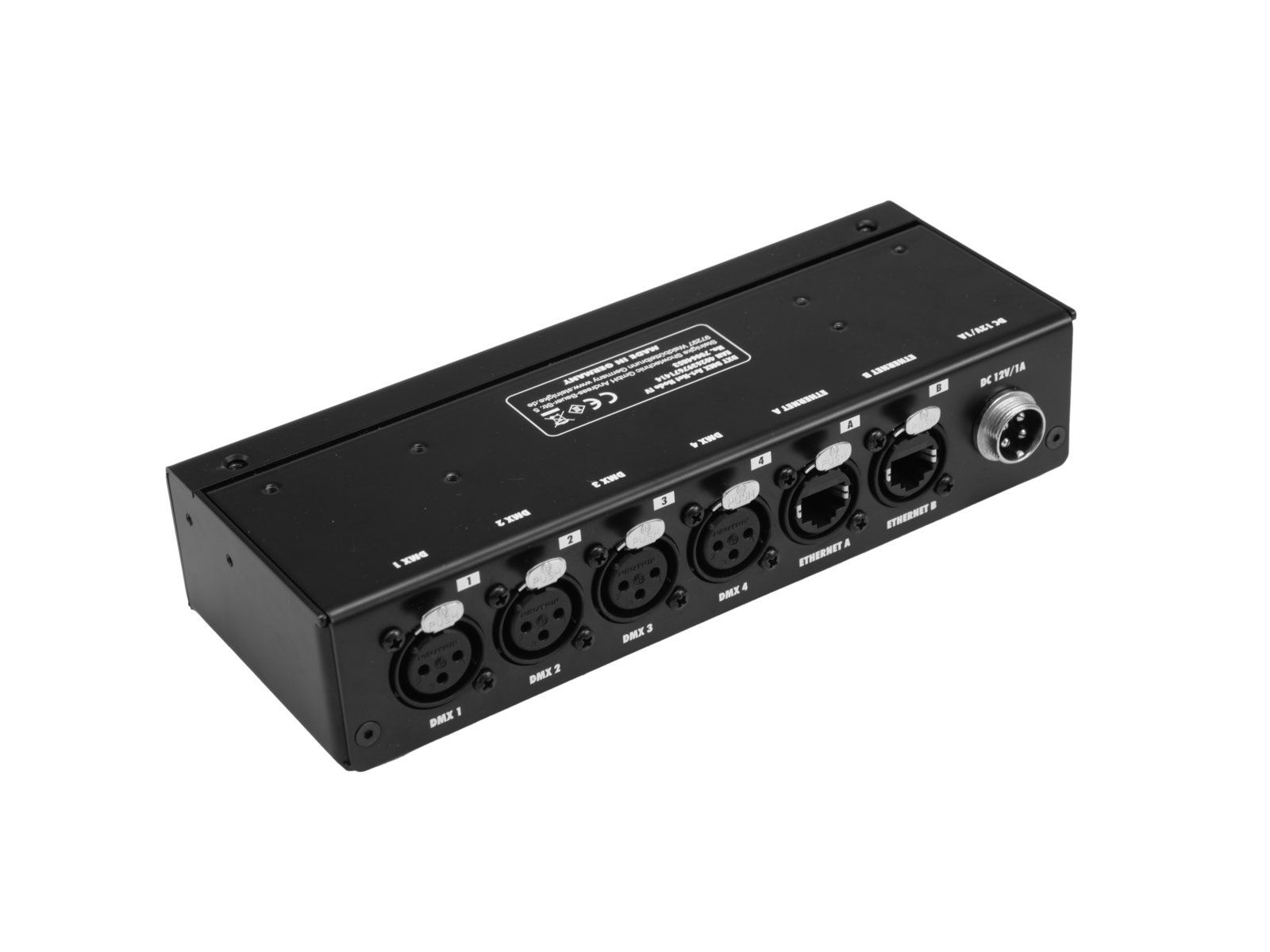

4 x 3-pins DMX-uitgang
2 etherCON netwerkaansluitingen
Tot 2048 DMX-kanaaluitgang

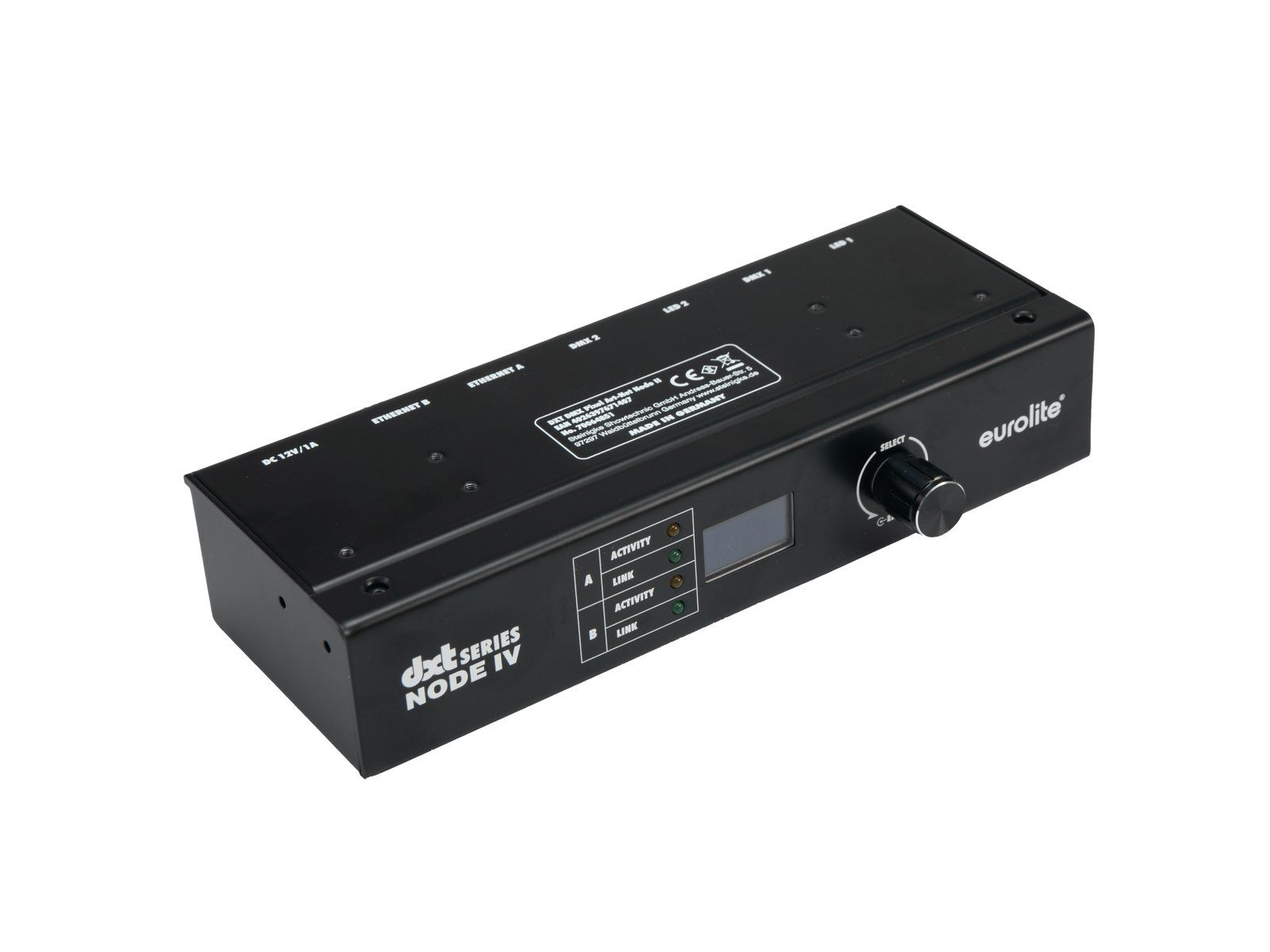

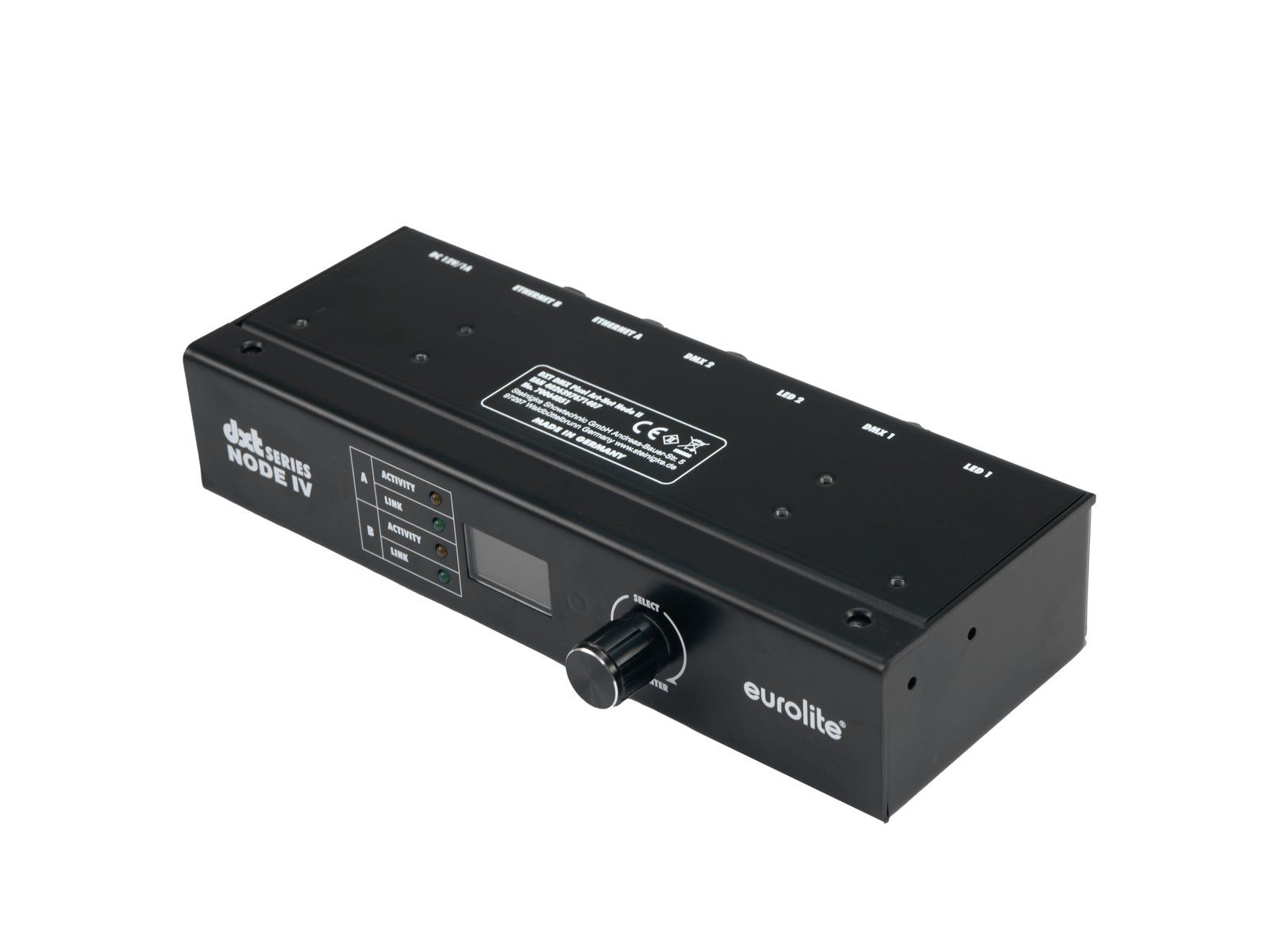

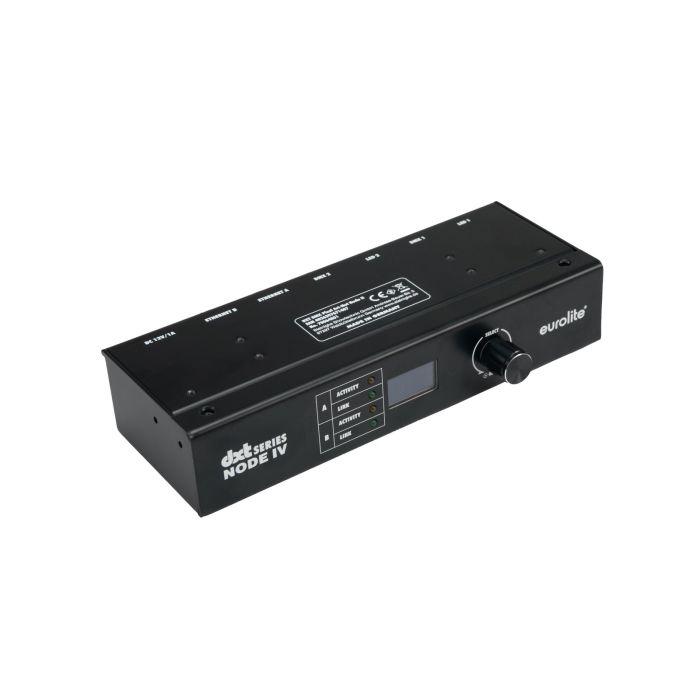

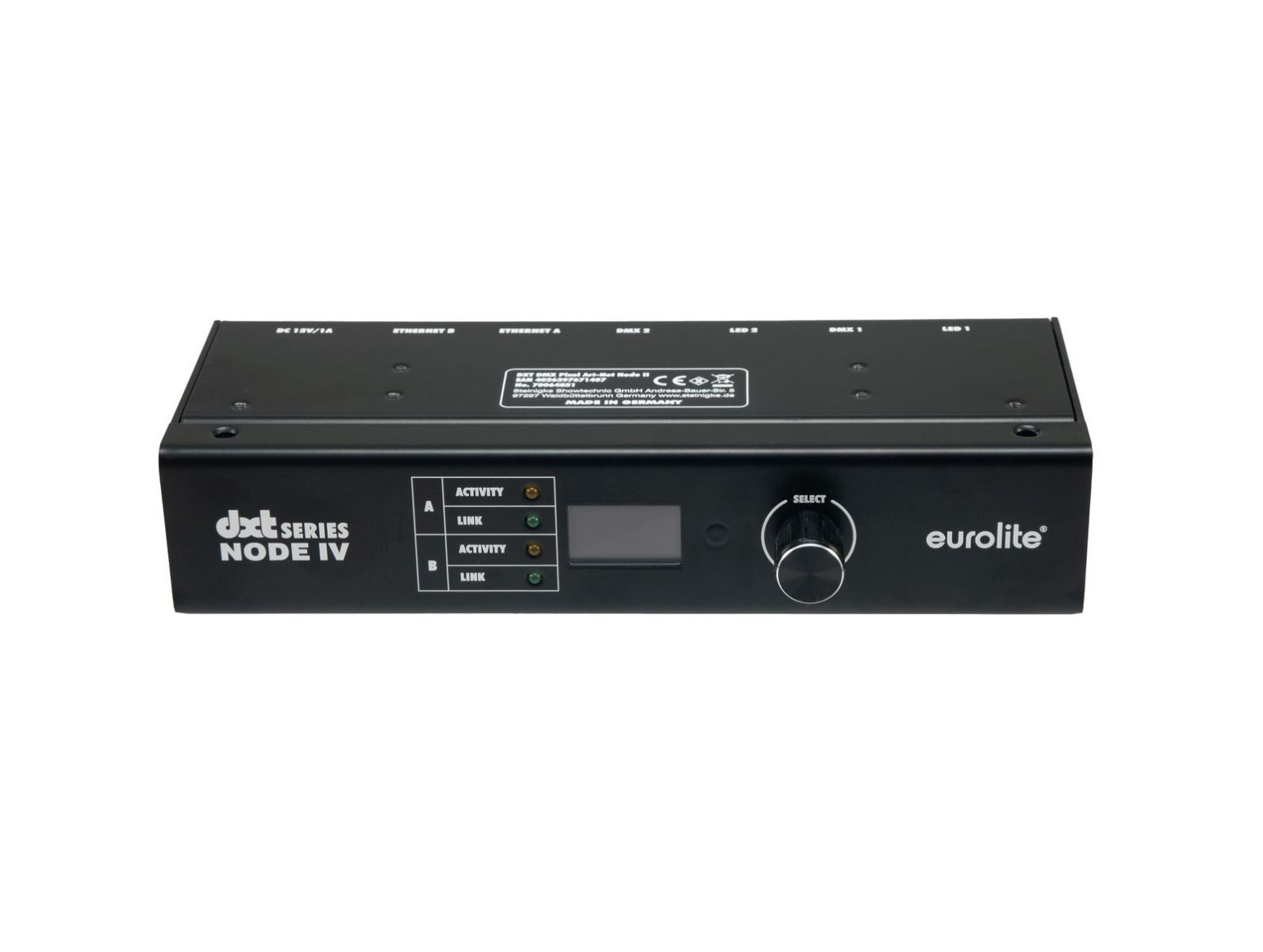

OLED-display met roterende encoder
Link- en activiteits-LED voor elke netwerkpoort
Ondersteund door alle toepassingen met Art-Net-uitgang
ArtDMX-ontvangst via Broadcast of Unicast
Configuratie met OLED-display, website of Art-Net
Beschikbare instellingen: IP-adres / Subnetmasker / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe
DMX-verversingssnelheid: 40 Hz of 20 Hz
Aangedreven via meegeleverde 12V PSU
Rack- of truss-installatie via optionele accessoires
Kan tot 2048 DMX-kanalen verzenden
Besturing door ArtNet
Het apparaat kan via RJ-45 (F) montageversie worden aangesloten op de pc
Desktop console behuizing 1 HE; (19") 48,3 cm rack-installatie (optioneel)
Gemaakt in Duitsland

Technische specificaties
Voeding: 100-240 V AC, 50/60 Hz
12 V gelijkstroom 1 A
Stroomverbruik: 3 W
IP-classificatie: IP20
Stroomaansluiting: Netingang 4-polige schroefstekker (m) montageversie Netsnoer met AC-adapter
DMX-kanalen: uitgang 2048
DMX-uitgang: 4 x 3-pins XLR (F) montageversie
Netwerkverbinding: Protocol: Ethernet TCP/IP via 2x RJ-45 etherCON (F) montageversie, 10/100 Mbit/s
Standaard: IEEE 802.3u
Besturing: ArtNet
Schermtype: OLED-scherm
Bedieningselementen: Encoder
Status-LED: Signaal, link
Gebruik van merken: Gebouwd met NEUTRIK-connector
De kleur zwart
PC aansluiten: Via RJ-45 (F) montageversie
Behuizingsontwerp: Desktop consolebehuizing 1 HE
(19") 48,3 cm rack-installatie (optioneel)
Afmetingen: Breedte: 20 cm
Diepte: 9,8 cm
Hoogte: 4,1 cm
Gewicht: 850 gram
