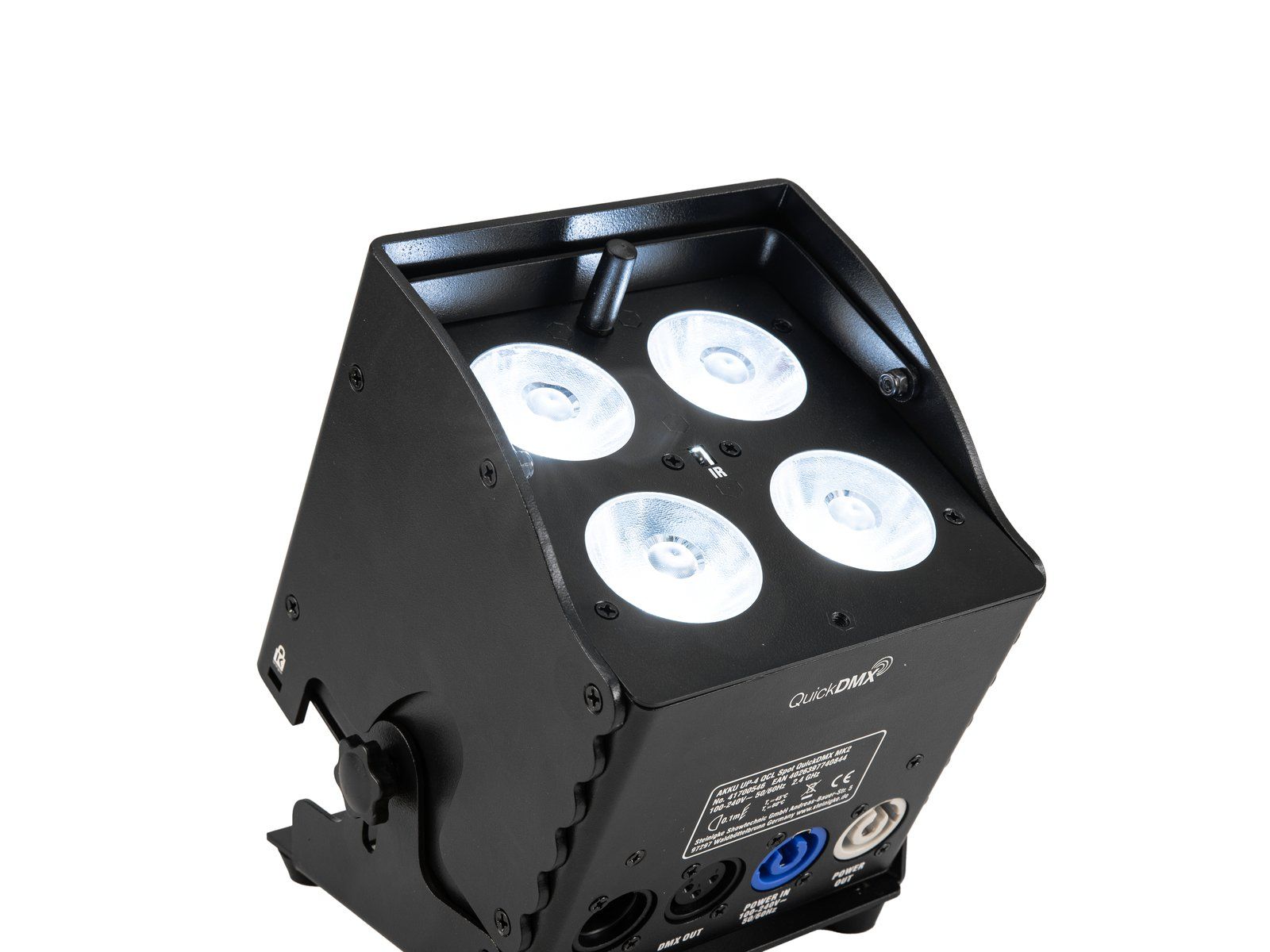

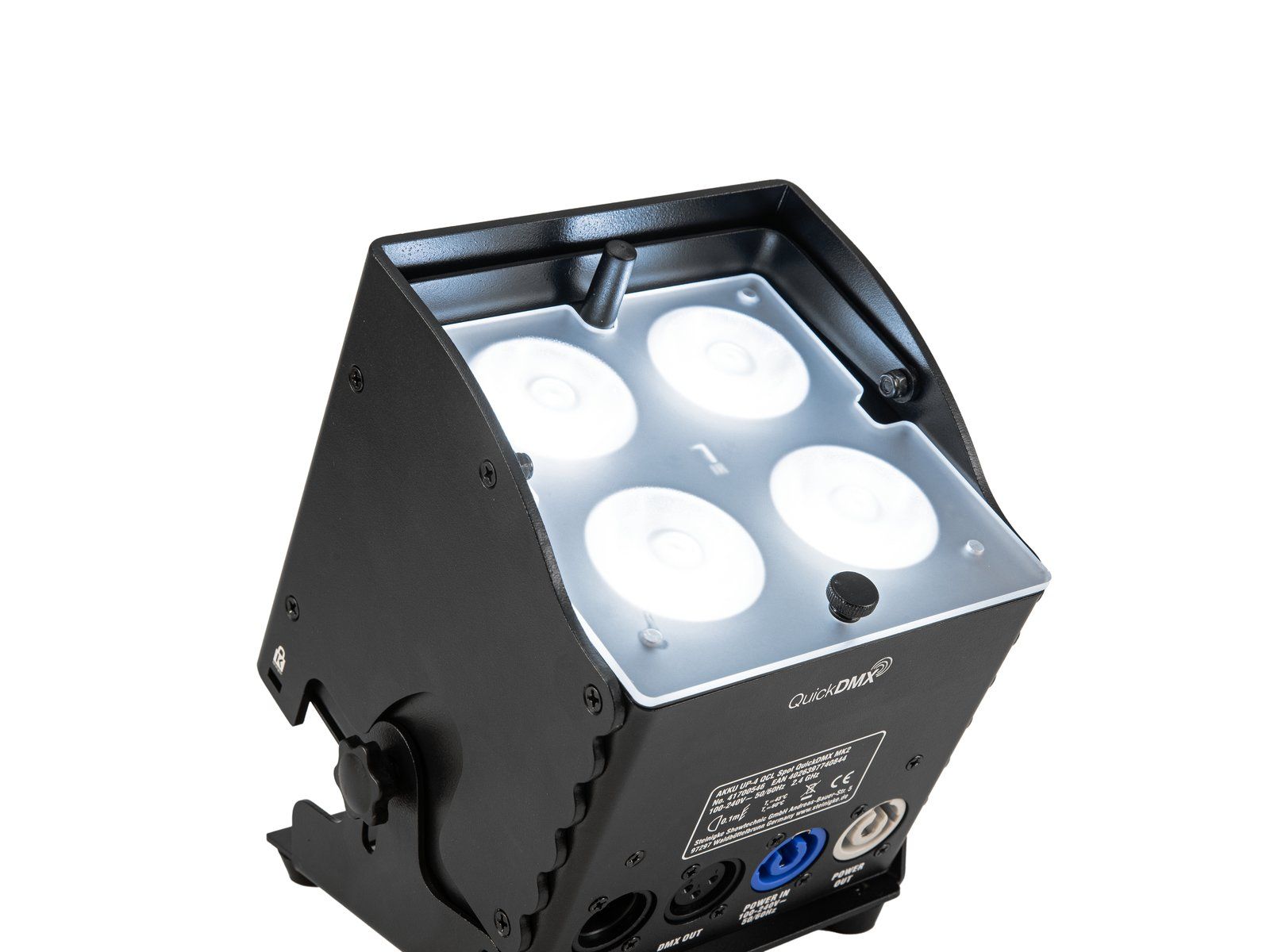

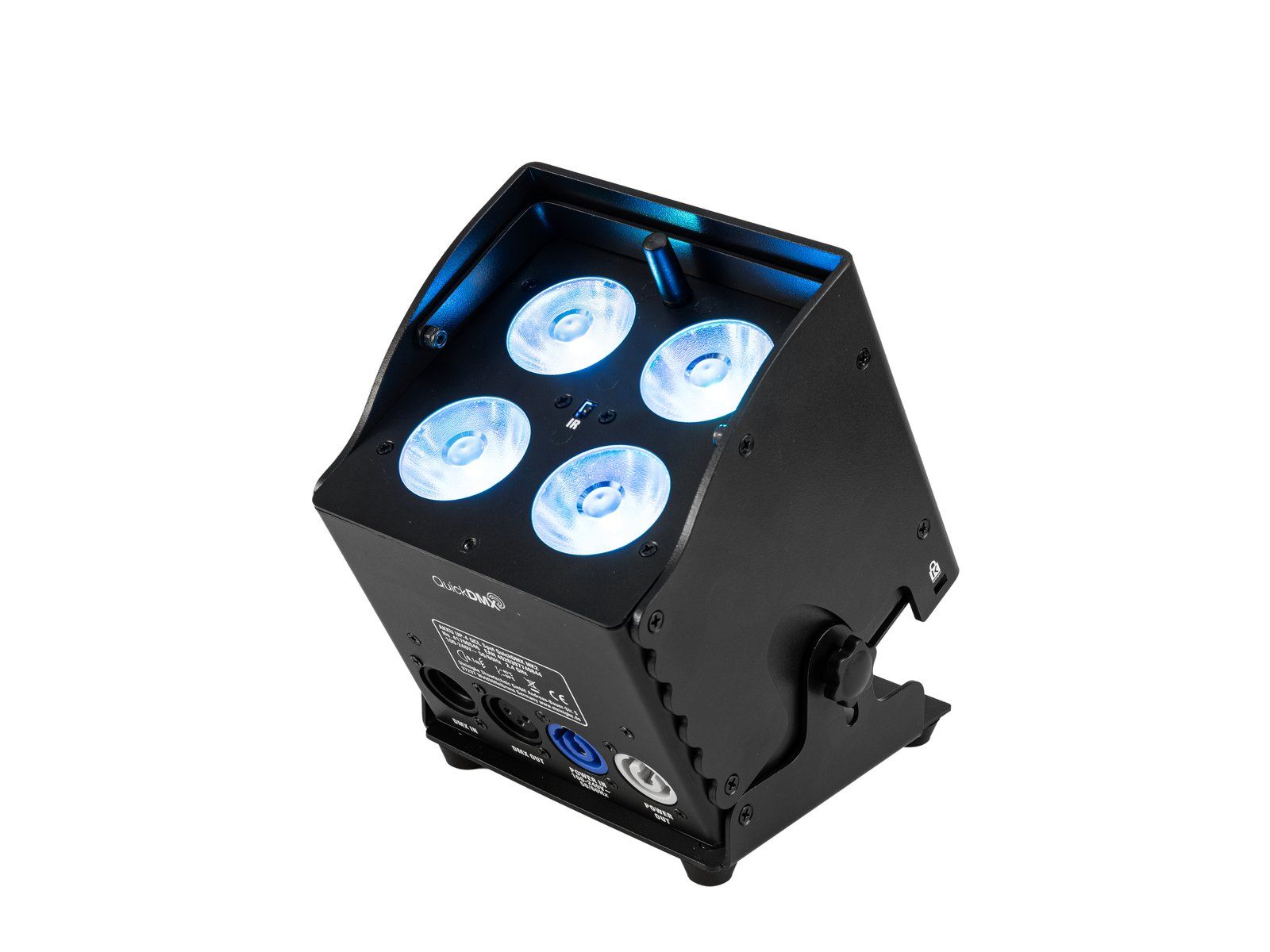

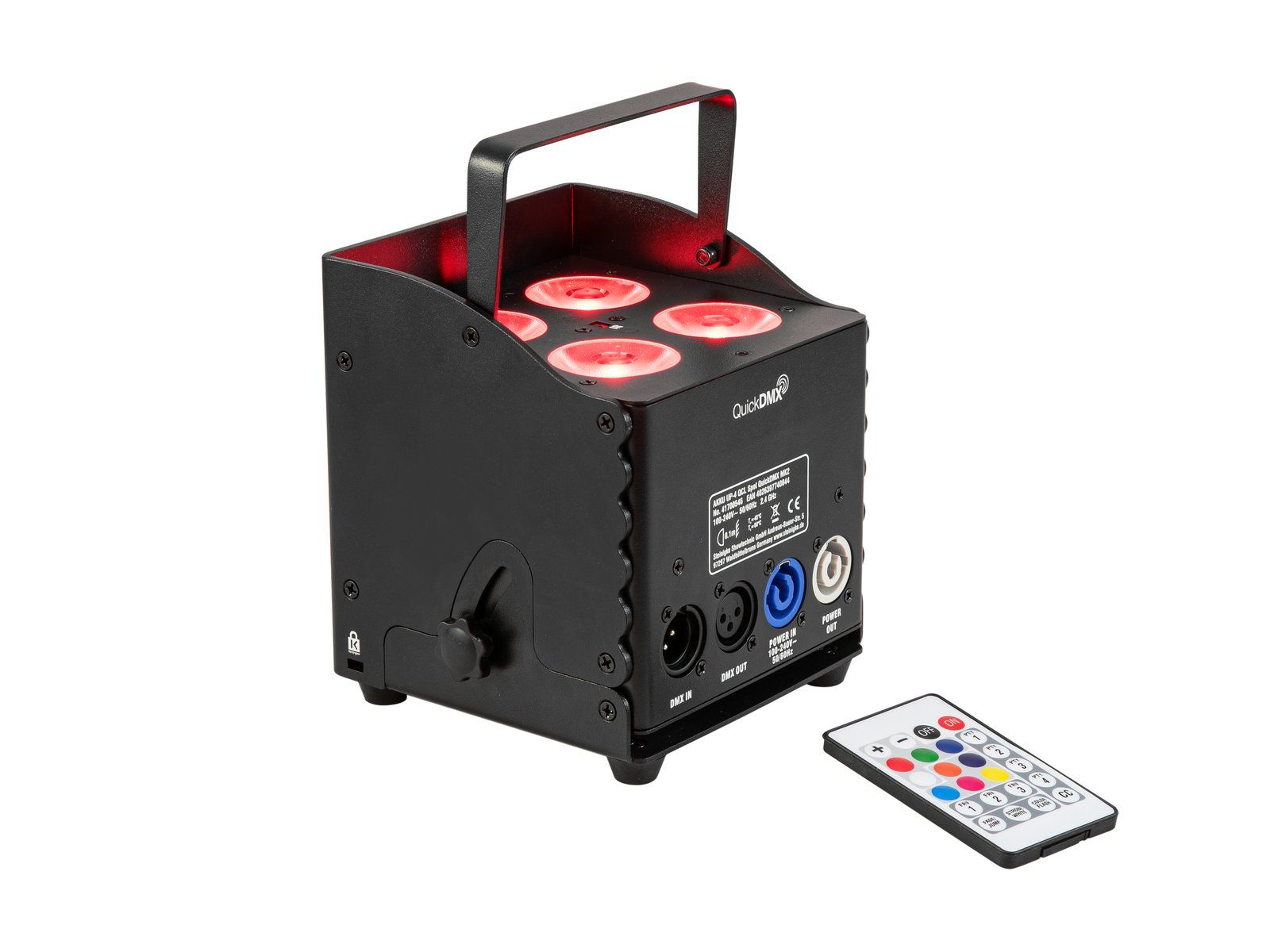

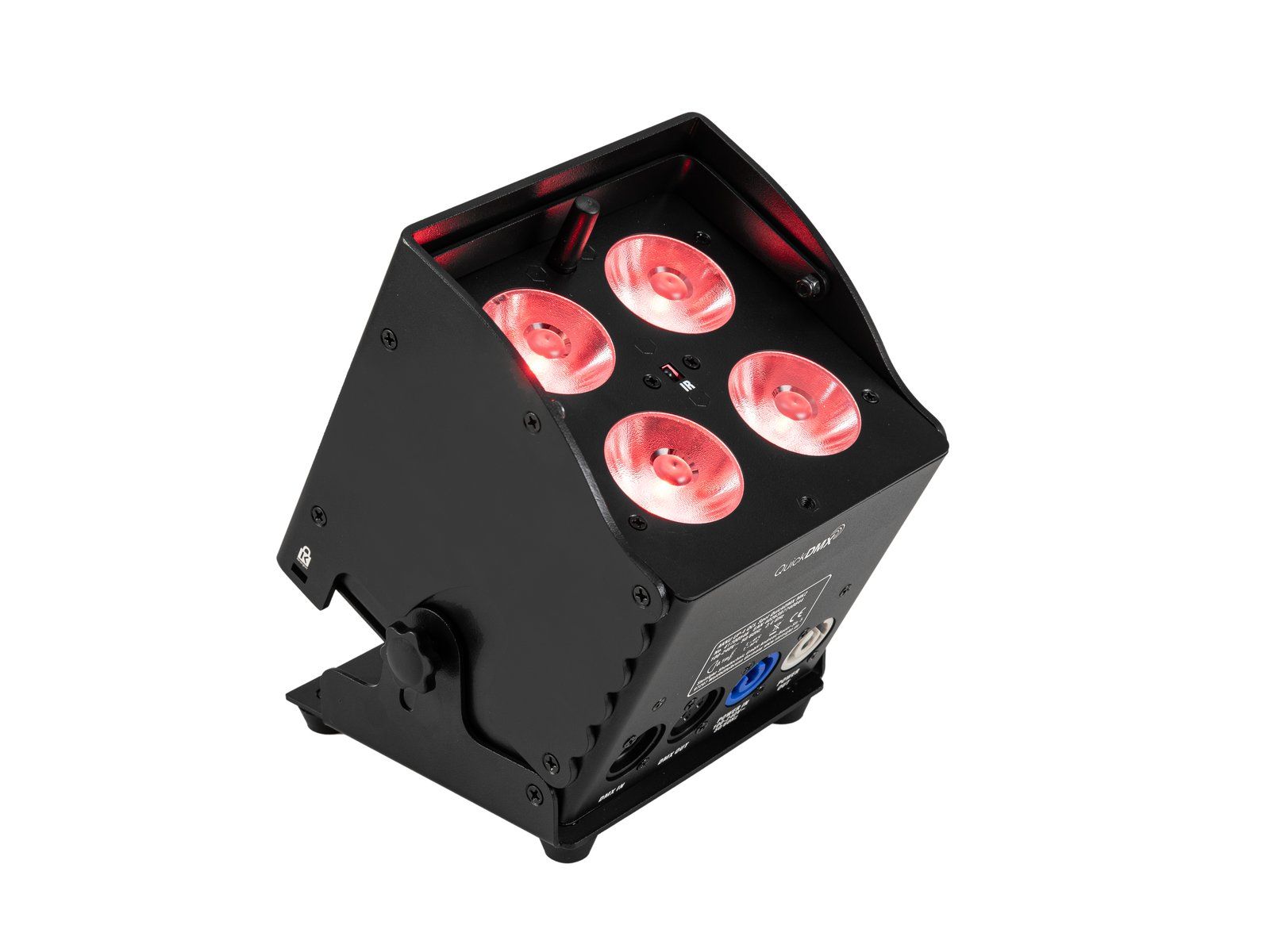

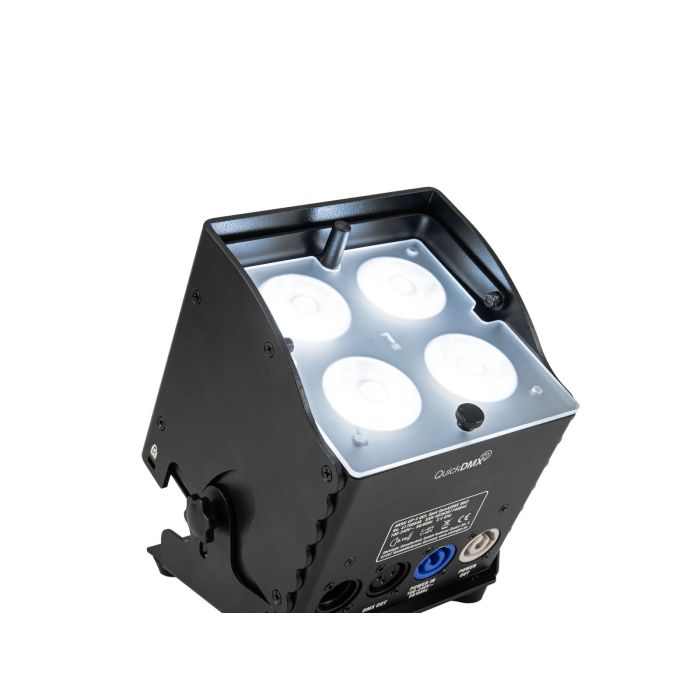

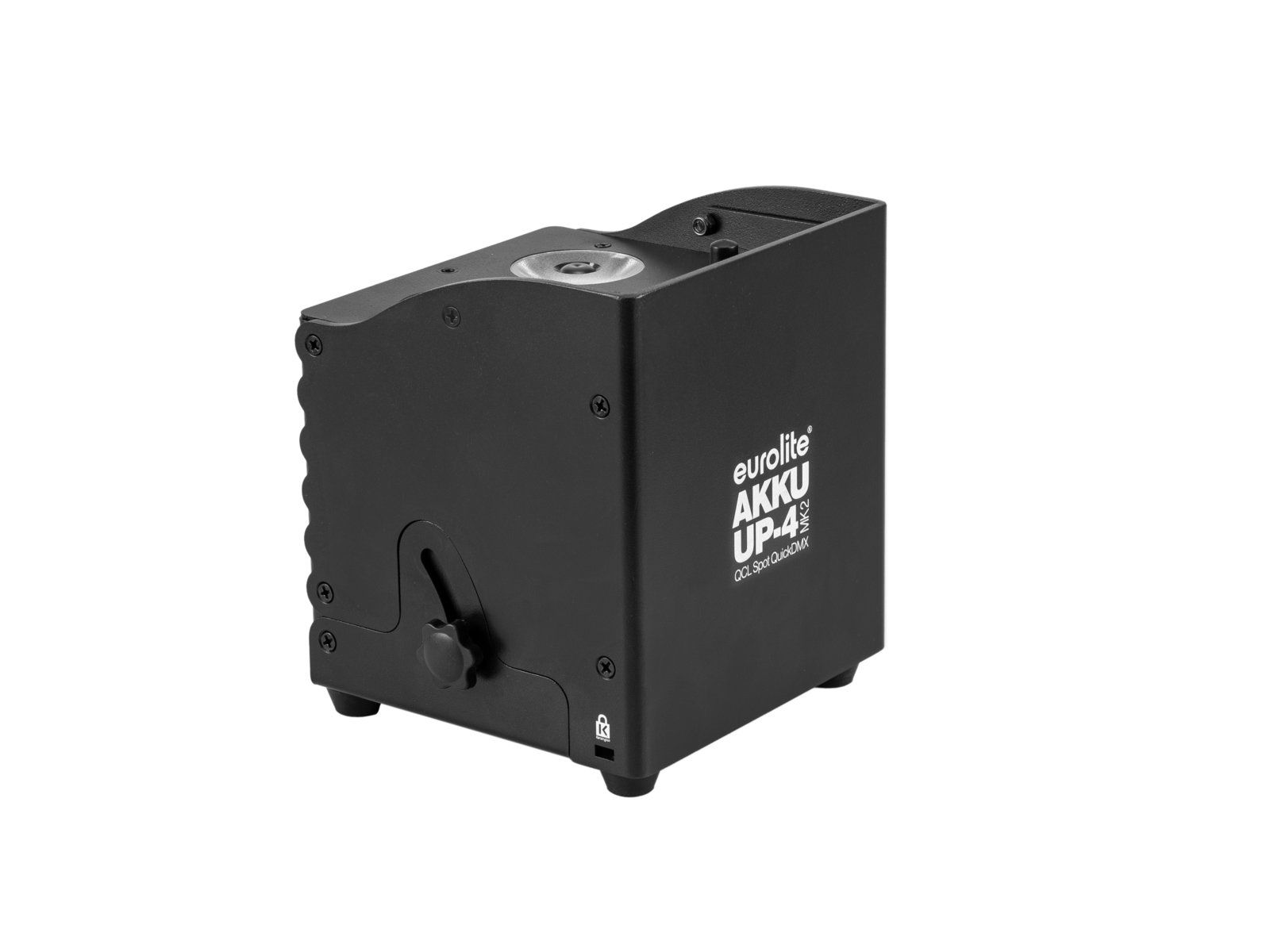

EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2
€ 290,40
?
SKU
st41700546
EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2
EUROLITE AKKU UP-4 QCL Spot QuickDMX MK2
Features
Bright battery powered LED uplight with 10 W 4in1 LEDs and QuickDMX
- Integrated QuickDMX transceiver for wireless DMX control
- Cordless, flexible and versatile
- 4 powerful LEDs 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
- Dimmer electronic; Dimmer speed (step response) adjustable; color fade adjustable speed; color change adjustable speed; white balance adjustable; color blend adjustable; frost filter; color selection manual; program selection manual; pulse-width modulation; Energy-saving mode; Emergency lighting function in case of power failure
- Multi beam effect; spot effect; wash effect; strobe effect
- 36 integrated show programs
- Direct color selection for 15 preset colors
- The device is cooled by passive convection cooling
- Control via IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM
- Up to 6 transmitters can be operated in parallel without interference
- DMX fail mode (blackout; hold; static; full on)
- With a beam angle of 7°
- With bracket for floor use
- Mains input and output for power linking up to 8 units
- For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; rental
- Silent operation
- Application possibility: Standing; suspended
- Battery operation up to 9h depending on program used
- Integrated automatic charging of the battery and status indicator
- With a KENSINGTON LOCK theft protection
- Preprogrammed in Colorchief
- Flicker-free
- QuickDMX: operating range up to 600m in the open air
- Monochrome OLED display
- Display of the remaining battery life for the current setting
- Charge status indicator
- 3 buttons on the remote control for saving your own settings
Package contents

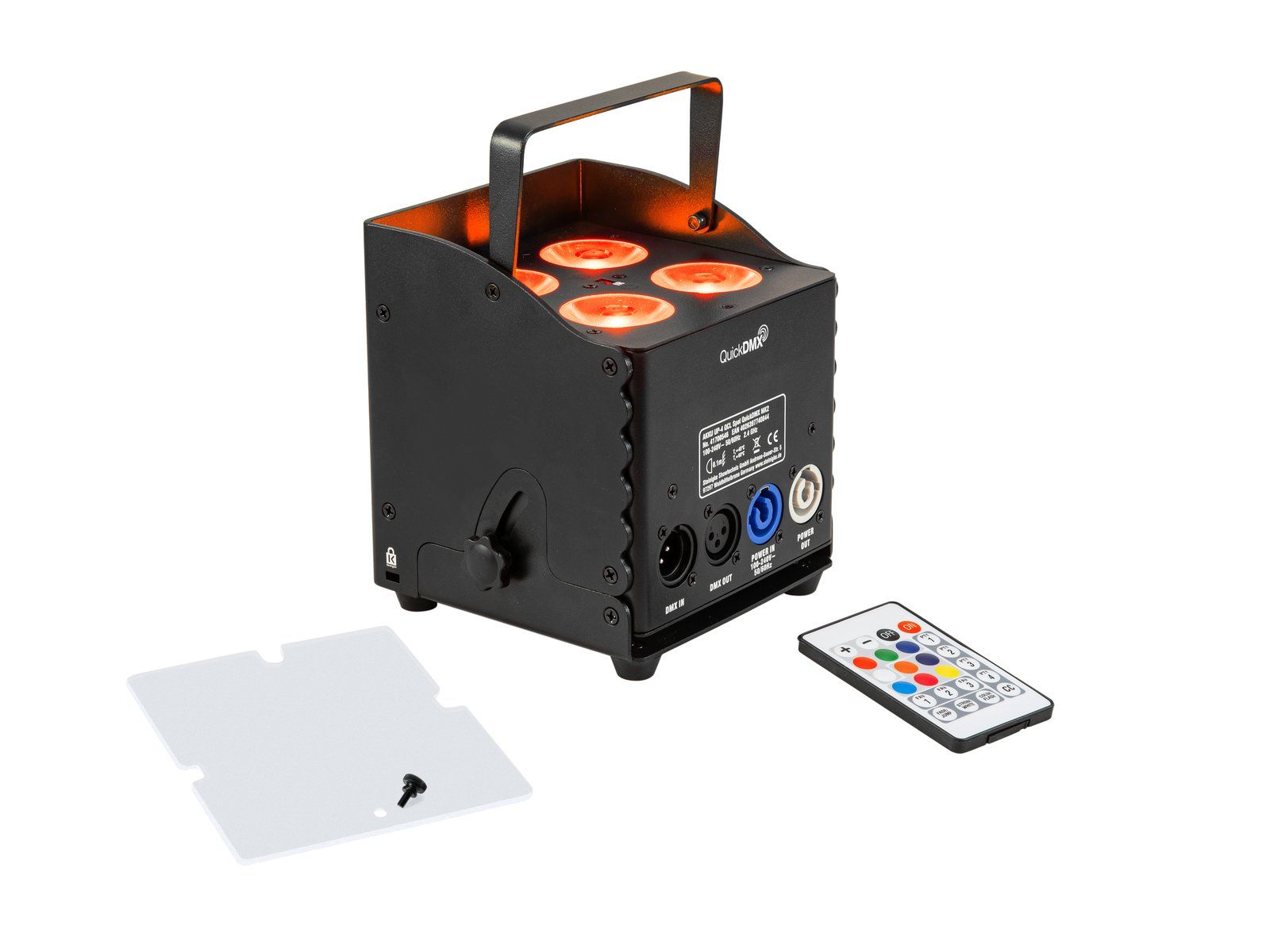

- 1 x spotlight, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x battery, 1 x frost filter, 1 x knurled screw
Technical specifications
Power supply: | 100-240 V AC, 50/60 Hz |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Cable construction: | 3 x 1,0 mm² H05VV-F |
Power output: | P-Con (gray), mounting version |
Battery pack type: | 1 x lithium ion 14,8 V, 6600 mAh, 97,68 Wh |
Battery pack: | Battery operation up to 9h depending on program used Recharging time 3h |
Lamp type: | LED lamp |
LED type: | 4 x 10 W SMD 5050 4in1 QCL RGBW (homogenous color mix) |
Flash rate: | 27 Hz |
DMX channels: | 3; 4; 6; 8; 11 |

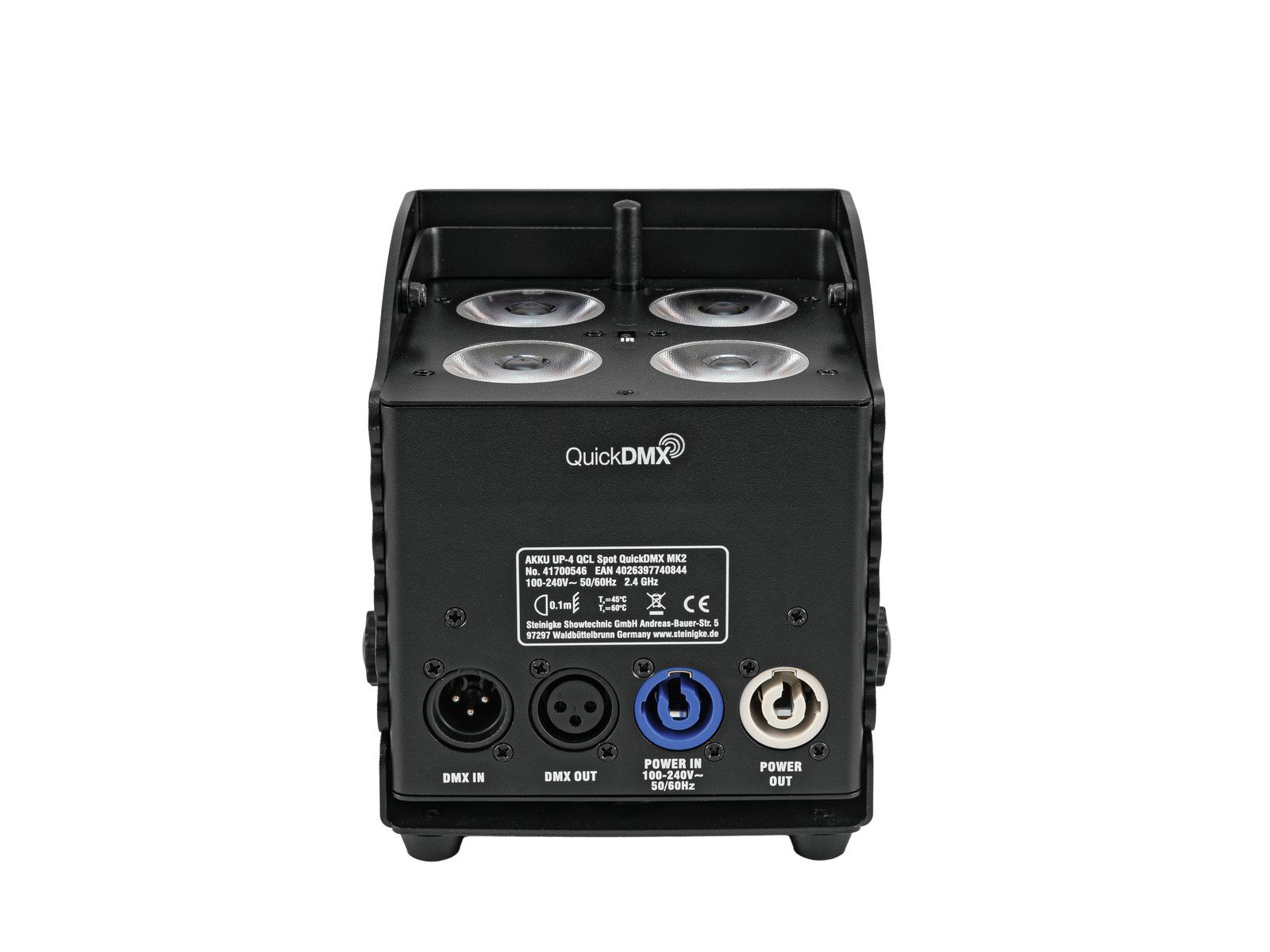

DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | IR remote control; QuickDMX; DMX; stand-alone; sound to light via microphone; wireless Master/slave function; RDM |
Preprogrammed in: | Colorchief |
Projection: | Flicker-free |
PWM frequency: | 3000 Hz |
Range: | QuickDMX: range up to 600m in the open air |
Carrier frequency: | 2,4 GHz |
Parallel mode: | Max. 6 transmitter |
Modulation: | GFSK |
DMX fail mode: | Blackout; hold; static; full on |
Beam angle: | 7° |
Beam angle (1/2 peak): | 7° Frost filter 20° |
Beam angle (1/10 peak): | 18° Frost filter 42° |
Distance to wall: | 500 mm |
Attachment system: | Bracket for floor use |

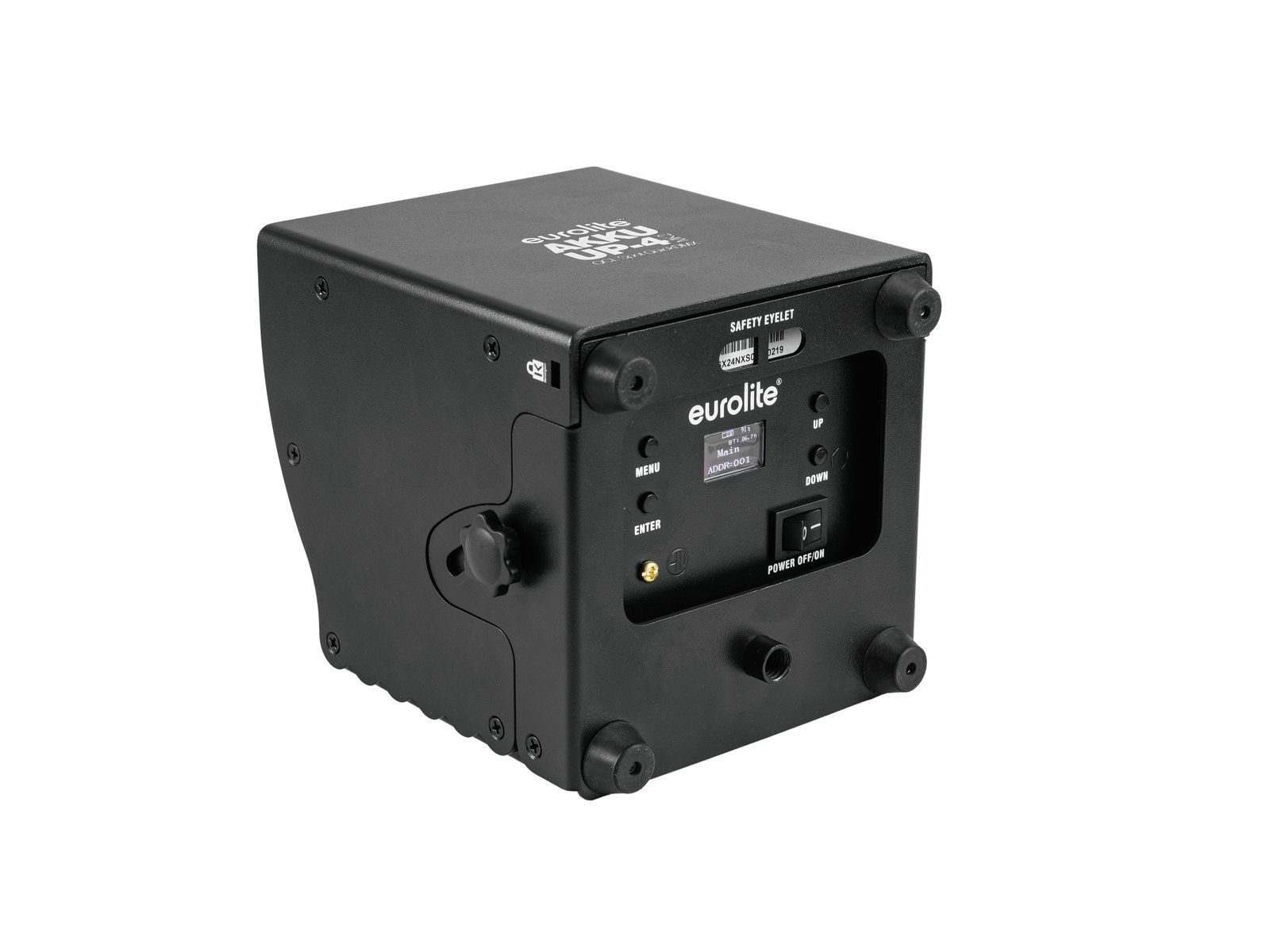

Display type: | Monochrome OLED display |
Display: | Battery runtime calculation , charge status indicator |
Material: | Metal, painted |
Theft protection: | KENSINGTON LOCK |
Dimensions: | Length: 15,4 cm Width: 13,3 cm Height: 15,8 cm |
Weight: | 2,83 kg |
Noise classification: | Class 0 (no noise at all) |
Remote control | |
Battery: | 1 x button cell 3.0 V CR2032 lithium manganese built-in |
Legal specifications | |
Special product: | Not designed for household room illumination |
Intended use: | Show effect lighting |
