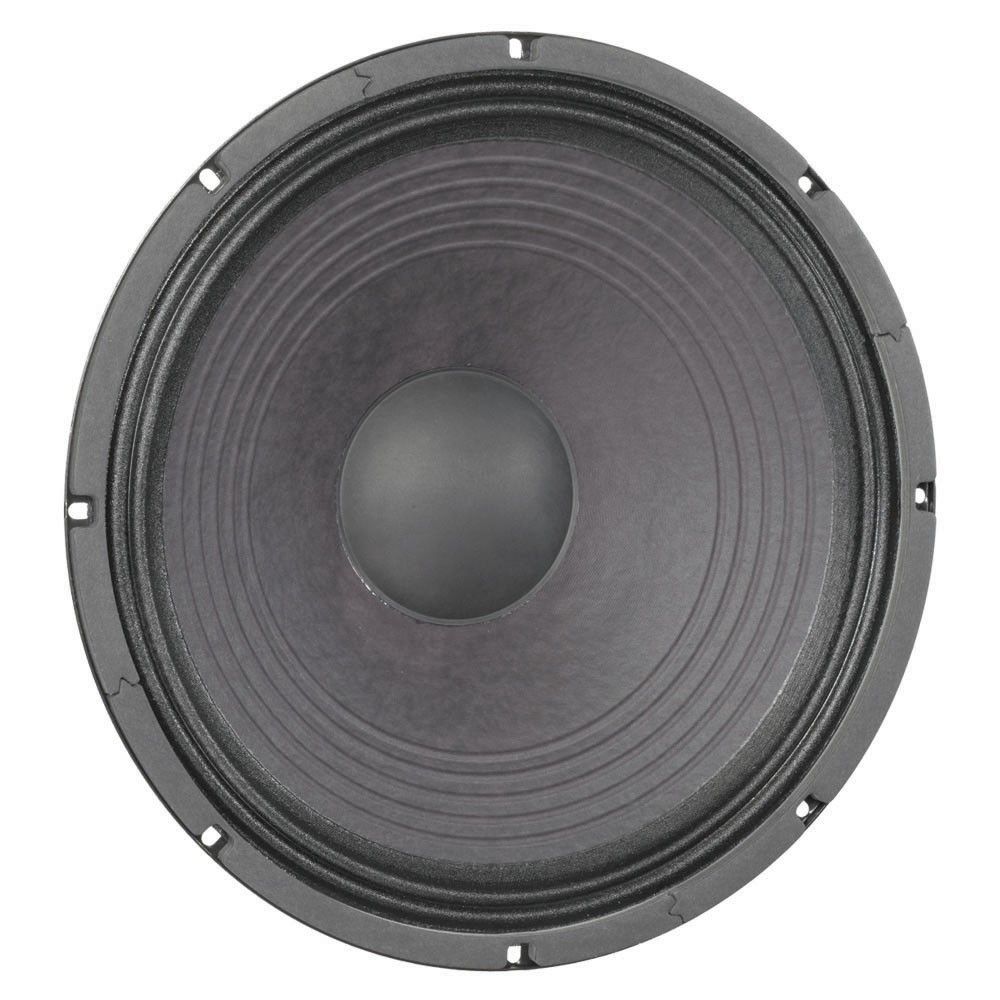

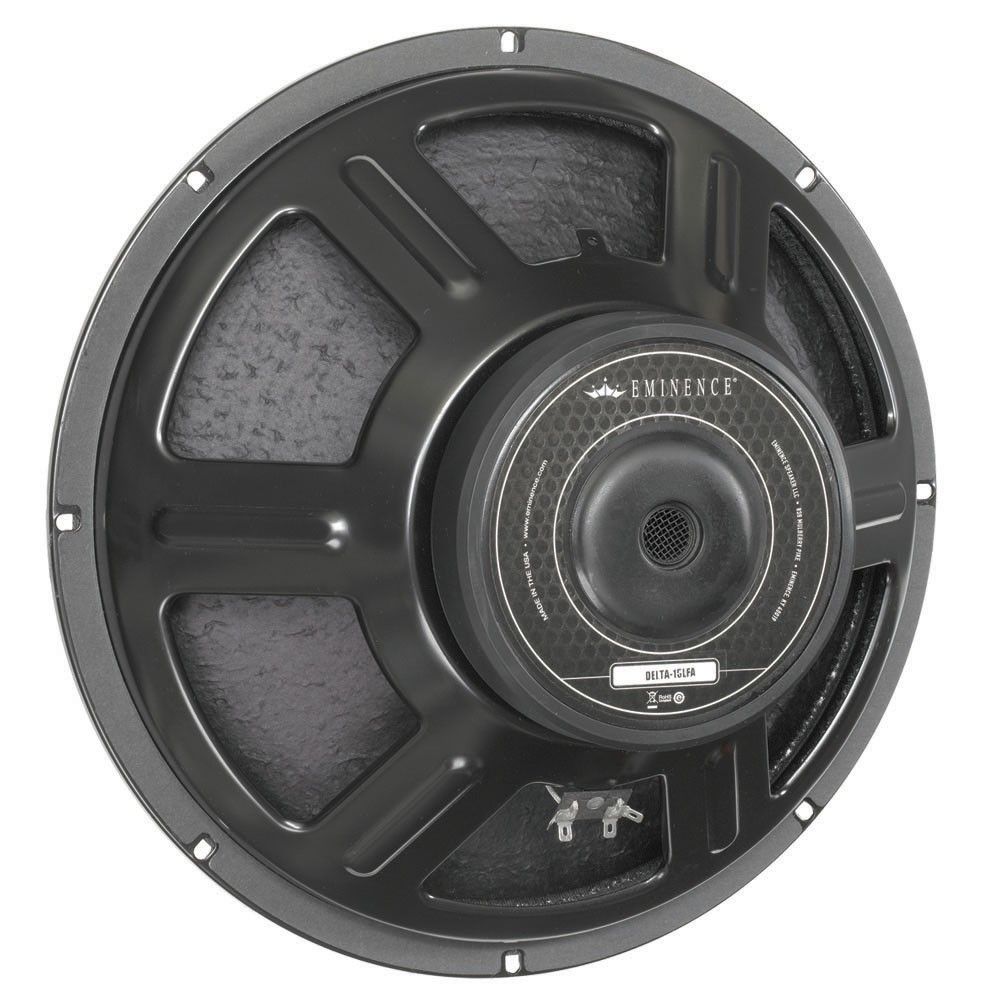

Eminence Delta 15 LFA 15" Speaker 500 W 8 Ohms
€ 222,00
?
SKU
EMN-DELTA-15LFA
Eminence Delta 15 LFA 15" Speaker 500 W 8 Ohms
Eminence Delta 15 LFA 15" Speaker 500 W 8 Ohms
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
15 "
Nominal Diameter
381 mm
Voice Coil
2.5 "
Voice Coil
63.5 mm
Overall diameter
384.8 mm
Pitch Circle Diameter
369.9 mm
Section Diameter
352.3 mm
Diameter of fixing holes
6.4 mm
Depth
160 mm
Nominal Impedance
8 Ohm(s)
Nominal Load Capacity
500 W
maximum rated load
1000 W
Sensitivity (1 W / 1 m)
96 dB
Frequency response
42 - 3200 Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
9.53 mm
Thiele & Small Parameter
Fs (Resonance Frequency)
39 Hz
Re (DC resistance)
6.11 Ohm(s)
Qms (mechanical quality)
6.3
Le (inductance of the voice coil)
1.37 mH
Qes (electrical quality)
0.52
Qts (overall quality)
0.48
Vas (equivalent volume)
241
Mms (moving mass)
75 g
BL (power factor)
14.6 T/m
Xmax (maximum displacement)
4.8 mm
Cms (elasticity of the suspension)
0.23 mm/N
Sd (membrane area)
873 cm²
Weight
6,71 kg
