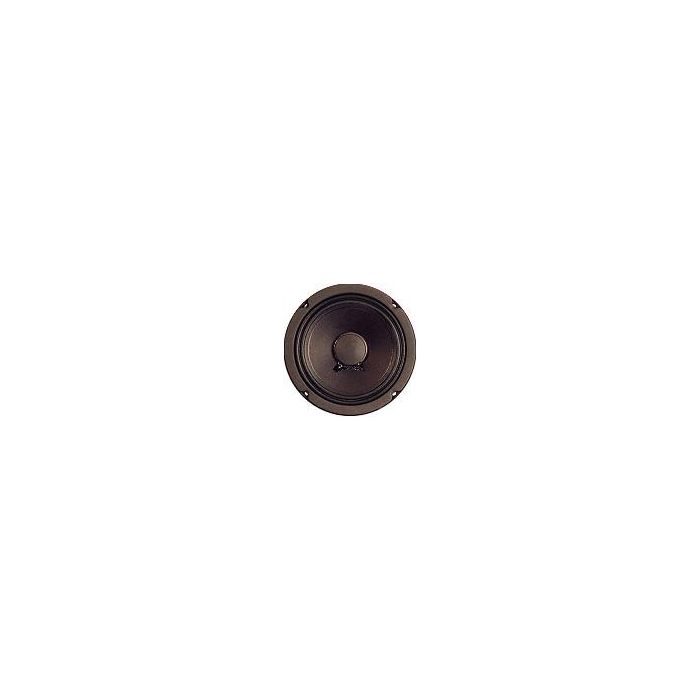

Eminence Alpha 6 C, 6" Speaker 100 W 4 Ohms
Eminence Alpha 6 C, 6" Speaker 100 W 4 Ohms
General
Product type
Loudspeaker Chassis
Type
PA
Nominal Diameter
6.5 "
Nominal Diameter
165 mm
Voice Coil
1.5 "
Voice Coil
38.1 mm
Overall diameter
167.4 mm
Pitch Circle Diameter
153.9 mm
Cut- out Measurement
144.5 mm
Diameter of fixing holes
5.8 mm
Depth
71 mm
Nominal Impedance
4 Ohm(s)
Nominal Load Capacity
100 W
maximum rated load
200 W
Sensitivity (1 W / 1 m)
93.3 dB
Frequency response
81 - 5500 @ 1m Hz
Voice Coil Material
copper
Magnet
Ferrite
Depth of the magnetic gap
6.35 mm
