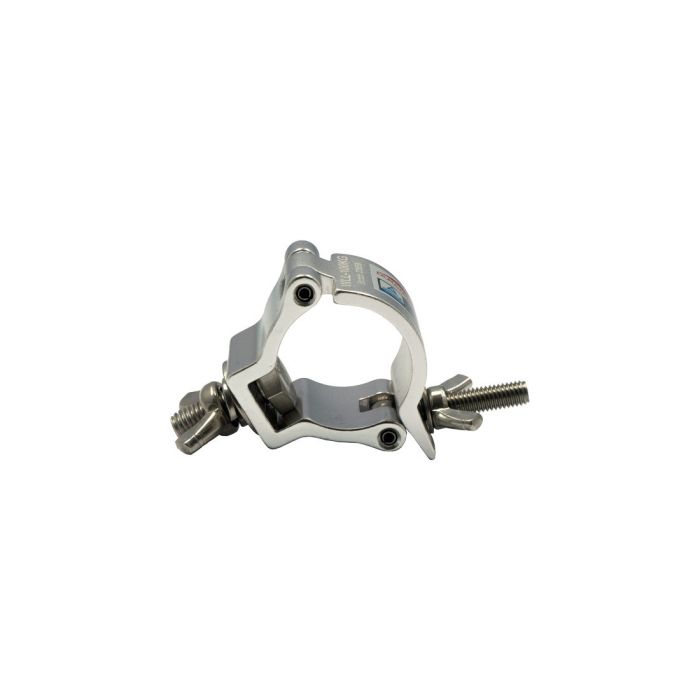

Duratrus DT BIG Jr Clamp 100kg Stainless Steel A4
Duratrus DT BIG Jr Clamp 100kg Stainless Steel A4
DT BIG Jr Clamp 100kg Stainless Steel A4
A4 marine grade stainless steel truss clamp for trusses with a main tube diameter of 38-41mm.
Designed for use in marine environments on cruise ships, in shipyards, beach clubs, indoor swimming pools or anywhere acid and seawater resistant A4 stainless steel is required.
With 100kg tensile load, this clamp is suitable for almost any application.
All DuraTruss clamps are TÜV certified.
Specifications:
- Suitable for trusses with 38-41mm diameter
- Material upper and lower part of clamp: aluminum 6061 T6, all screws, wing nuts and axes: stainless, acid and seawater resistant A4 stainless steel
- Device screw: M10 x 30
- Color: aluminum
- Max. load/SWL: 100kg
Dimensions and weight:
- Dimensions (width x height): 58.3 x 30.0 mm (without device screw)
- Weight: 0.133kg
