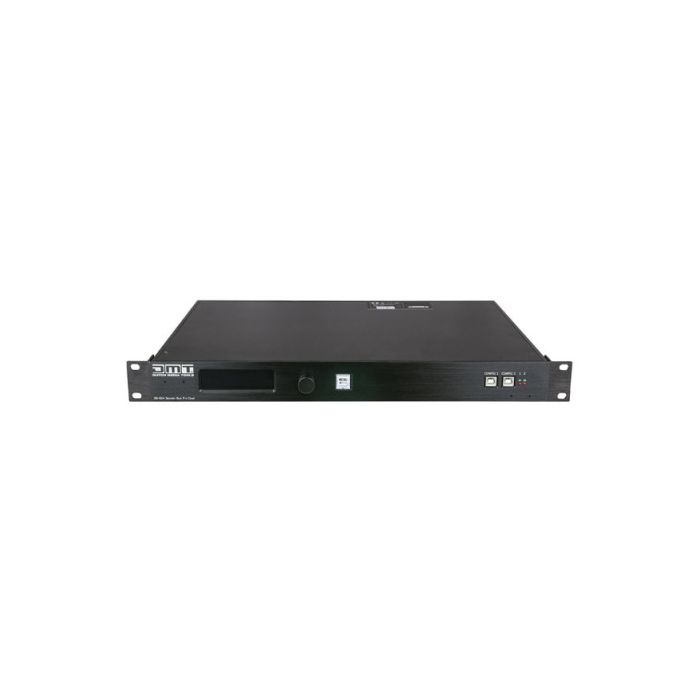

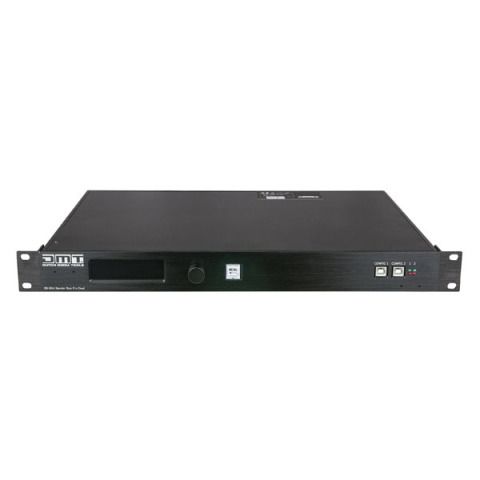

DMT SB-804 Sender Box Pro Dual Dubbele ingebouwde zenderkaart

Schrijf uw review over dit product

€ 1.309,00 € 1.081,82

SKU

101602

Details

Reviews

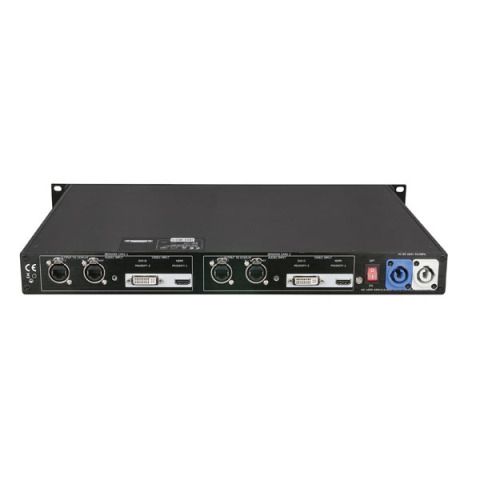

DMT SB-804 Sender Box Pro Dual Dubbele ingebouwde zenderkaart • Patch led-schermen zonder computer of Led Studio • Inclusief 802 zenderkaart • DVI-D- en HDMI-input De DMT SB-804 is de uitgebreide versie van de SB-803, met twee zenderkaarten on-board kan het grote led-scherminstallaties configureren. Het apparaat neemt een digitale video (DVI of HDMI) input en zet deze om, zodat het over een enkele CAT-5 (RJ45) kabel naar uw LED-scherm kan worden verzonden. Verbindingen worden met Neutrik Ethercon-aansluitingen gemaakt, voor een betrouwbare verbinding in elke situatie. Met de SB-804 hoeft u zich geen zorgen te maken over welke versie van Led Studio u moet gebruiken. SB-804 laat u uw led-scherm rechtstreeks patchen vanuit het interne menu, u heeft dus geen computer met Led Studio meer nodig. Specifications Type zenderkaart: 2x 802 Videoinput: 2x DVI-D + HDMI Outputs naar scherm: 2x 2 soft-patch ethercon(RJ45) aansluitingen Voedingsingang: Powercon IN/OUT Installatiepoort: USB-B, RS 232-aansluiting aan de achterkant. De RS 232 wordt gebruikt voor cascade Regeling schermhelderheid: afstelling met 16 niveaus op het frontpaneel Resoluties: 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 768, 1280 x 1024, 1366 x 768, 1440 x 900, 1440 x 1080, 1600 x 576, 1600 x 900, 1600 x 1000, 1600 x 1200, 1680 x 1050, 1728 x 1296, 1920 x 1080 Stroomverbruik: 25 watt Ingangsspanning: 85-264 volts,50-60Hz Gewicht: 4,8kg(10lbs) Afmetingen: 48cm*26.8cm*4.4cm Standaardrackformaat: 1U Koeling: actief met ingebouwde ventilator. Zenderkaart ondersteunt de volgende resoluties 60HZ output: TS802(D) ondersteuningsvermogen Nr. Max. ondersteuning Opmerking Breedte Hoogte Totaal 1 2048 320 655360 1 kabel 3 1984 320 634880 1 kabel 4 1920 320 614400 1 kabel 5 1856 352 653312 1 kabel 6 1792 352 630784 1 kabel 7 1728 352 608256 1 kabel 8 1664 384 638976 1 kabel 9 1600 384 614400 1 kabel 10 1536 416 638976 1 kabel 11 1472 416 612352 1 kabel 12 1408 448 630784 1 kabel 13 1344 480 645120 1 kabel 14 1280 512 655360 1 kabel 15 1216 512 622592 1 kabel 16 1152 512 589824 1 kabel 17 1088 512 557056 1 kabel 18 1024 640 655360 1 kabel 19 896 640 573440 1 kabel 20 832 640 532480 1 kabel 21 768 640 491520 1 kabel 22 704 640 450560 1 kabel 23 640 640 409600 1 kabel 60HZ output: TS802(D) ondersteuningsvermogen Nr. Max. ondersteuning Opmerking Breedte Hoogte Totaal 1 2048 640 1310720 2 kabels 3 1920 672 1290240 2 kabels 4 1856 704 1306624 2 kabels 5 1792 720 1290240 2 kabels 6 1728 736 1271808 2 kabels 7 1664 768 1277952 2 kabels 8 1600 800 1280000 2 kabels 9 1536 832 1277952 2 kabels 10 1472 880 1295360 2 kabels 11 1408 928 1306624 2 kabels 12 1344 960 1290240 2 kabels 13 1280 1024 1310720 2 kabels 14 1216 1024 1245184 2 kabels 15 1152 1024 1179648 2 kabels 16 1088 1024 1114112 2 kabels
