DAP NRG-8 Passieve 8” full-range luidspreker

Schrijf uw review over dit product

€ 244,00 € 201,65

SKU

D3623

Details

Reviews

DAP NRG-8 Passieve 8” full-range luidspreker

120 W RMS, 400 W piek
Luidsprekergevoeligheid 93 dB/W op 1 m
Full-range (80 - 20.000 Hz)
Luidsprekerflens met dubbele hoek (0° en 5°)
Lichtgewicht (10,3 kg)

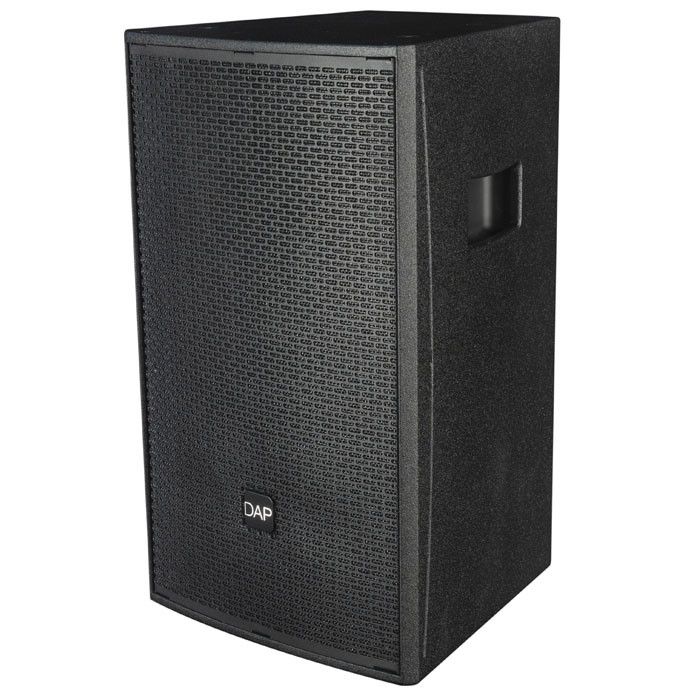

De DAP NRG-8 is een passieve full-range luidspreker met een vermogen van 400 watt piek (120 watt continu RMS). Hij heeft een 8" woofer en een 1" compressiedriver. Met een gevoeligheid van 93 dB/W/m speelt de NRG-8 comfortabel tot 114 dB met pieken tot 126 dB. De compressiedriver is gekoppeld aan een draaibare hoorn met een richtingsgevoeligheid van 90° × 60°. De woofer heeft een laag kantelpunt van 80 Hertz (-6 dB).

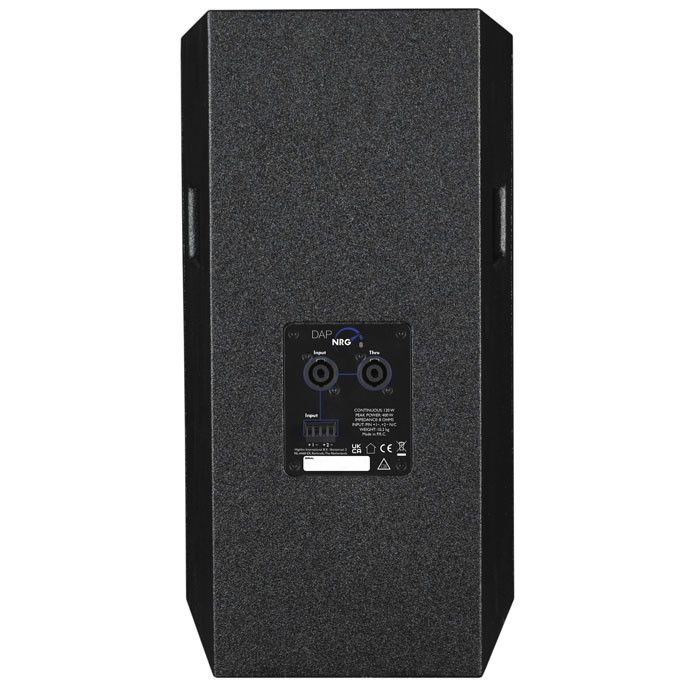

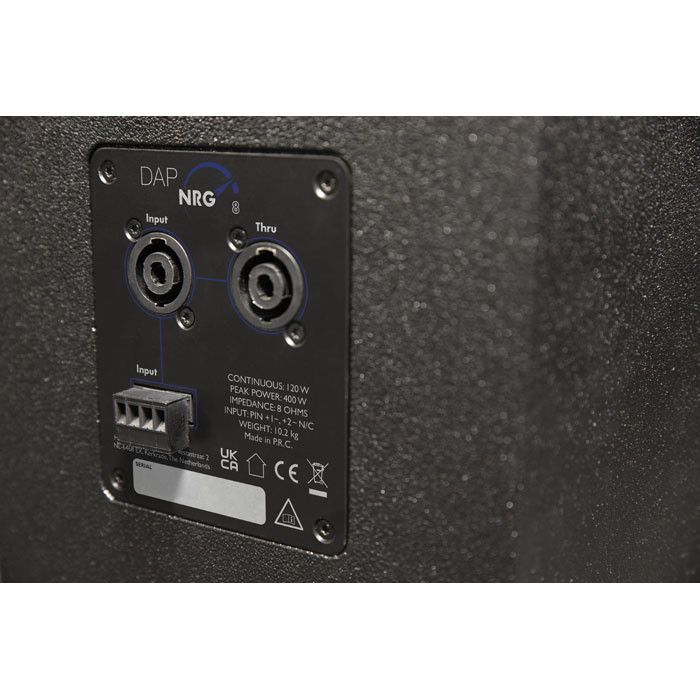

De stevige, lichtgewicht multiplex kast heeft een dubbele speakerflens (0° en 5°), zodat je de kast naar beneden kunt richten bij opstelling op een paal. Hij is voorzien van 4-polige speaker in en thru connectors en beschikt over een extra 4-polige terminal connector, die vooral handig is voor permanente installatietoepassingen. Om het beste uit de NRG-8 te halen, raden we aan een 4e orde hoogdoorlaatfilter op 60 Hertz te gebruiken en er een subwoofer uit de NRG-serie bij te gebruiken.

Inputs
RMS ingangsvermogen
120 W
Piek ingangsvermogen
400 W
Passieve ingangsconnector
Speaker Connector 4 pole , Terminal
Outputs
Passieve uitgangsconnector
Speaker Connector 4 pole
Audio Specifications
Speaker systeem
2-way
Speaker gevoeligheid (1W/1m)
93 dB
Speaker impedantie
8 Ω
Max. SPL / m
114 dB
Frequentie respons (-6dB) minimaal
80 Hz
Frequentie respons (-6dB) maximaal
20000 Hz
Laag driver diameter
8 "
Laag driver spreekspoel
1.5 "
Laag driver magneet type
Ferrite
Hoog driver diameter
1 "
Hoog driver spreekspoel
1.4 "
Hoog driver magneet type
Ferrite
Afstraling horizontaal
90°
Afstraling verticaal
60°
Mechanical Specifications
Hoogte (mm)
475 mm
Breedte (mm)
275 mm
Diepte (mm)
280 mm
Materiaal
Plywood
Gewicht
10.3 kg
IP waarde
IP20 (indoor use only)
Kleur
Black
Afwerking
Painted

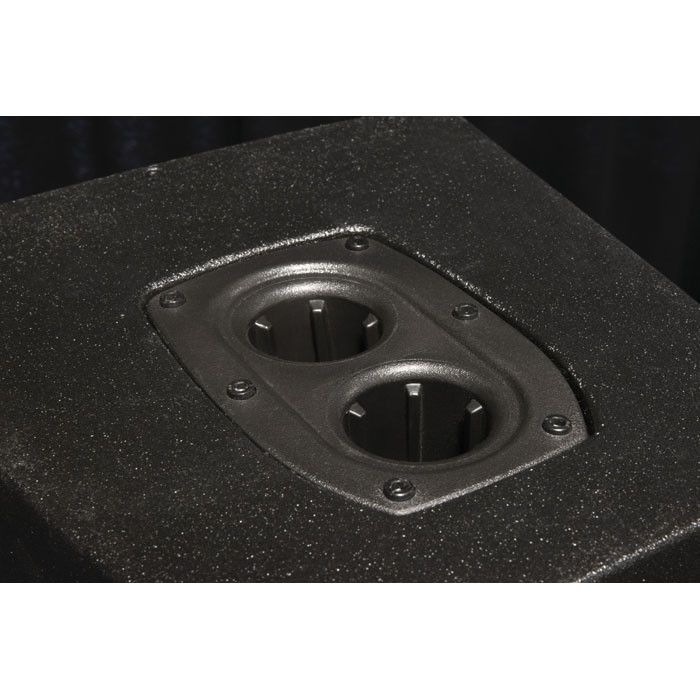

Luidspreker adapter diameter
35 mm
Product Properties
Inzetbaar als monitor/wedge
No

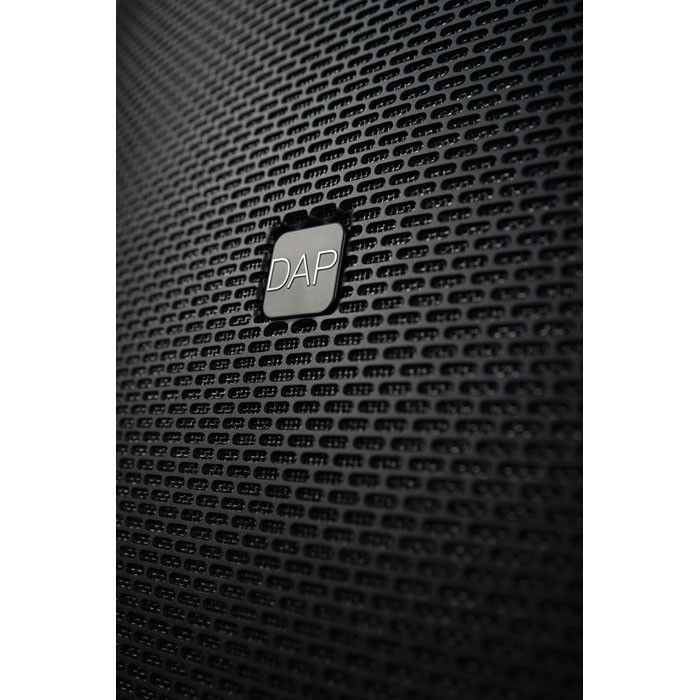

Speaker grille materiaal
Steel
Speaker handvaten posities
Left side, Right side

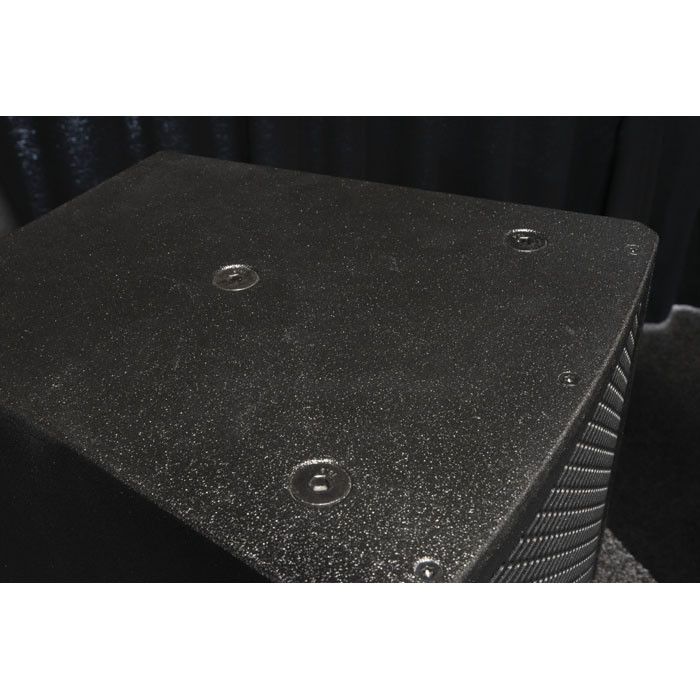

Rigging
Vliegoog draad
M8
Thermal Specifications
Maximale omgevingstemperatuur
40 °C
