DAP NRG-12 Passieve 12” full-range luidspreker

Schrijf uw review over dit product

€ 318,99 € 263,63

SKU

D3625

Details

Reviews

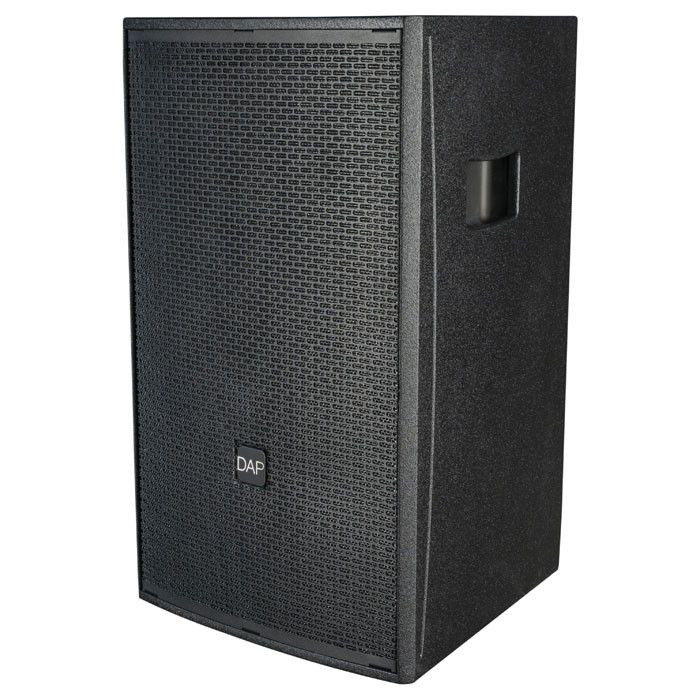

DAP NRG-12 Passieve 12” full-range luidspreker
50 W RMS, 550 W piek
Luidsprekergevoeligheid 96 dB/W op 1 m
Full-range (60 - 20.000 Hz)
Luidsprekerflens met dubbele hoek (0° en 5°)
Lichtgewicht (14,6 kg)
De DAP NRG-12 is een passieve full-range luidspreker met een vermogen van 550 watt piek (150 watt continu RMS). Hij heeft een 12" woofer en een 1" compressiedriver. Met een gevoeligheid van 96 dB/W/m speelt de NRG-12 comfortabel tot 117 dB met pieken tot 129 dB. De compressiedriver is gekoppeld aan een draaibare hoorn met een richtingsgevoeligheid van 90° × 60°. De woofer heeft een laag kantelpunt van 60 Hertz (-6 dB).

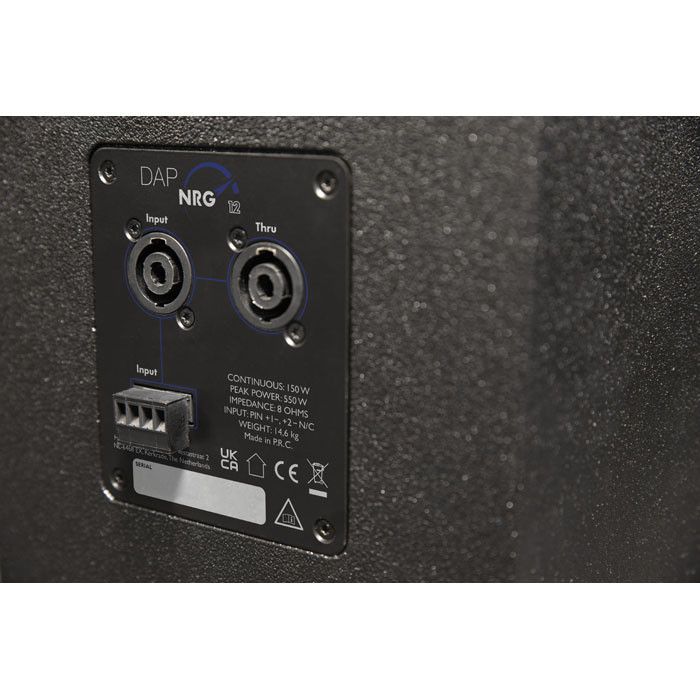

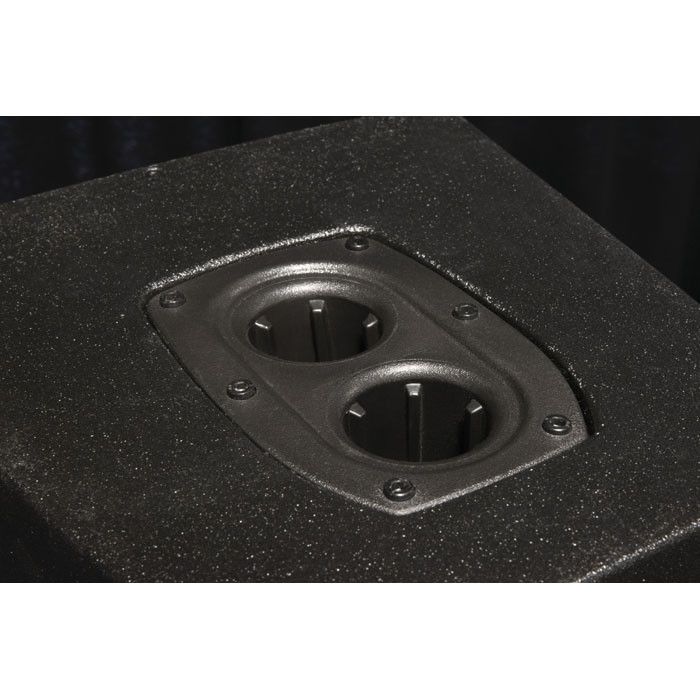

De stevige, lichtgewicht multiplex kast heeft een dubbele speakerflens (0° en 5°), zodat je de kast naar beneden kunt richten bij opstelling op een paal. Hij is voorzien van 4-polige speaker in en thru connectors en beschikt over een extra 4-polige terminal connector, die vooral handig is voor permanente installatietoepassingen. Om het beste uit de NRG-12 te halen, raden we aan een 4e orde hoogdoorlaatfilter op 50 Hertz te gebruiken en er een subwoofer uit de NRG-serie bij te gebruiken.
Outputs
Passieve uitgangsconnector
Speaker Connector 4 pole
Audio Specifications
Speaker systeem
2-way
Speaker gevoeligheid (1W/1m)
96 dB
Speaker impedantie
8 Ω
Max. SPL / m
117 dB
Frequentie respons (-6dB) minimaal
60 Hz
Frequentie respons (-6dB) maximaal
20000 Hz
Laag driver diameter
12 "
Laag driver spreekspoel
2 "
Laag driver magneet type
Ferrite
Hoog driver diameter
1 "
Hoog driver spreekspoel
1.4 "
Hoog driver magneet type
Ferrite
Afstraling horizontaal
90°
Afstraling verticaal
60°
Mechanical Specifications
Hoogte (mm)
572 mm
Breedte (mm)
345 mm
Diepte (mm)
360 mm
Materiaal
Plywood
Gewicht
14.6 kg
IP waarde
IP20 (indoor use only)
Kleur
Black
Afwerking
Painted
Luidspreker adapter diameter
35 mm
Product Properties
Inzetbaar als monitor/wedge
No
Speaker grille materiaal
Steel
Speaker handvaten posities
Left side, Right side
Rigging
Vliegoog draad
M8
Thermal Specifications
Maximale omgevingstemperatuur
40 °C
