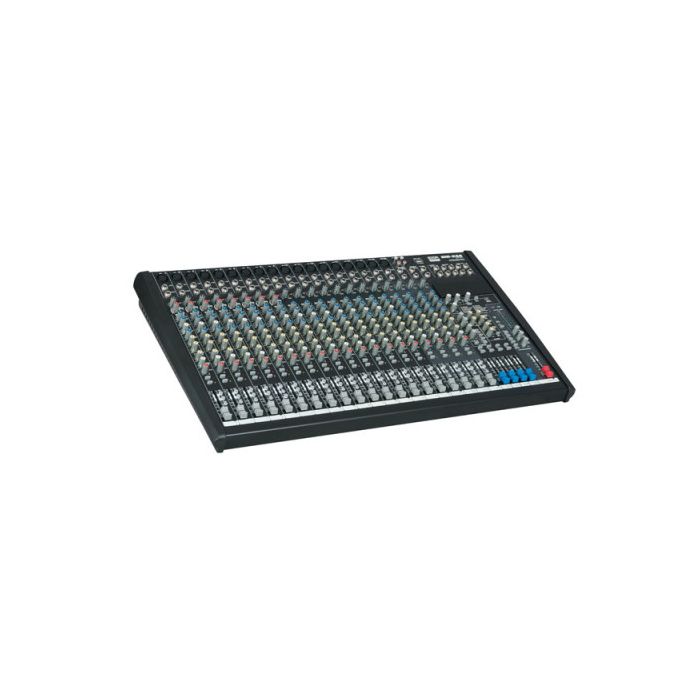

DAP GIG-244CFX 24 Channel live mixer incl. dynamics & DSP

DAP GIG-244CFX 24 Channel live mixer incl. dynamics & DSP

Name: DAP GIG-244CFX 24 Channel live mixer incl. dynamics & DSP
SKU: D2288
Price: 612.998101 EUR
Availability: InStock

Schrijf uw review over dit product

€ 613,00 € 506,61

SKU

D2288

DAP GIG-244CFX 24 Channel live mixer incl. dynamics & DSP

Details

Reviews

DAP GIG-244CFX 24 Channel live mixer incl. dynamics & DSP

• Mic-voorversterkers met extreem weinig ruis en +48 V fantoomvoeding
• Compressieregeling op eerste acht MIC-kanalen
• 3-bands EQ met sweepable MID en piekleds op elk MIC-kanaal. 4-bands EQ en piekleds op stereokanalen.
• Ingebouwd 24-bit DSP-effect met 100 voorinstellingen.
• Ingebouwde USB-module voor afspelen en opnemen

De GIG-244 CFX Mixing Console zit boordevol functies die andere consoles van dit formaat niet bevatten: 14 mono- (uitgerust met microfoonvoorversterkers met extreem weinig ruis en +48 volt fantoomvoeding) en 4 stereo-inputkanalen. Elk kanaal is uitgerust met 3-bands equalizer met regeling voor hoog, midden en laag, evenals 3 AUX-regelingen, ingebouwd 24-bit DSP-effect met 100 voorinstellingen, zeer nauwkeurige staafdiagrammeters met 12 segmenten en tweesporeningangen toewijsbaar aan de hoofdmix, controlekamer/koptelefoon of groepsuitgangen.

Specifications

Monokanalen
Microfooningang: XLR-gebalanceerd
Lijningang: 1/4– TRS gebalanceerd
Frequentierespons: 10 Hz ~ 55 kHz, +/- 3 dB
Vervorming (THD=N): <0,03% @ 0 dB, 22 Hz ~ 22 kHz
Versterkingsbereik: 50 dB
Gevoeligheid ingangen: -35 dBu ~ +15 dBu
LOW cut: 100 Hz
SNR <-100 dBr
Fantoomvoeding: +48 V schakelbaar

Stereokanalen
Microfooningang: XLR-gebalanceerd
Lijningang: 1/4– TRS/RCA niet-gebalanceerd
Frequentierespons: 10 Hz ~ 55 kHz, +/- 3 dB
Vervorming (THD=N): <0,03% @ 0 dB, 22 Hz ~ 22 kHz
Versterkingsbereik: 50 dB
Gevoeligheid ingangen: -20 dBu ~ +20 dBu
LOW cut: 75 Hz
SNR <-100 dBr
Fantoomvoeding: +48 V schakelbaar

Kanaal-EQ mono
Hoog: +/- 15 dB @ 12 kHz, Shelving
Mid: +/- 15dB @ 100-8 kHz, Sweepable
Laag: +/- 15dB @ 80Hz, Shelving
Kanaal-EQ stereo
Hoog: +/- 15 dB @ 12 kHz, Shelving
Mid: +/- 15 dB @ 3 kHz
Mid: +/- 15 dB @ 500 Hz
Laag: +/- 15dB @ 80Hz, Shelving

Impedanties
Microfooningang: 1,8K Ohm
Andere ingangen: >10K Ohm
Tape-uitgangen: 1 K Ohm
Alle andere uitgangen: 120 Ohm

USB
Opnemen: 1 stereopaar (schakelbaar tussen GRP 1-2 en MAIN MIX)
Afspelen: 1 stereopaar (schakelbaar tussen kanalen 23-24 en MAIN MIX)

Voeding: AC 100- 240 V 50 Hz/60 Hz
Stroomverbruik: 60 Watt
Afmetingen: 753 x 435 x 85 mm
Gewicht: 9,35 kg
