Dap DCP-26 MKII Digital Cross Over 2-in, 6-out

Dap DCP-26 MKII Digital Cross Over 2-in, 6-out

Name: Dap DCP-26 MKII Digital Cross Over 2-in, 6-out
SKU: D2084
Price: 232.005401 EUR
Availability: InStock

Schrijf uw review over dit product

€ 232,01 € 191,74

SKU

D2084

Dap DCP-26 MKII Digital Cross Over 2-in, 6-out

Details

Reviews

Dap DCP-26 MKII Digital Cross Over 2-in, 6-out

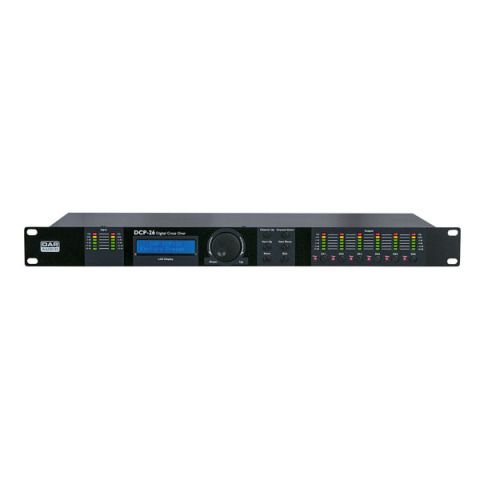

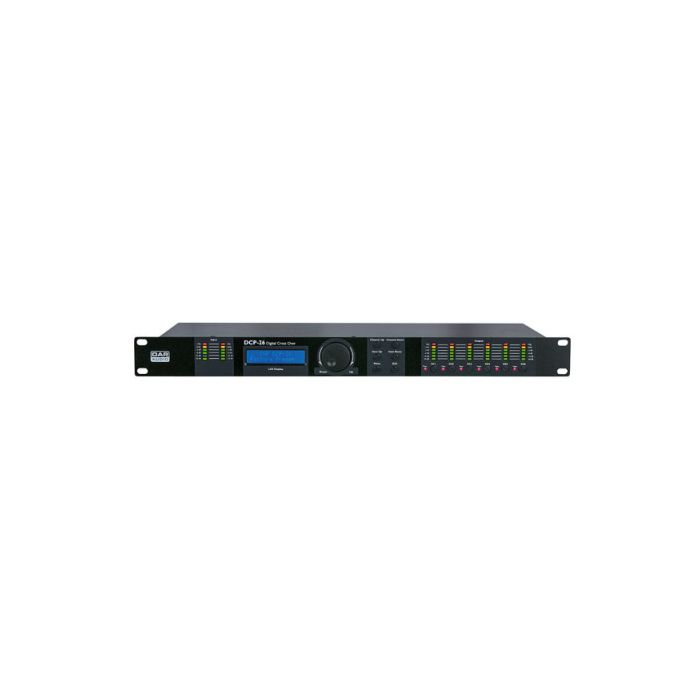

De DCP-26 MKII is een zeer complete digitale luidsprekersmanager met 2 inputs en 6 outputs. Zelfs als u geen geluidstechnicus bent kunt u dit apparaat eenvoudig opstellen met de meegeleverde software die via de USB-interface werkt. Het apparaat beschikt over 5 PEQ´s bij de inganen en uitgangen en verschillende soorten filters voor elk soort luidspreker of luidsprekersysteem. Verder beschikt het apparaat over alle benodigde functies zoals faseomkering, limiters en delays. Duidelijke ingangs- en uitgangsmeters, in combinatie met het LCD-display, bieden alle benodigde informatie in één overzicht. De DCP-26 MKII is geschikt voor PA, line-array-opstellingen en audio-installaties, evenals netwerken voor geluidsdistributie.

Specifications

DSP:
Bemonsteringsfrequentie: 48 kHz, 64 bits NXP (Philips) DSP

5-bands input-EQ:
EQ-selecties: Allpass, bell, high shelf,
low shelf, notch
Selectie EQ-frequentie: 20 tot 20000 Hz in
stappen van 1 Hz op alle EQ's

Vertraging:
Uitgangsvertraging: Kanaal afhankelijk van 0 tot 8 mS

5-bands output-EQ:
EQ-selectie: hetzelfde als input
Type: low shelf 6, low shelf 12,
high shelf 6 en high shelf 12

Crossovers:
Types: Linkwitz Riley, Bessel en
Butterworth
Gradiënten: 6, 12, 18, 24 dB/octaaf
Crossover-frequenties: 20 tot 20.000 Hz in
octaafstappen van 1 Hz

Limiter:
Grenswaardepunten: -20 tot +20 dBu in stappen van 0,5 dB
Attack-tijd: limiter zonder attack-tijd
Release-tijden: 1 = kortst, 100 = eindeloos lang,
in stappen van 1.

Diversen:
Geheugenplaatsen: 50 voorinstellingen
Mute: alle outputkanalen kunnen
individueel gedempt worden
Display: 2 x 16 tekens (puntmatrix)
Vertraging: 1,27 mS
USB-interface: Achterkant
Voeding: 6V DC
Stroomverbruik: 4 Watt
Stroomschakelaar: achter
Afmetingen: 483 x 155 x 44 mm

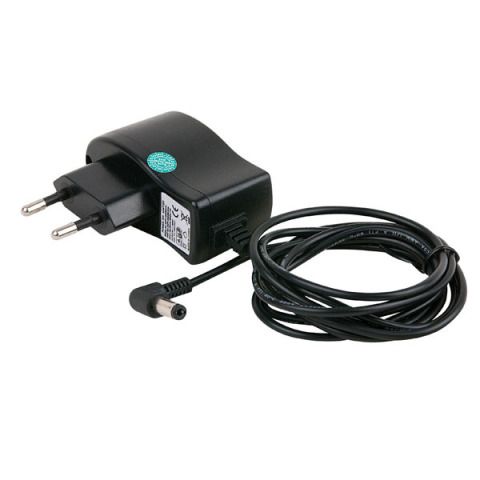

Accessoires: Voedingsadapter, USB-kabel, DSP-software
