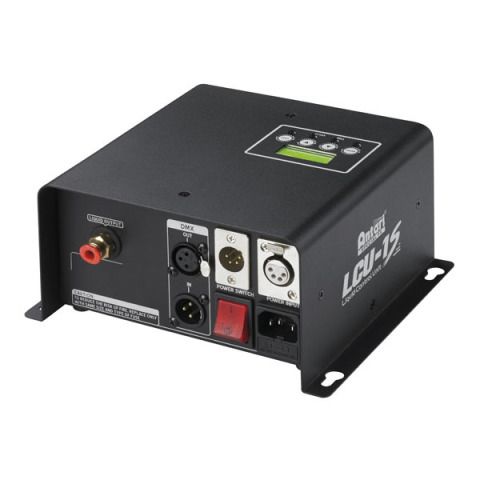

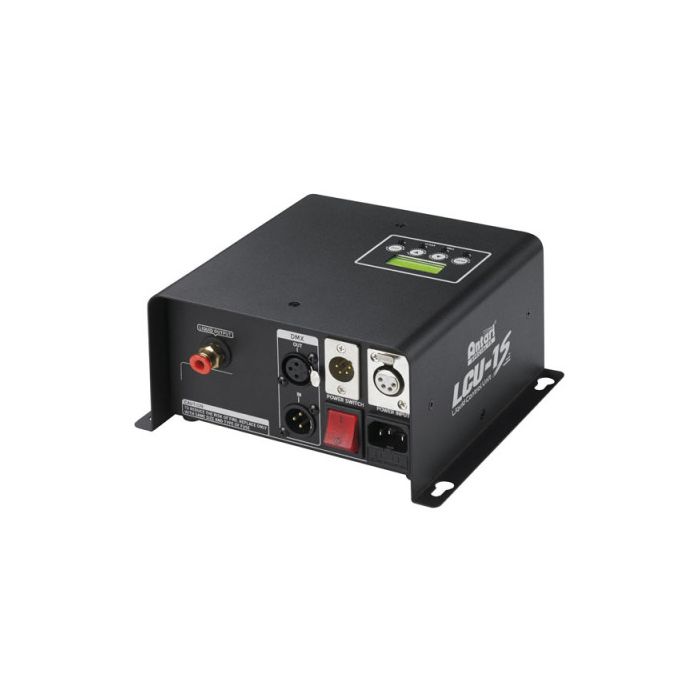

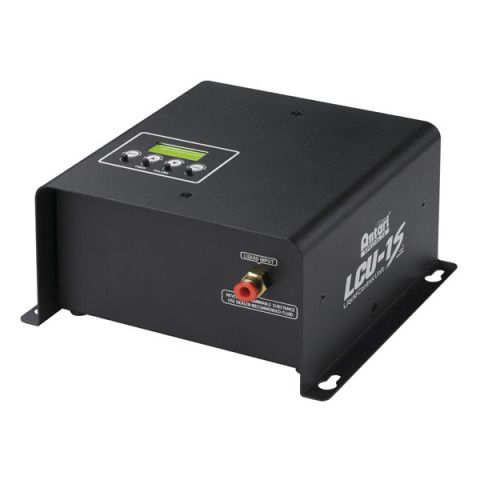

Antari LCU-1S Liquid Control Unit

Antari LCU-1S Liquid Control Unit

The latest LCU-1S comes with a LCD panel which allows users to read and make setting with ease.
The flow rate data of Z-1200II, S-100X, S-200X and SW-250 have been pre-programmed into LCU-1S and enables users to operate directly to supply fluid to the machine. Optional –Null" mode offers users the capability to operate with any other machines.
LCU-1S can supply fluid to 35 meters long or 25 meters high at maximum and is designed to meet most remote fluid supply application.
Specifications

Power input: 230VAC, 50/60Hz
Power Consumption: 40W
Fluid Consumption: 400 ml／min (100% output)
Fluid: Antari Liquid
Control: Volume and Timer Mode
DMX 512
Cable Remote
DMX Channels: 1 Channels

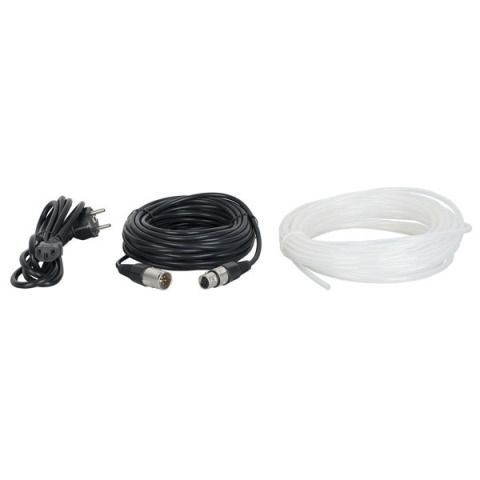

Accessories Included: N/A
Dimensions: 203 x 179 x 96 mm
Weight: 3.3 Kg
